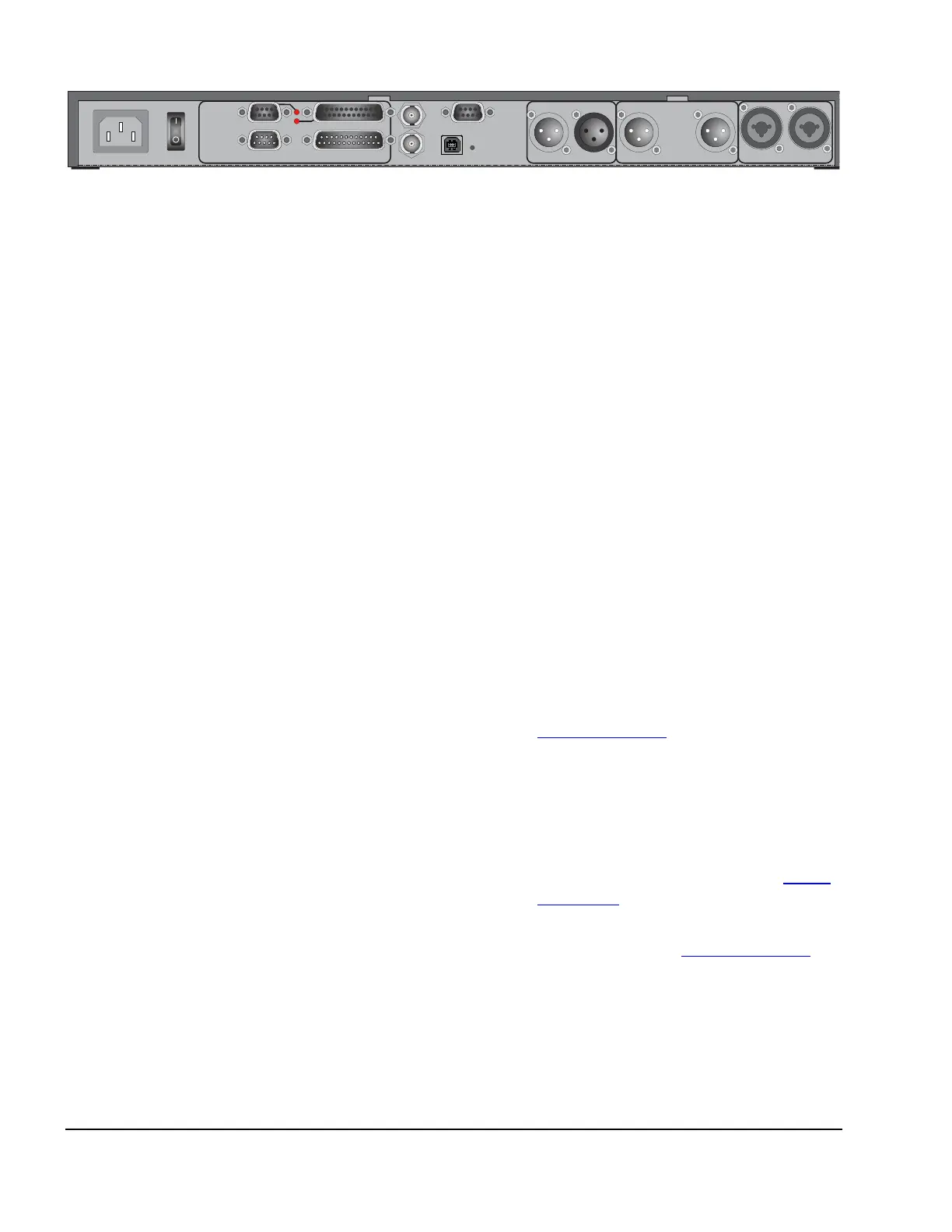

Appendix B BD600E+ Extended Remote Control
Page 36 Appendix B Extended Remote Control BD600+ Profanity Delay
Document Version 2.3
DELAYED RS232
INPUT
OUTPUT
REMOTE CONTROL
ACTIVITY
WORD
CLOCK
IN
OUT
POWER
RS232
CONTROL
100-240V AC 50-60Hz 45W
REMOVE POWER BEFORE OPENING.
NO USER-SERVICEABLE PARTS IN SIDE.
OUT - AES/EBU - IN CH2 - ANALOG OUT - CH1 CH2 - ANALOG IN - CH1
USB
The BD600E+ with the Extended Remote Control feature has 16 configurable parallel inputs and 16
configurable parallel outputs, as well as an RS232 (serial) delay input and output.
Extended Remote Connectors
The extended remote connectors are DB25 for parallel input and output, and DB9 for serial input and
output. See Appendix E for connection and electrical information.
Parallel Outputs
There are 16 identical parallel outputs. These may be used as status (tally) outputs to show the opera-
tional state of the unit, or they may be fed with a version of the corresponding input delayed by the
current delay amount.
These outputs can be configured by using normal configuration mode operations to get to 6EXT and
then selecting OUT1 or OUT2 etc as appropriate. The outputs may be activated as below:
OFF never
ON always (useful for testing)
DLIN a delayed version of the corresponding
parallel input
BYP when bypassed
CNF during configuration mode
WFS when WAIT FOR SAFE is active
WAE when WAIT AND EXIT is active
REB when REBUILD-ing
RMP0 when RAMP-ing TO ZERO
SAFE when the delay is greater than the con-
figured safe time
SNEZ when SNEEZE is active
DUMP when the DUMP button is pressed
LIVE when the delay is at 0.00
STAT when the delay value is stable and non-
zero
PANC when in panic mode
FULL when the delay is at maximum
MUTE when the output is muted
SBRK during a Station Break Insert operation
(see page 35)
TIM1 when the delay is greater than the con-
figured TIM1 value
TIM2 when the delay is greater than the con-
figured TIM2 value
INS when an Insert operation is active (see
Insert Operations below)
JBAD the selected jingle is bad or absent or
the card is not present. Also activated
when the jingle is in use or being pre-
pared for use.
>MAX the current delay is greater than the
maximum configured value (see Insert
Operations below)
TOP the current delay is at the maximum al-
lowable value (see Insert Operations be-
low)
UNLK when the digital audio input is unlocked
