Appendix A BD600+ Basic Remote Control
Page 34 Appendix A Basic Remote Control BD600+ Profanity Delay
Document Version 2.3
A
U
X
1
A
U
X
2
A
U
X
3
A
U
X
4
G
N
D
RLA1 RLA2
REMOTE CONTROL
100mA max
for USB
Lamp only
WORD
CLOCK
IN
OUT
POWER
RS232 CONTROL
USB
100-240V AC 50-60Hz 45W
REMOVE POWER BEFORE OPENIN G.
NO USER-SERVICEABLE PARTS INS IDE.
OUT - AES/EBU - IN CH2 - ANALOG OUT - CH1 CH2 - ANALOG IN - CH1
The BD600+ with the Basic Remote Control feature has four configurable inputs and two configurable
multi-pole relay outputs.

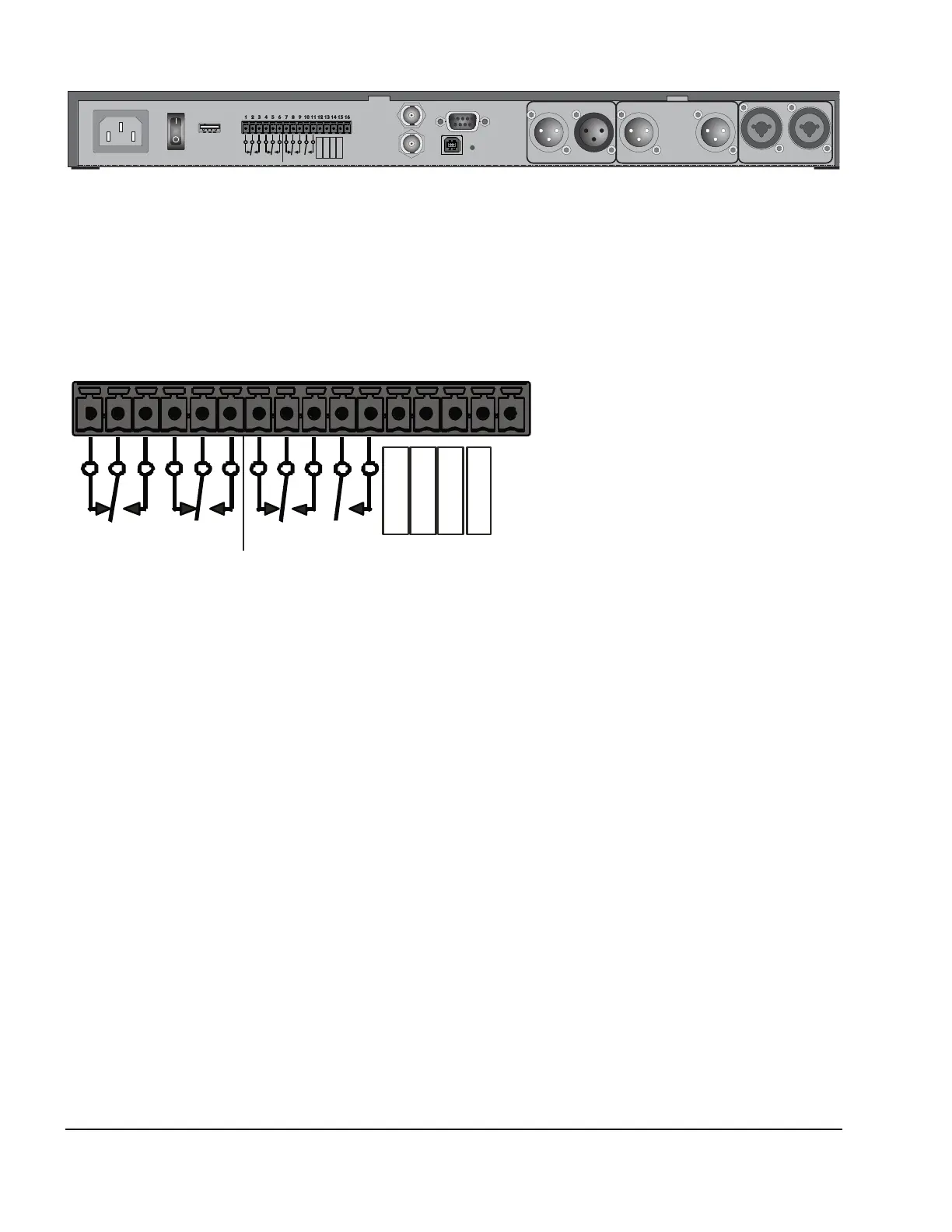

Basic Remote Connector
The basic remote control connector is a 16-pin Euroblock socket on the rear panel. A range of plug-in
connectors is available to facilitate wiring. A terminal block type connector is supplied with the
BD600+.
Outputs
There are two outputs available:
RLA1 – this is a two pole changeover (DPDT) relay rated at 1A 30V DC or 125V AC.
RLA2 – this is a two pole relay with one changeover contact and one normally open contact, both rated
at 1A 30V DC or 125V AC. Note that RLA2 is driven in common with the DUMP light, so if its
source is changed from the default SAFE value, the DUMP light will not operate as described in this
manual.
These outputs can be configured by using normal configuration mode operations to get to 5REM and
then selecting RLA1 or RLA2 as appropriate. The relays may be activated as below:
OFF never
ON always (useful for testing)
BYP when bypassed
CNF during configuration mode
WFS when WAIT FOR SAFE is active
WAE when WAIT AND EXIT is active
REB when REBUILD-ing
RMP0 when RAMP-ing TO ZERO
SAFE when the delay is greater than the con-
figured safe time
SNEZ when SNEEZE is active
DUMP when the DUMP button is pressed
LIVE when the delay is at 0.00
STAT when the delay value is stable and non-
zero
PANC when in panic mode
FULL when the delay is at maximum
MUTE when the output is muted
SBRK during a Station Break Insert operation
(see below)
The default value for RLA1 is DUMP and for RLA2 is SAFE.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
U
X
1
A
U
X
2
A
U
X
3
A
U
X
4
G
N
D
RLA1 RLA2
REMOTE CONTROL
