00137589.DOCX, Version 1.0

28/40

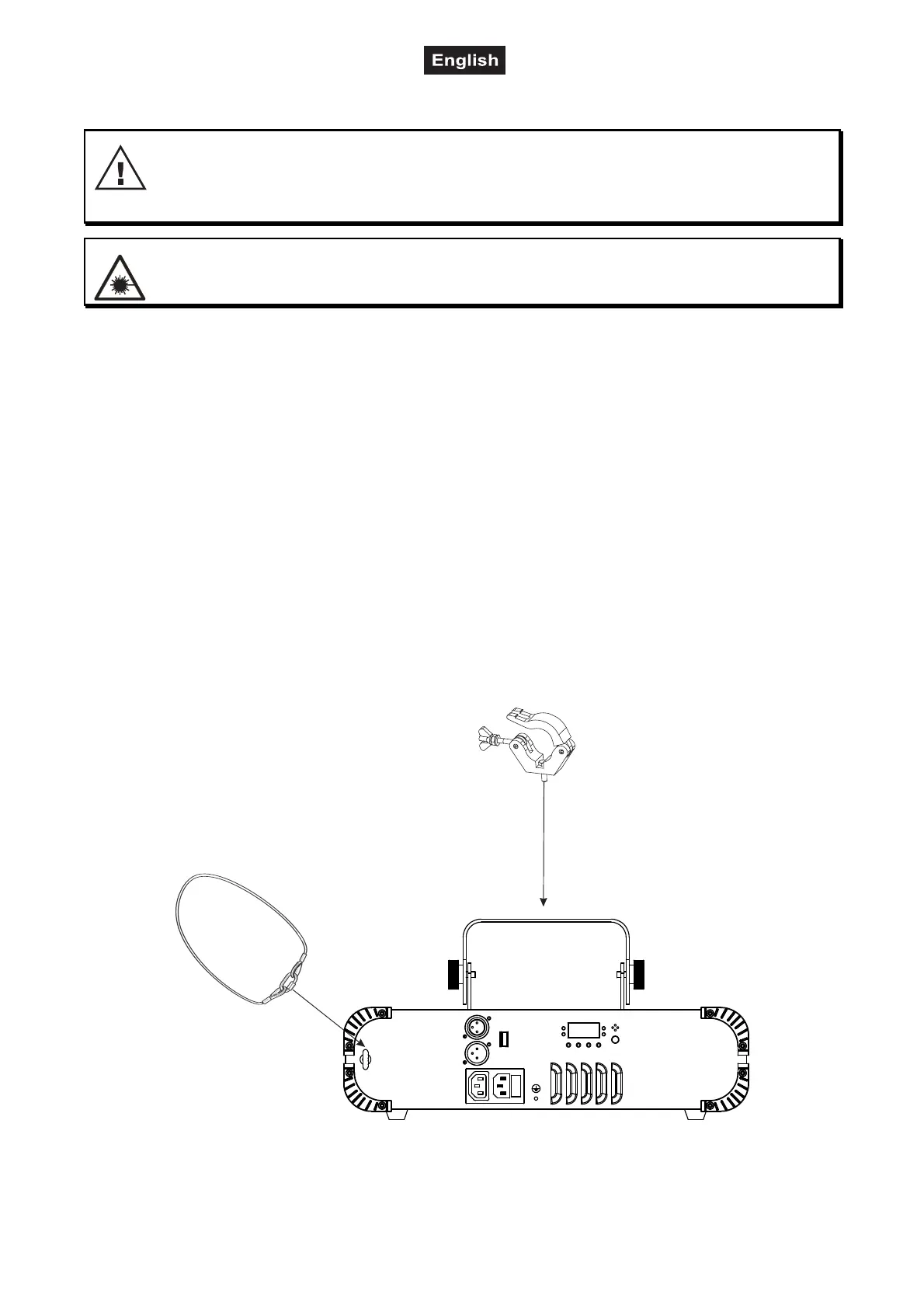

INSTALLATION

WARNING! Risk of injury caused by falling objects

Devices in overhead installations may cause severe injuries when crashing down. Make sure

that the device is installed securely and cannot fall down. The installation must be carried out by

a specialist who is familiar with the hazards and the relevant regulations.

DANGER! Damage caused by laser radiation

Observe the chapter safety instructions when installing the device.

The device may be placed on the floor or fastened to a truss or similar rigging structure. The device must

never be fixed swinging freely in the room.

1 The rigging structure must support at least 10 times the weight of all fixtures to be installed on it.

2 Block access below the work area and work from a stable platform when installing the device.

3 Use rigging hardware that is compatible with the structure and capable of bearing the weight of the

device. Please refer to the “Accessories” section for a list of suitable rigging hardware.

4 Secure the device with a safety bond or other secondary attachment. This secondary safety

attachment must be sufficiently dimensioned in accordance with the latest industrial safety

regulations and constructed in a way that no part of the installation can fall down if the main

attachment fails. An appropriate eyelet is mounted on the device for fixation of the safety bond.

Fasten the safety bond in such a way that, in the event of a fall, the maximum drop distance of the

device will not exceed 20 cm.

5 To align the device, release the fixation screws at the mounting bracket, adjust the desired

inclination angle and retighten the fixation screws.

6 Make sure not to point the laser beams at highly reflective surfaces such as mirror balls, windows

and shiny objects. As a precaution, remove or cover up highly reflective objects in order to avoid

laser reflections.

7 After installation, the device requires inspections periodically to prevent the possibility of rot,

deformation and looseness.
