13
ED3541 Industrial Ethernet Extender User Guide

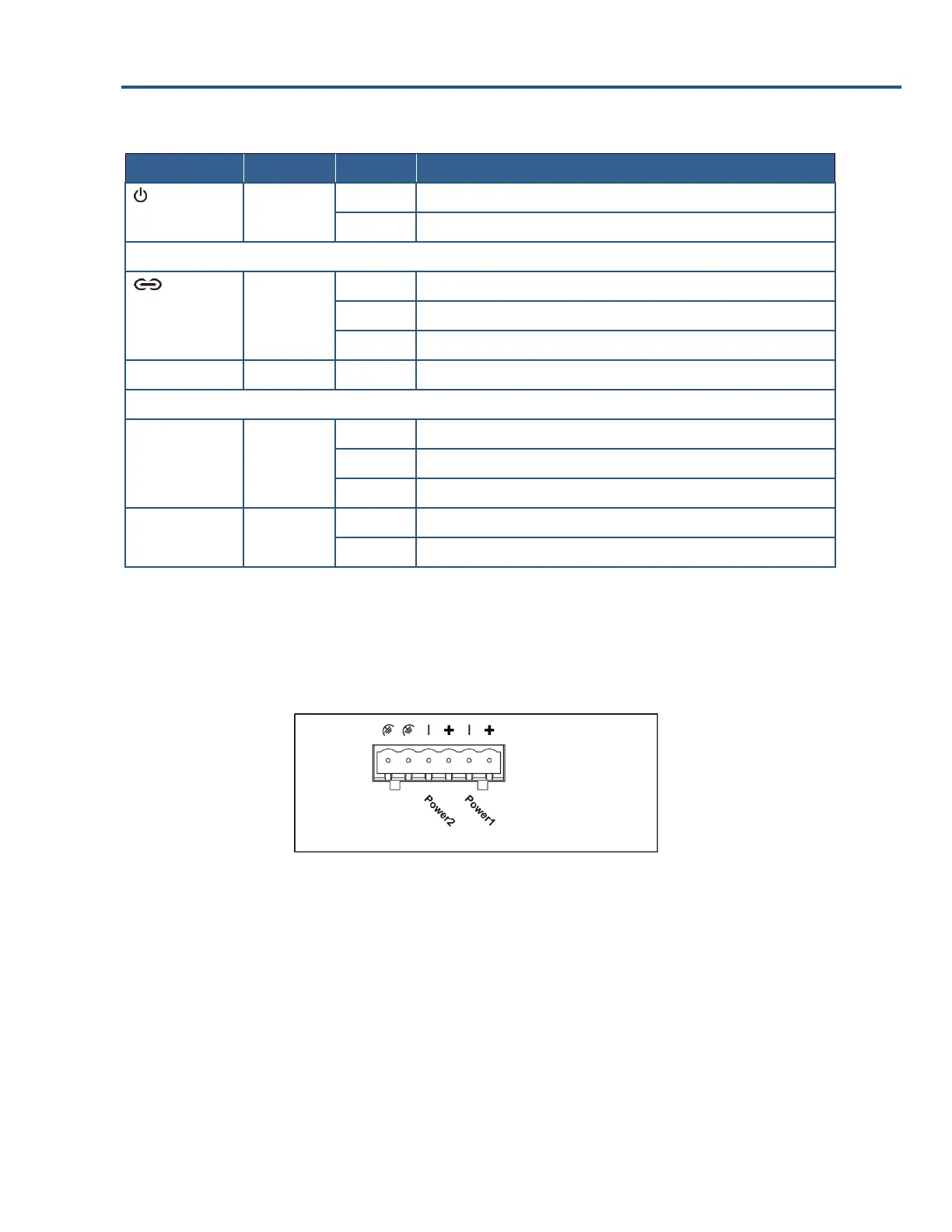

Table 2-1. Front Panel LEDs
LED
Color
Status
Description
PWR 1, 2
Green
ON
Receiving power.
OFF
Power off.
Ethernet Extender Port
Link/Activity
Green
ON
Connection is established.
OFF
No connection is established.
Flashing
Port is sending or receiving data.
Line Speed
Green
ON
Displays the link speed in Mbps.
10/100TX Port
Link/Activity
Green
ON
Valid network connection.
OFF
No data transmission on port.
Flashing
Port is sending or receiving data.
Speed
Yellow
ON
Link speed at 100Mbps.
OFF
Link speed at 10Mbps.
Top Panel
The ED3541 top panel has a Termianl Block for connecting the external power supply.
Figure 2-2. Top Panel of the ED3541 Hardened Ethernet Extender
Side Panels
The ED3541 side panel has a product label that shows regulatory compliance, product serial
number, and other information.
