www.EstellaEquipment.com 13
USER MANUAL
To clean the machine thoroughly at the end of each processing
cycle, you can also remove the bowl. Follow these operations to
correctly remove the bowl:

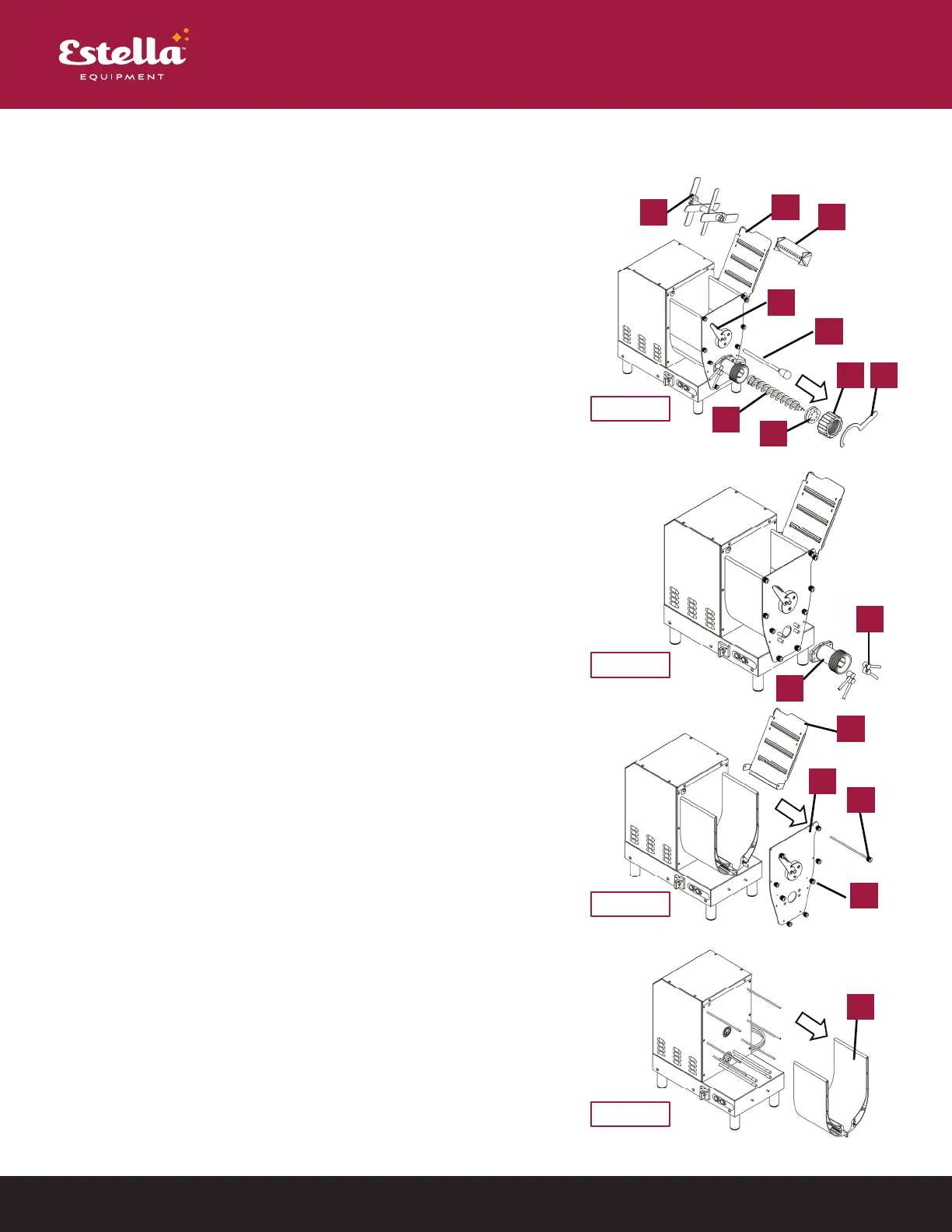

REMOVING THE BLADE (FIG. 10)
Remove the liquid dosing tank (1), lift the lid up (2), and rotate
the lever (3) counterclockwise. Hold the blade (5) with one hand,
remove the bar (4) with the other. Then lift up and remove the
blade (5).
REMOVING THE SCREW (FIG. 10)
Unscrew the ring nut (7) by rotating it clockwise using the key (6),
and remove the die (8) and the screw (9).
REMOVING THE COUPLING (FIG. 11)
To remove the coupling (11), undo the 4 bolts (10) which fasten it to
the bowl, and remove it.
REMOVING THE LID (FIG. 12)
To remove the lid (2), hold it with one hand, unscrew the knob (12),
and remove it.
REMOVING THE BOWL FRONT PANEL (FIG. 12)
To remove the front panel (14), hold it still with one hand and
unscrew the 8 remaining knobs (13); the front panel is now loose
and can be removed.
REMOVING THE BOWL (FIG. 13)
After correctly completing all the above operations, pull the bowl
(15) towards you with two hands.
15
12
2
13
14
10
11
1
2
3
4
5
6
7
8
9
5
2
1
3
4
7 6
8
9
10
11
2
14
12
13
15
FIG. 10
FIG. 11
FIG. 12
FIG. 13
REMOVING THE BOWL
