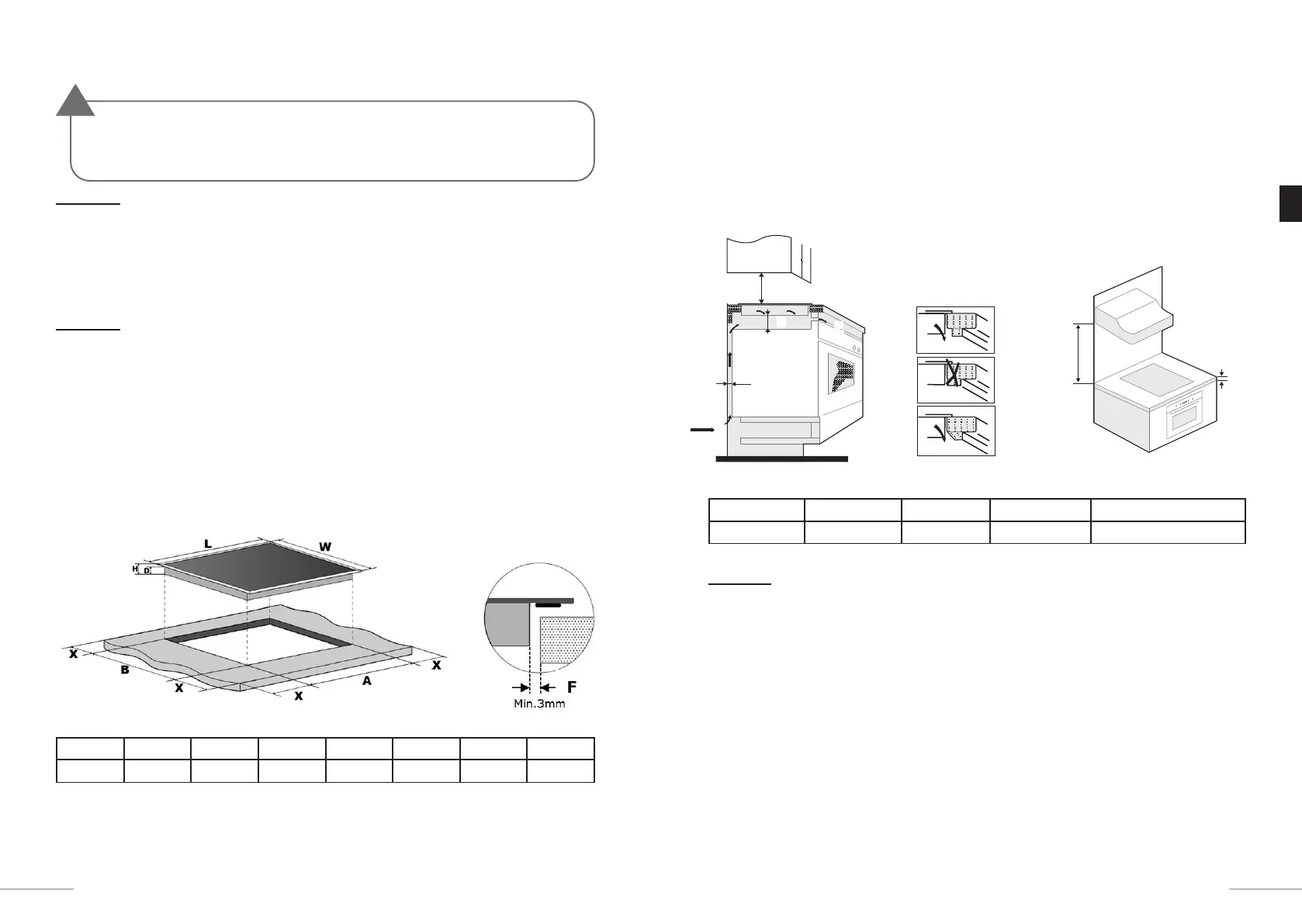

Fitting the watertight seal
The adhesive seal supplied with the appliance prevents anything from getting inside the
unit. Care must be taken when fitting this item.
Stick the seal on the edge of the hob, 3 mm from the outer edge, after removing the
protective strip.
Fitting the hob
Cut the worktop according to the dimensions shown in the diagram below.
For fitting and use, there must be a gap of at least 50 mm around the hole.
Make sure the thickness of the worktop is at least 30mm. Select an insulated, heat-
resistant worktop material (wood or similar hygroscopic materials should not be used
unless it is an impregnated material) to avoid electrical shocks and reduce any warping
caused by the heat radiating from the hob.
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm)
590 520 51 47 560 ± 2 480 ± 2 50 min. 3 min.
Installation should only be carried out by specialists.
The user must comply with the legislation and standards in force in their
country of residence.
!
Seal
The safety distance between the sides of the hob and the interior surfaces of the
worktop must be at least 3 mm.
In any case, make sure that the hob is properly ventilated and that the air inlets and
outlets are not blocked.
Also make sure the hob is in good working order.
The safety distance between the hob and the units above it must be at least 760 mm.
A (mm) B (mm) C (mm) D E
760 25 min. 20 min. air inlet air outlet 5 mm
Make sure that there is adequate ventilation
In order to avoid any accidental contact with the base of the hob when it is hot or any
unexpected electric shock when it is on, a wooden insert, fixed with screws, must be
placed at a minimum distance of 50 mm under the hob.
A
B
EE
C
D
Min.30mm
760mm
wall
28
29
EN
