MaXiO XD EX8000
EX8000 as standalone AD and DA converter for any ADAT compatible devices such as digital
mixers or ADAT multitrack recorders. [MODE 5] only works with 44.1 or 48 kHz (due to ADAT
format limitations).

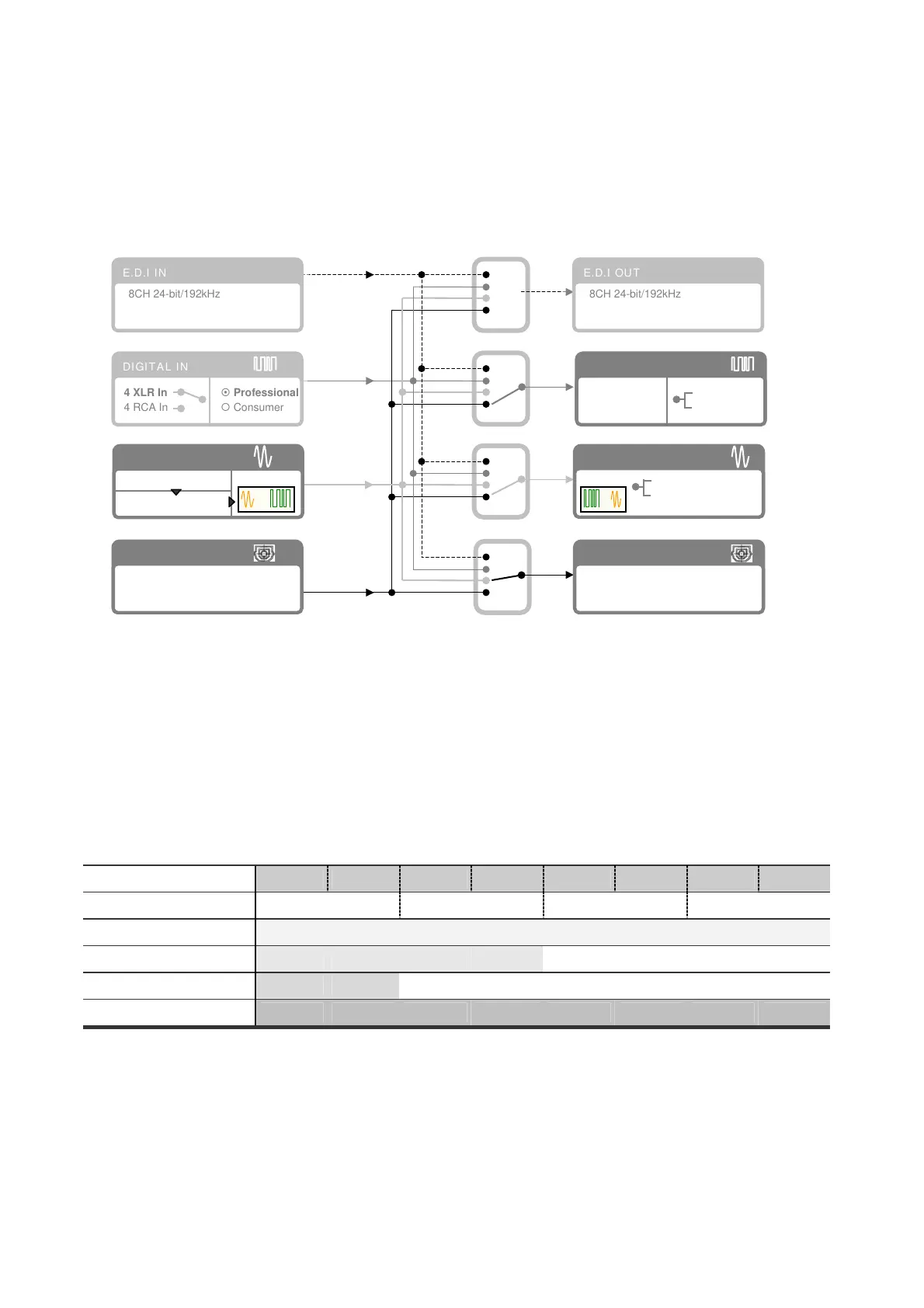

3.2.7 [MODE 6] ADAT to analog / analog to ADAT (with S/MUX enabled)
E.D.I OUT
E.D.I
DIGITAL
ANALOG
ADAT
E.D.I
DIGITAL
ANALOG
ADAT
E.D.I
DIGITAL
ANALOG
ADAT
E.D.I
DIGITAL
ANALOG
ADAT
8CH 24-bit/192kHz
DIGITAL OUT
~ Pro
f
essional
{ Consumer
ANALOG OUT
8 XLR balanced OUT
8 TRS balanced OUT
ADAT OPTICAL OUT
{ Normal : 8CH 24-bit/48kHz
~ S/MUX 2 : 4CH 24-bit/96kHz
{ S/MUX 4 : 2CH 24-bit/192kHz
E.D.I IN
8CH 24-bit/192kHz
DIGITAL IN
ANALOG IN
ADAT OPTICAL IN
ANALOG
{ Normal : 8CH 24-bit/48kHz
~ S/MUX 2 : 4CH 24-bit/96kHz
{ S/MUX 4 : 2CH 24-bit/192kHz
4 XLR Out
4 RCA Out
4 XLR In
4 RCA In
8 XLR / TRS IN
ADAT
~ Professional
{ Consumer
ADAT
DAC
A
DC
MIC / LINE, GAIN
[MODE 6] equals [MODE 5] with the difference that S/MUX is enabled. This means that only 4
instead of 8 channels are transferred, but the supported sample rates are now doubled. [MODE 6]
only works with 88.2 kHz or 96 kHz.
3.2.8 Channel Mapping
The following table shows the mapping of the I/O channel assignment of EX8000. This is
especially important when you work with S/MUX enabled. Note that S/MUX 4 (192 kHz) only can
be used when EX8000 is connected to the MaXiO PCI host card. In the table, E.D.I refers to the
connection to the PCI card.
Analog I/O CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
Digital I/O 1L 1R 2L 2R 3L 3R 4L 4R
ADAT I/O ADAT –1 ADAT - 2 ADAT - 3 ADAT - 4 ADAT - 5 ADAT - 6 ADAT - 7 ADAT - 8
ADAT S/MUX 2 (96) S/MUX –1 S/MUX -2 S/MUX -3 S/MUX -4
ADAT S/MUX 4 (192) S/MUX –1 S/MUX - 2
E.D.I E.D.I –1 E.D.I - 2 E.D.I - 3 E.D.I - 4 E.D.I - 5 E.D.I - 6 E.D.I - 7 E.D.I - 8
11
