MaXiO XD EX8000
3.2.5 [MODE 4] AES/EBU to ADAT / ADAT to AES/EBU
[MODE 4] allows you to use EX8000 has AES/EBU to ADAT and ADAT to AES/EBU converter
unit. The signals from the 4 AES/EBU inputs will be sent out through the 8 channel ADAT output.
The signal from the 8 channel ADAT input will be sent out through the 4 AES/EBU outputs.
The system clock can be set to INTERNAL, DIGITAL (input 1~4) and EXTERNAL (Word Clock).
You must set up the system clock correctly for your specific setup to make this audio routing mode
work properly. A detailed description can be found under 3.3 System Clock in this manual. Note
that this mode only works with 44.1 or 48 kHz (due to ADAT format limitations).
3.2.6 [MODE 5] ADAT to analog / analog to ADAT
10

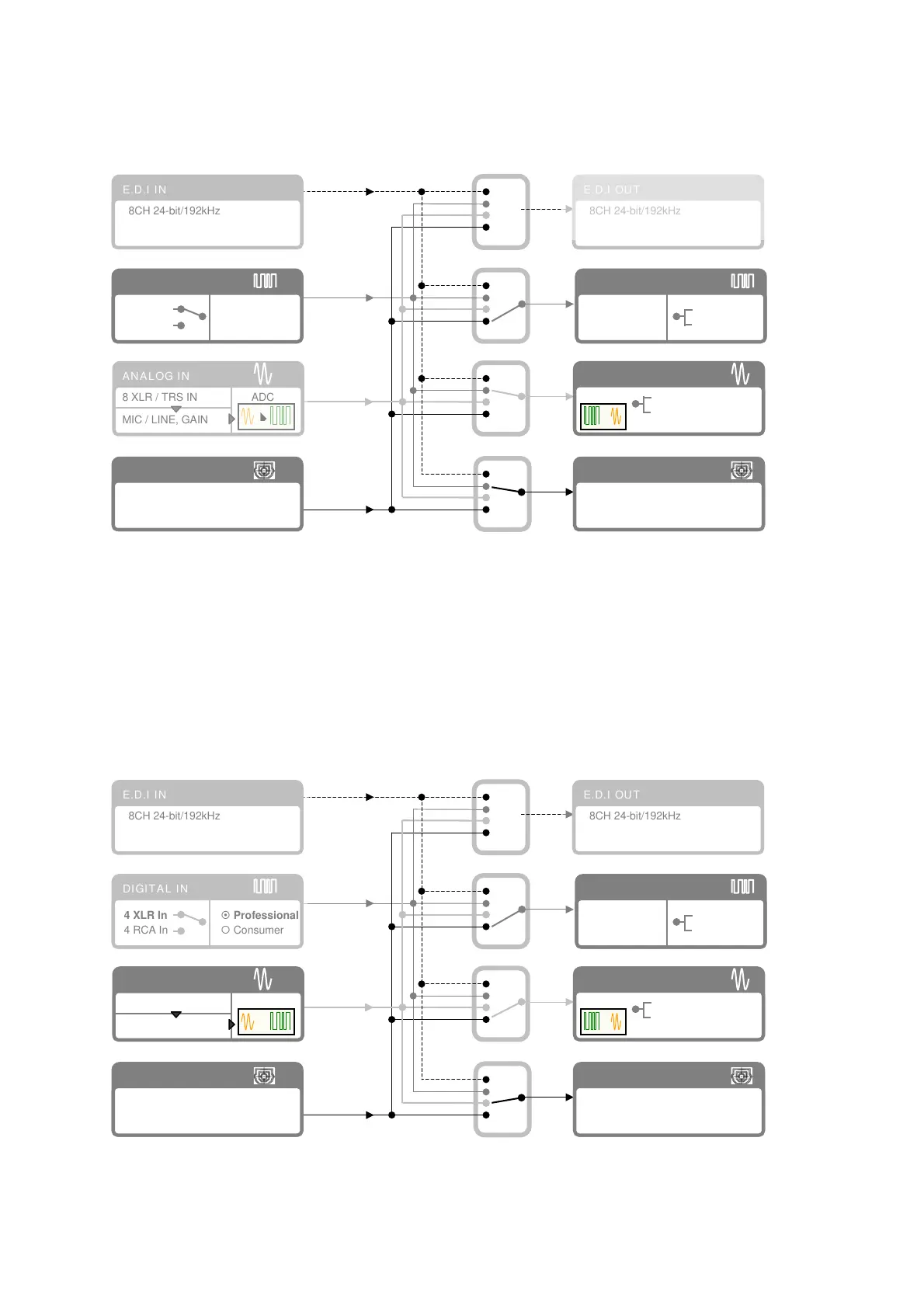

[MODE 5] allows you to use EX8000 as 8 channel AD converter with optical ADAT output and
