MaXiO System Manual
12

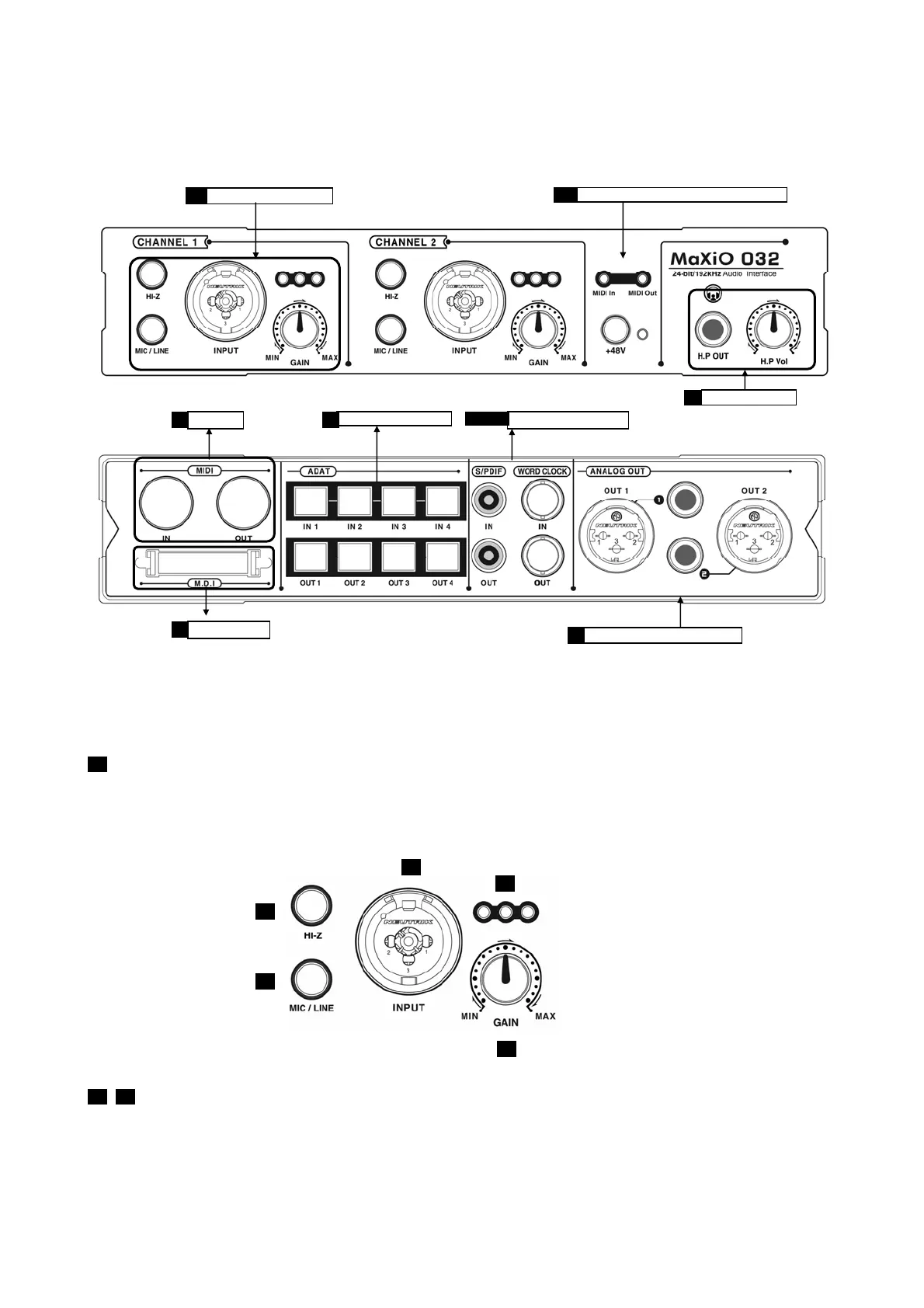

2.4 MaXiO 032 breakout box
2.4.1 Front Panel Input Channel Section
Analog Balanced XLR / TRS (Combo) Input Connector
MaXiO 032 breakout box provides 2 combo connectors (XLR and 1/4" TRS) on the front panel that
are used as balanced analog inputs for line level signals and microphone connection (via XLR).
Hi-Z and MIC/ LINE Selection Switch
These input channels can be used for line level, microphone signals and Hi-Z. When the MIC/LINE
switch is pushed, a microphone can be connected via XLR. When the Hi-Z button is pressed, you
can use analog input as electric guitar or bass input. Only unbalanced TRS phone jack connection
is available for this setting.
3
1
2
Head
p
hone
MIDI I/O S/PDIF & Word Clock
13 Analo
g
out
p
uts
(
XLR & 1/4“
)
8
9
14
1. Front Channel Section
1-5
MIDI indicator & Phontom
p
owe
r
6-7
M.D.I connector
10
8
x ADAT Di
g
it
a
l I
/O
11 12-13
1
3
2
5
4
