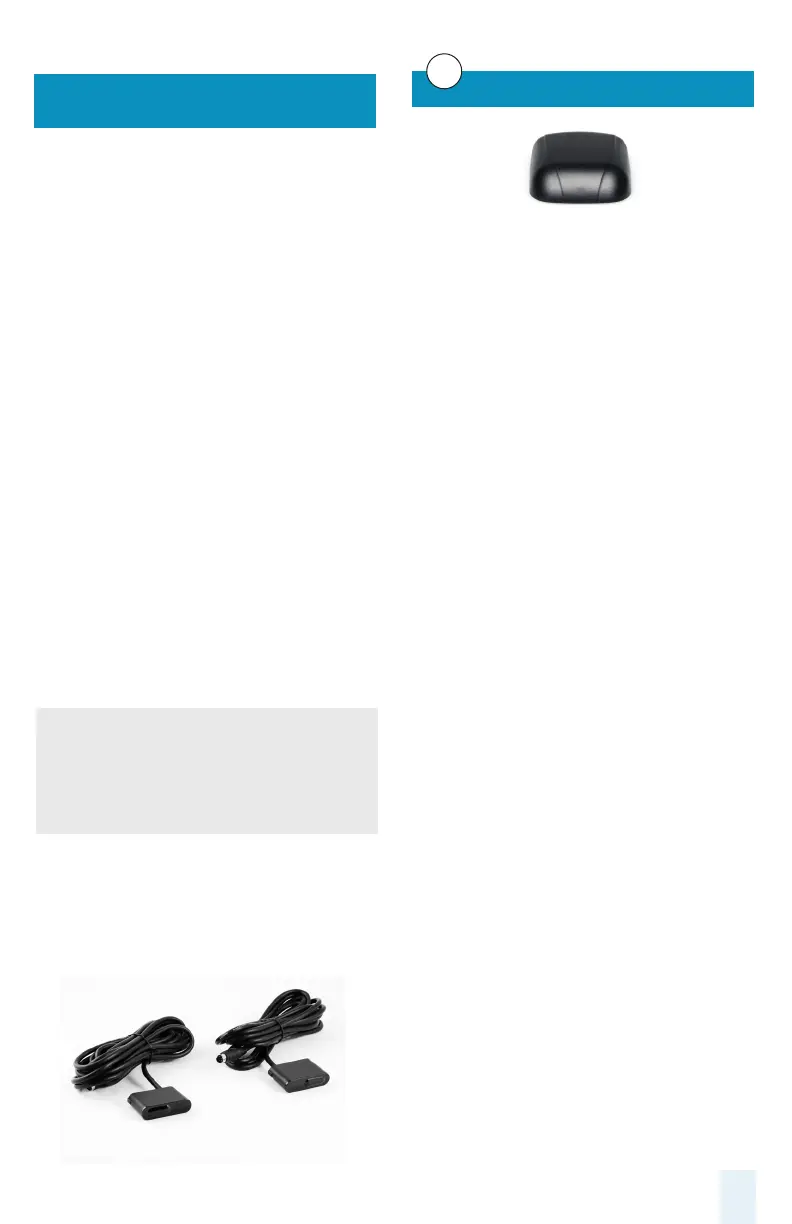

GPS Antenna Yellow Shrink
1 Determine the best location for the GPS
antenna. The GPS Antenna requires a clear
view of the sky. The magnetic base can be used
on most vehicles to mount to the roof of the
car or the trunk lid. It can also be mounted to
the dashboard or rear deck using double-sided
tape.
2 Mount the GPS Antenna, being sure that
roof racks or other obstructions do not block
its view of the GPS satellites.
3 Locate a suitable entry point into the
vehicle. Refer to the Installation Tips section for
locating a suitable entry point.
4 Route the cable through the entry point and
secure along its path. If mounting near the
front or rear window, it is usually possible to
tuck the cable under the gasket surrounding
the glass.
5 Once inside the vehicle’s interior, route the
cable to the Interface and plug into the
connector labeled “GPS.”
6 Secure and conceal the cable under interior
trim panels.
10
E
Front Laser ShifterMax
Sensors (Continued)
1 Snap mounting bracket onto sensor and
install the included bolts but do not tighten
them. If the bolts do not thread into the sensor
then you have the bracket on backwards.
2 Apply the double sided tape to the
underside of the sensor’s mounting bracket.
Check front alignment and mount the sensor
to a solid surface of the vehicle.
3 Use the supplied bubble level to ensure the
sensor is parallel to the road and tighten the
sensor’s mounting bracket bolts.
4 Repeat for additional sensor(s).
Securing Connectors with Shrink Tube
Once you’ve installed all components properly
and tested to ensure all parts are working
properly, use cable ties to fasten sensor cables
to a solid surface, keeping them away from
heat and any moving parts. It is advisable to
use the supplied heatshrink tubes to protect
connectors against water, moisture, dust, etc.
IMPORTANTLY the ShifterMax sensors are
shipped in “receive only” mode. Shifting
must be enabled in the bands settings. See
the Preferences section of the Owner’s
Manual.
Additional ShifterMax Sensors
• ESCORT MAX CI users wanting to add rear
sensors, two (2) additional ShifterMax
Sensors with included hardware are sold
separately.
