Option B

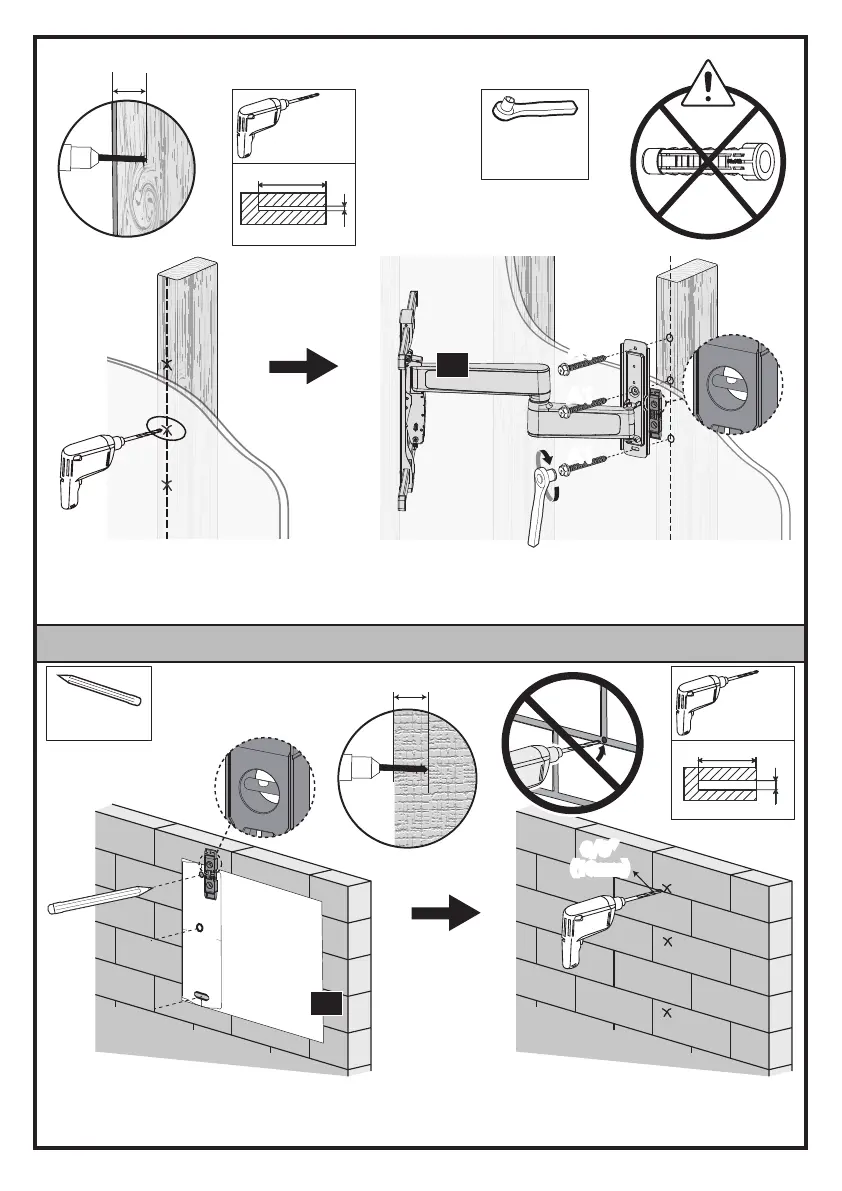

Position the Wall Plate Template [03] at your desired height. Level the template and mark the holes.
Drill 3 pilot holes using a 3/8″ (10mm) diameter drill bit. Make sure the depth is not less than 3″
(75mm). Never drill into the mortar between blocks or bricks.
07
3/8”
(10mm)
3/8”
(10mm)
3″ (75mm)
Pencil
(NOT Included)
ø3/8″ (10mm)
3″ (75mm)
Electric Drill
(NOT Included)
Drill 3 pilot holes using a 7/32″ (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4″
(70mm). Mount the Arm Assembly / Wall Plate [02] on the wall using the Lag Screws [A1]. Tighten
the Lag Screws only until they are pulled firmly against the Wall Plate (DO NOT overtighten).
2 3/4″ (70mm)
ø7/32″ (5.5mm)
2 3/4″ (70mm)
1/2″ (13mm)
Socket Wrench
(NOT Included)
Electric Drill
(NOT Included)
02
A1A1
A1
A1
A1
A1
03
02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
