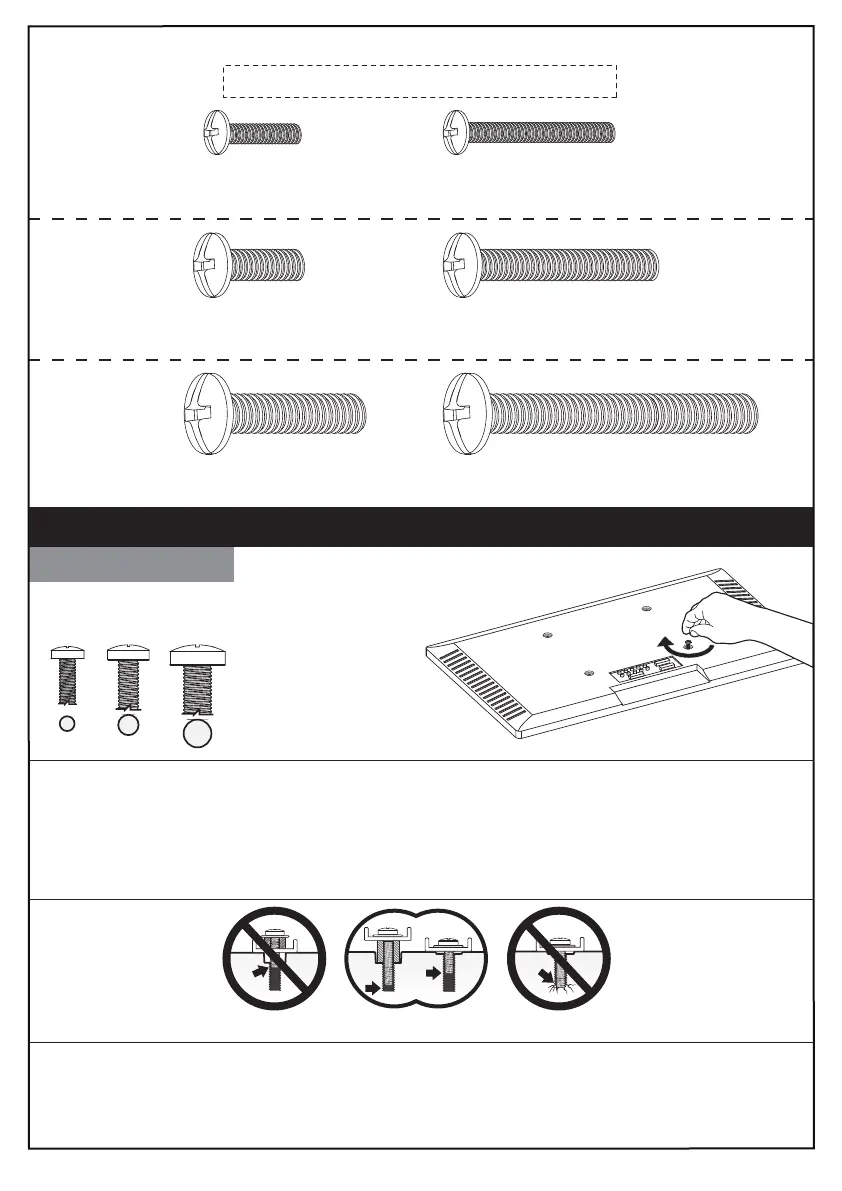

NOTE: The bolts shown are actual size.
TV Bolts (Only one size bolt will fit your TV)
NOTE: Please DO NOT over tighten the TV bolts to avoid damaging your TV.
Bolt length: Verify adequate thread engagement with bolts or bolts / spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
PLEASE NOTE: If spacers are required for your installation, a combination of different
spacers can be stacked to obtain a proper length. See examples in the image below. If you
have any difficulty understanding how to install the TV bolts or spacers, please contact our
Tech Support at (877) 419-7832 or Customer Service at support@ergoav.com.
Too Short Correct Too Long
M4 x 30mm
[C2] x 4
M6 x 15mm
[D1] x 4
M6 x 35mm
[D2] x 4
M8 x 25mm
[E1] x 4
M8 x 50mm
[E2] x 4
Select TV Bolts
Only one size bolt fits your TV.
Step 1 Secure the TV Brackets to the TV
M4
M6
M8
M6M4 M8
[C1] x 4
M4 x 12mm
02 03 04 05 06 07 08 09 10 11 12 13 14
