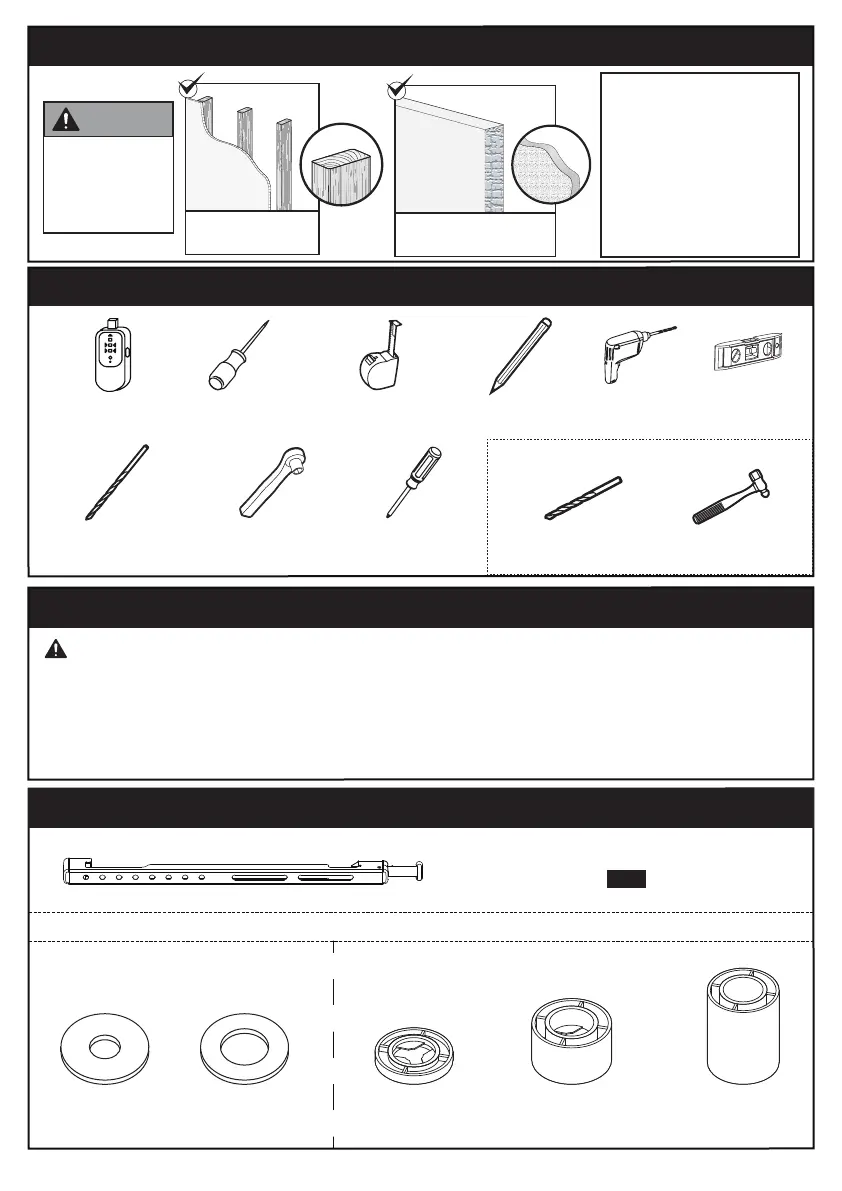

TV Bracket
x 2
01
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Verify Your Wall Construction
If you are not sure of
the wall construction,
please contact
Technical Support at
(877) 419-7832 or
Customer Service at
support@ergoav.com
to find a compatible
mount.
Solid Concrete
Wall
CAUTION
DO NOT
install into
drywall alone.
Wood Studs
(with Drywall)
Stud Finder Tape Measure Pencil Electric Drill Level
7/32” (5.5mm)
Wood Drill Bit
1/2” (13mm)
Socket Wrench
Phillips
Screwdriver
3/8” (10mm)
Concrete Drill Bit
Hammer
Awl
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. DO NOT use
damaged or defective parts. lf you need replacement parts, please contact Technical
Support at (877) 419-7832 or Customer Service at support@ergoav.com.
• NOTE: Not all hardware included in this package will be used.
(Needed for concrete installs)
Spacers
[If necessary]
NOTE: The Washers and Spacers shown are actual size.
[F1]
x 8
L2.5mm
[F2] x 4
L10mm L22mm
[F3] x 4
Washers
M4 / M5
[B1] x 4
M6 / M8
[B2] x 4
02 03 04 05 06 07 08 09 10 11 12 13 14
