3” (75mm)
3/8” (10mm)
CAUTION: DO NOT use a drill to
tighten the Lag Screws. Only use
a Socket Wrench.
1/2" (13mm)
Socket Wrench
(NOT Included)

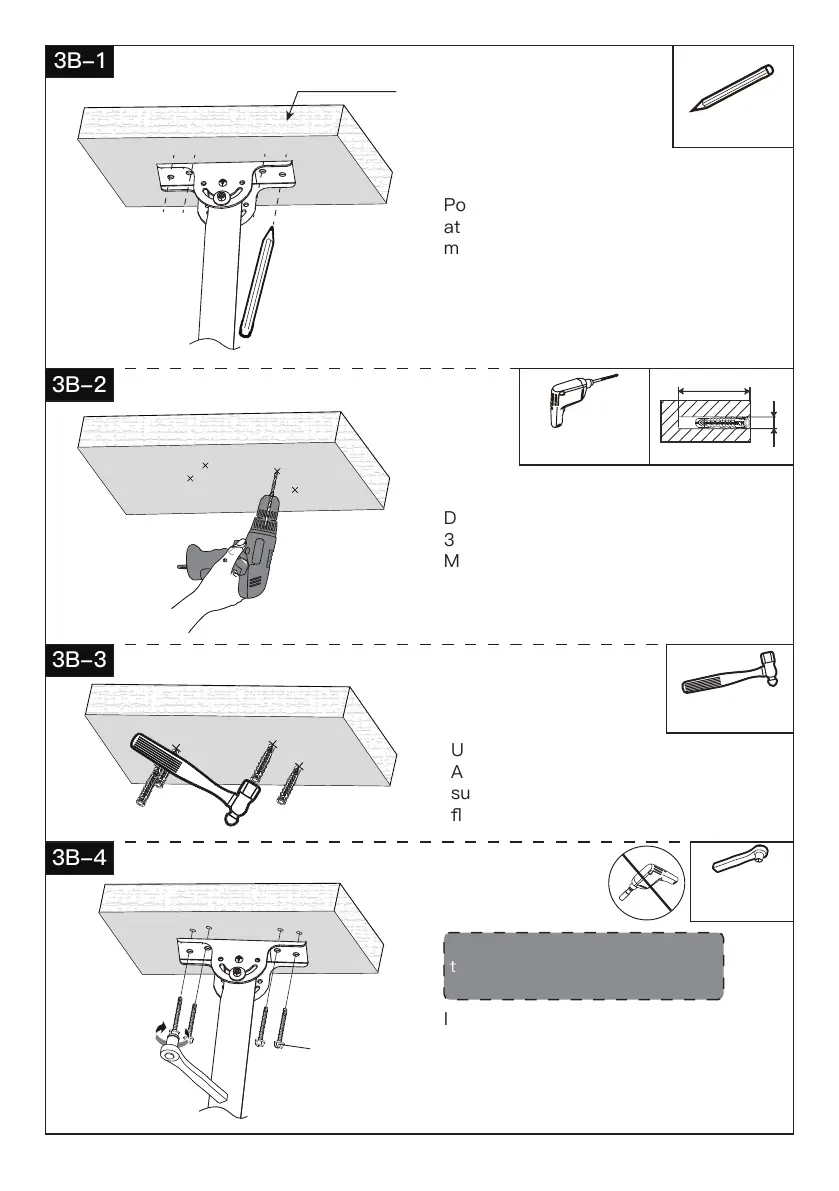

Position the Ceiling Plate [02]
at your desired position, and
mark the pilot hole locations.
Drill the 4 pilot holes using a
3/8” (10mm) diameter drill bit.
Make sure the depth of each
hole is at least 3" (75mm) deep.
3B-1
3B-2
3B-3
3B-4
Install the Ceiling Plate [02] using
Lag Screws [A1]. Tighten the Lag
Screws [A1] only until they are
pulled firmly against the Ceiling
Plate.
Ceiling Thickness
≥5 1/2" (140mm)
Use the Hammer to knock
Anchors [A2] into the ceiling. Be
sure the Anchors [A2] are seated
flush with the concrete surface.
Pencil
(NOT Included)
Electric Drill
(NOT Included)
A1
Hammer
(NOT Included)
12
