REAR CONNECTORS

All connections to the BrightEye 90-F are made on the rear of the unit. Refer to

the photo below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the

far left of the unit. Use the locking ring to secure it.

USB Connector

Connect a PC to the USB connector to enable more comprehensive control, diag-

nostics, and upgrades to the BrightEye 90-F. Use the BrightEye PC or BrightEye

Mac application included on CD-ROM to make adjustments as described in the

OPERATION section of this user guide.

HDMI Out

Connect an LCD monitor to this port for confidence monitoring of a video feed.

HD/SD SDI Optical Out

This output is an HD or SD SDI signal with embedded audio. It is the same

signal that is on the electrical HD/SD SDI Out BNC.

Audio Monitor

Connect a headset to this 3.5 mm mini jack to monitor the pair of audio channels

selected from the Mon Assign control on the Audio Out menu.

Input/Output BNCs

There are eight rear BNC connectors used as inputs and outputs as follows:

HD/SD SDI Out

This BNC outputs a timed HD or SD SDI video signal with embedded audio.

Cpst Out

This BNC outputs a timed analog composite (NTSC or PAL) video signal.

Composite output is only present when an SD SDI signal is present on the

HD/SD SDI Out BNC.

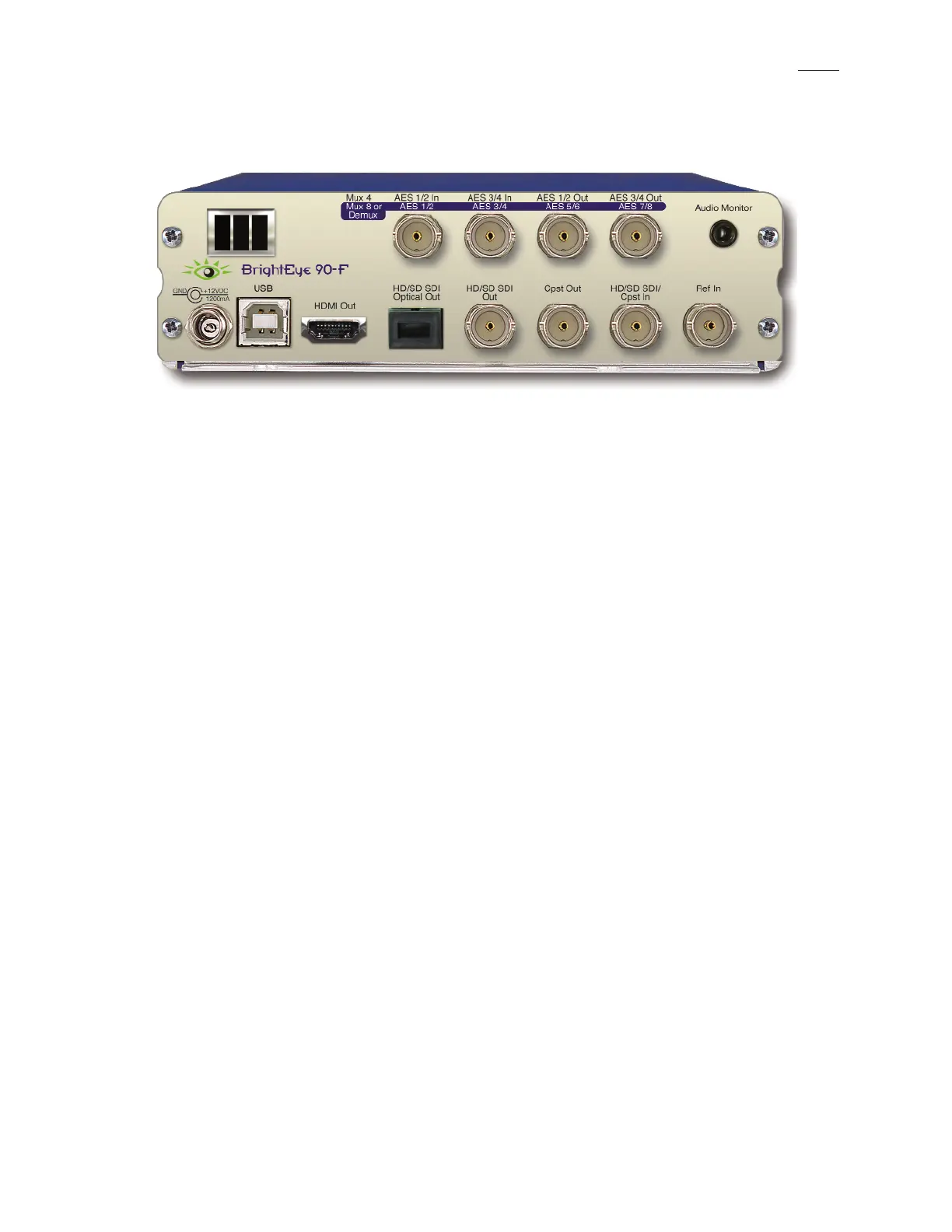

BrightEye 90-F Rear Connectors
