BrightEye 76

BrightEye 76 - Page 5

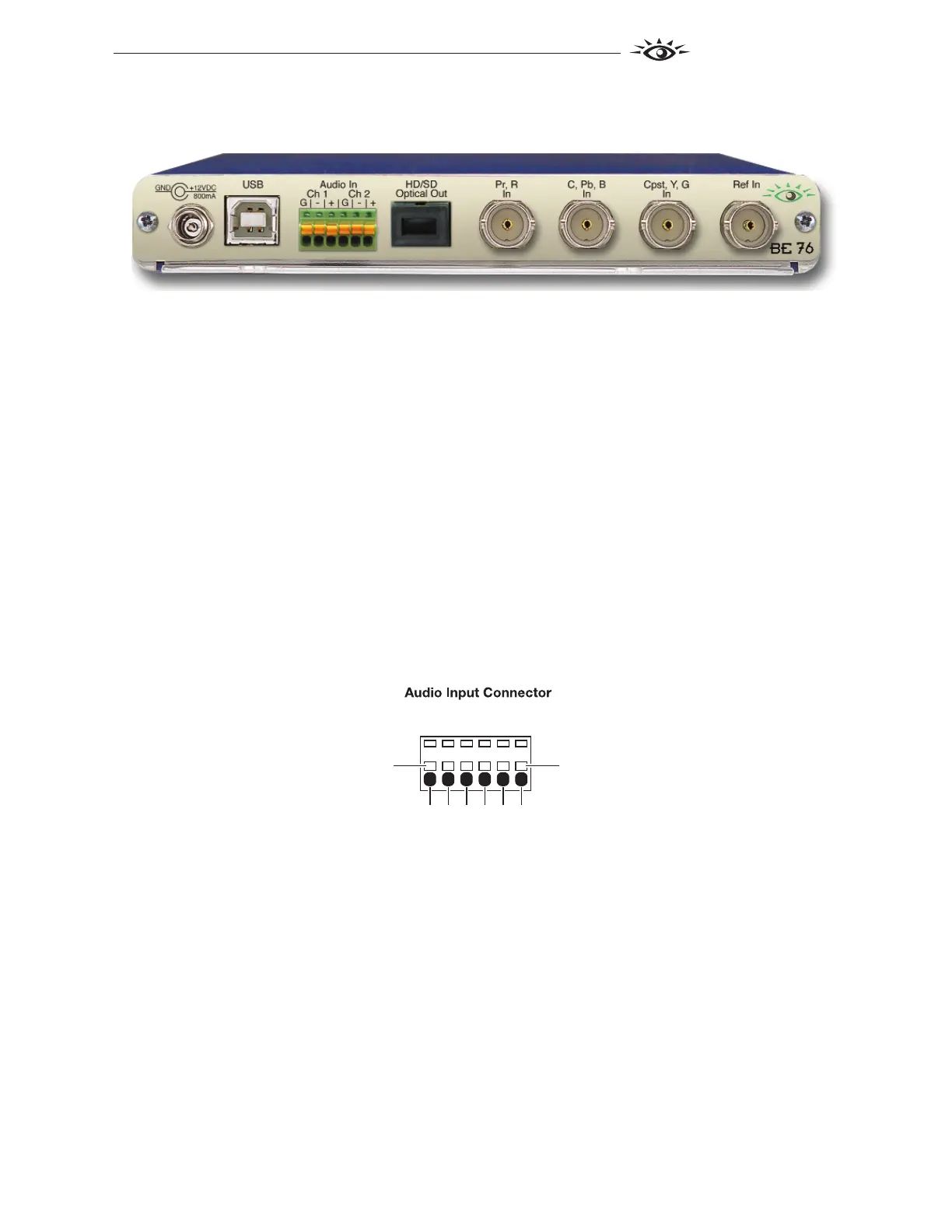

REAR CONNECTORS

All connections to the BrightEye 76 converter are made on the rear of the unit.

Refer to the illustration below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the

far left. Use the locking ring to secure it.

USB Connector

The USB connector is used to provide more comprehensive control, diagnostics,

and upgrades to the converter from a personal computer. Use the BrightEye PC or

Mac application included on CD-ROM to make adjustments as described in the

OPERATION section of this user guide.

Audio In

This 6-pin Phoenix connector provides two channels of analog audio input. Wiring

is done by inserting the connector provided with the unit. The pinouts are shown

in the diagram below.

To connect audio to this connector, strip the audio wire to about 3/8” (8 mm).

Solder tinning is not required. Push the wire into the opening at the bottom of

the connector to seat the connection. This will snap the wire into place. To remove

the wire, push in the pin above the connection with a small pointed tool. This will

release the wire from the connector.

Balanced Analog Audio Connection – to connect the audio input to an audio

XLR connector, connect the pins as follows:

• Attach Ground from Pin 1 of the Audio In to Pin 1 of the XLR.

• Attach the + (plus) signal from Pin 3 of the Audio In to Pin 2 of the XLR.

• Attach the – (minus) signal from Pin 2 of the Audio In to Pin 3 of the XLR.

BrightEye 76 Rear Connectors

Ch 1 Ch 2

Push in to releasePin 1

G+
