BrightEye 76 HD/SD Analog to Digital Converter With Optical Output
BrightEye 76 - Page 4
APPLICATIONS
The BrightEye 76 is well-suited to applications using HD Cameras or other
devices with analog I/O. The built-in TBC/Frame Synchronizer allows you to feed
asynchronous or noisy signals to the BrightEye 76. These are then digitized and
time-base corrected by noise-tolerant tracking circuitry.
The example below shows a three-camera, live remote setup. Full bandwidth
analog video from an HD camera is fed to a BrightEye 76 and converted to HD-SDI
digital video. The signal is time base corrected and frame synchronized to the
reference input. The signal is then sent to a Remote Truck/OB Van and output on
fiber.
The analog audio from the cameras enters the BrightEye 76 two-channel
A-to-D converter. Adjustments for audio mixing, audio levels, and channel
shuffling can then be applied to the audio before it is embedded into the SDI
output signal and fed to air.
Remote Truck/
OB Van
BrightEye 76
BrightEye 76
BrightEye 76
HD SDI
HD SDI
HD SDI
Analog HD Video
Optical HD SDI
Ref In
Ref In
Ref In
Y
Pr
Pb
Y
Pr
Pb
Y
Pr
Pb
1
2
3

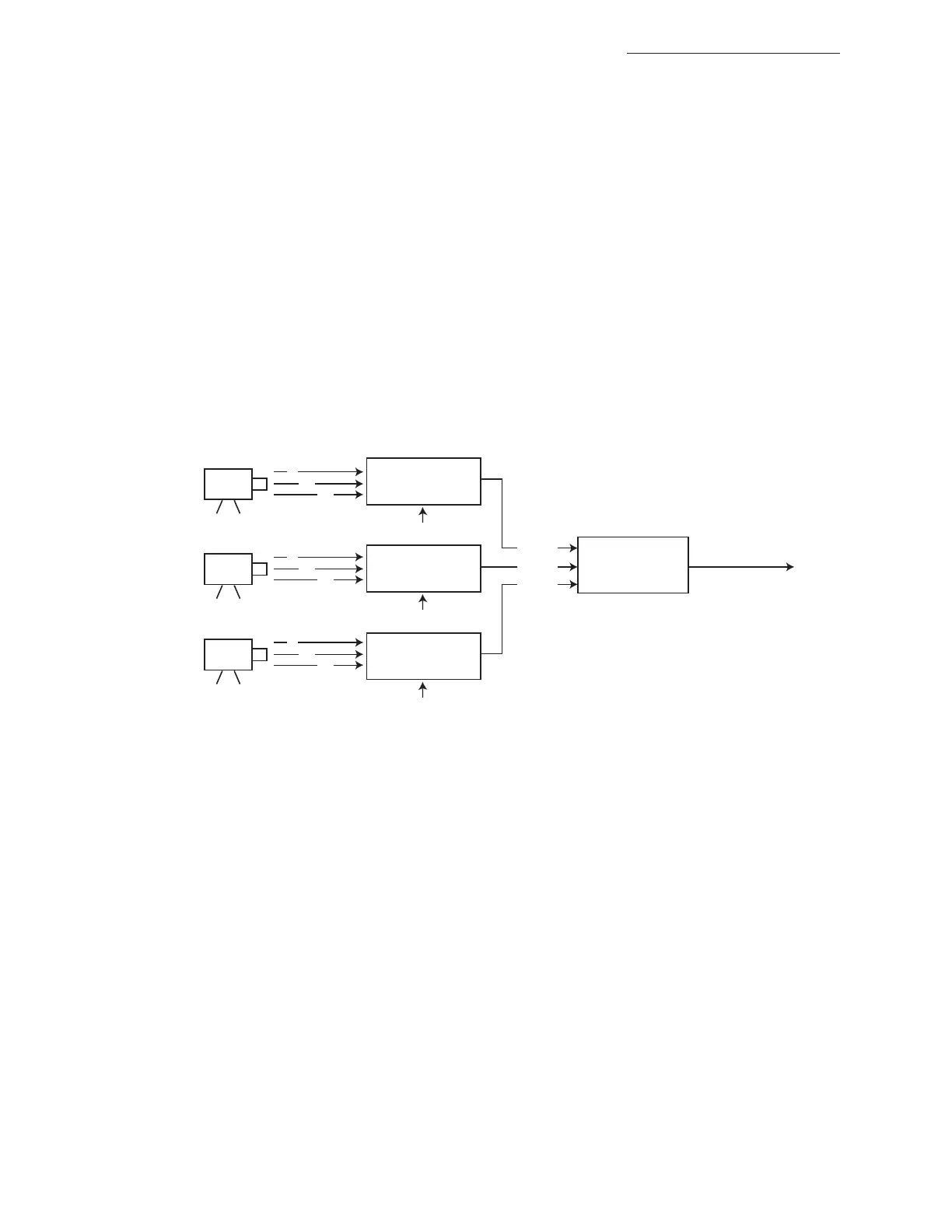

BrightEye 76 Signal Ingest Application for HD Signals
