BrightEye 71 and 71-F - Page 11

HD/SD 8 Channel Analog Audio Embedder/Disembedder User Guide

BrightEye 71 and 71-F

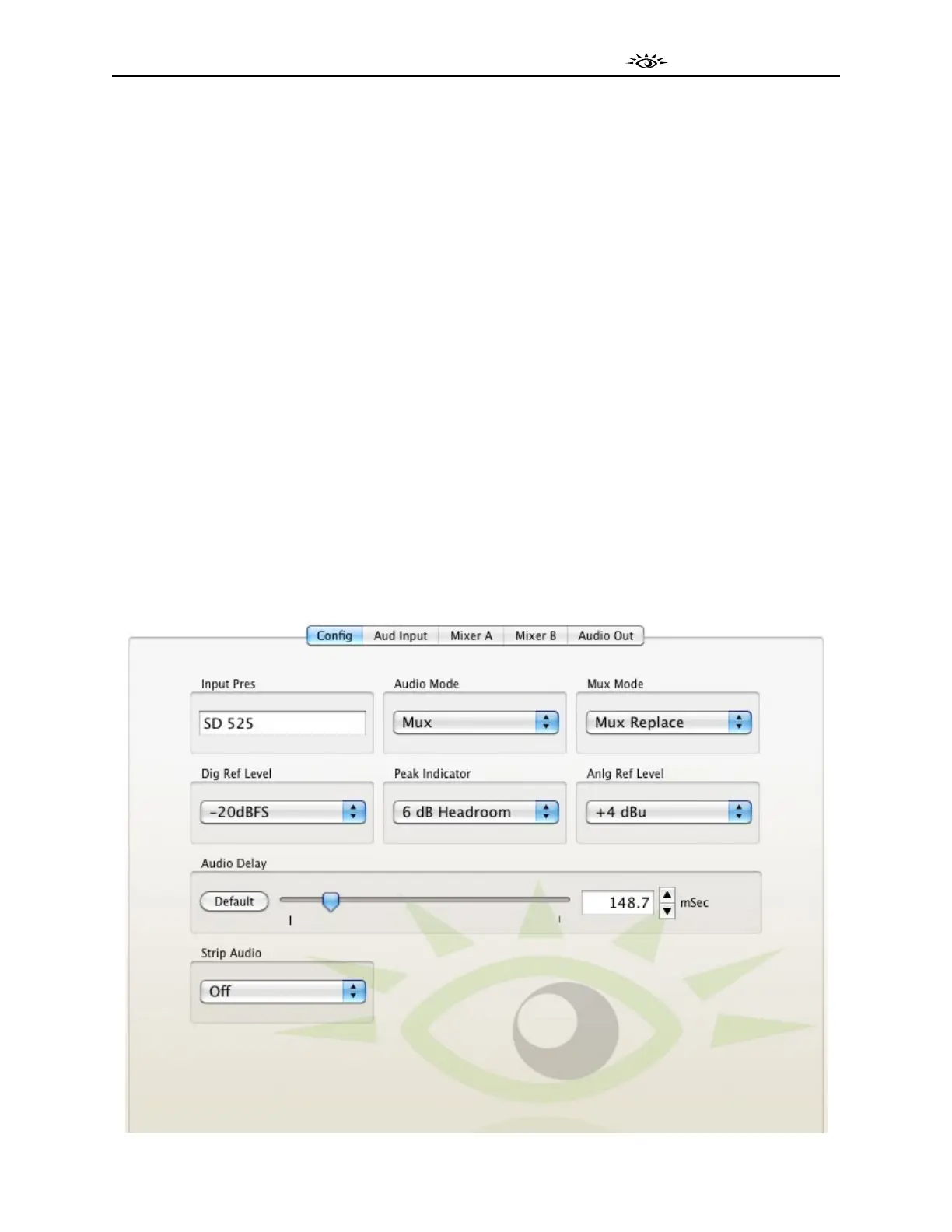

Conﬁg Menu

• Input Pres – indicates the presence of an HD or SD SDI input. One of the following values will

be displayed: 720p/50, 720p/59.94, 720p/60, 1080i/50, 1080i/59.94, 1080i/60, 1080p/25,

1080p/23.98, 1080p/24, 1080p/25, 1080sF/25, 1080sF/23.98, 1080sF/24, SD 525, SD 625,

No Input, or Unknown.

• Audio Mode – select the mode of the module as Mux or Demux.

• Mux Mode – select the type of multiplexing desired from Mux Replace or Mux Cascade.

• Dig Ref Level – select the digital reference level. This pulldown lets you choose between:

-20 dBFS or -18 dBFS.

• Peak Indicator – select the amount of headroom to use in determining peak levels. This

pulldown lets you chose between: Clipping, 2 dB Headroom, 4 dB Headroom,

6 dB Headroom, 8 dB Headroom, or 10 dB Headroom.

• Anlg Ref Level – select the analog reference level. This pulldown lets you choose between

-10 dBu or +4 dBu.

• Audio Delay – allows you to set the amount of audio delay from 0 to 1000 mSec. Default is

0 mSec.

• Strip Audio – when On all audio and EDH is stripped from the incoming stream. Oﬀ leaves

audio and EDH as it comes in on the input signal.
