BrightEye 30 Audio ADC and DAC, Bi-directional

OPERATION

Control and operation of the BrightEye 30 is performed from the front panel or

with the BrightEye Control application.

Some control settings are only available with BrightEye PC or Mac. These parameters

cannot be monitored or controlled with the front panel.

Front Panel Controls and Indicators

The front panel of the converter, shown in the figure below, provides status indi-

cators and control over video input and output selection, and gain.

Status Indicators

The following status indicators are provided on the front panel:

Ref (Reference)

Illuminate green when a valid reference is present on the AES Ref In connector.

Illuminates red when an invalid reference is present, and does not illuminate

when there is no signal present. A valid reference is AES, Word Clock, or

Composite Video.

Mode

The currently selected conversion Mode (A –> D, D –> A, BiDir, or SRC) is illu-

minated green.

Analog Ref Level

The currently selected analog reference level for input and output (-10 dB or +4

dB) is illuminated green.

Ch 1/2 and Ch 3/4

VU output level and the status of the Gain adjustment for each of these channel

pairs is indicated by the state the VU and Gain indicators. The VU indicator

illuminates red when the audio level exceeds the headroom level set by the user

(with the Peak Indicator control in BrightEye PC or Mac.) Additionally, the VU

indicator illuminates orange when the output is above 0 VU, illuminates green

when the output is above -20 VU, and doesn’t illuminate when the output is

below -20 VU. The Gain indicator illuminates red when the gain level has been

adjusted off from unity by the user. The 0 VU point corresponds in the digital

domain to the digital reference level (-18 or -20 dBFS) and in the analog domain

to the analog reference level (-10 or +4 dBu.)

BrightEye-10

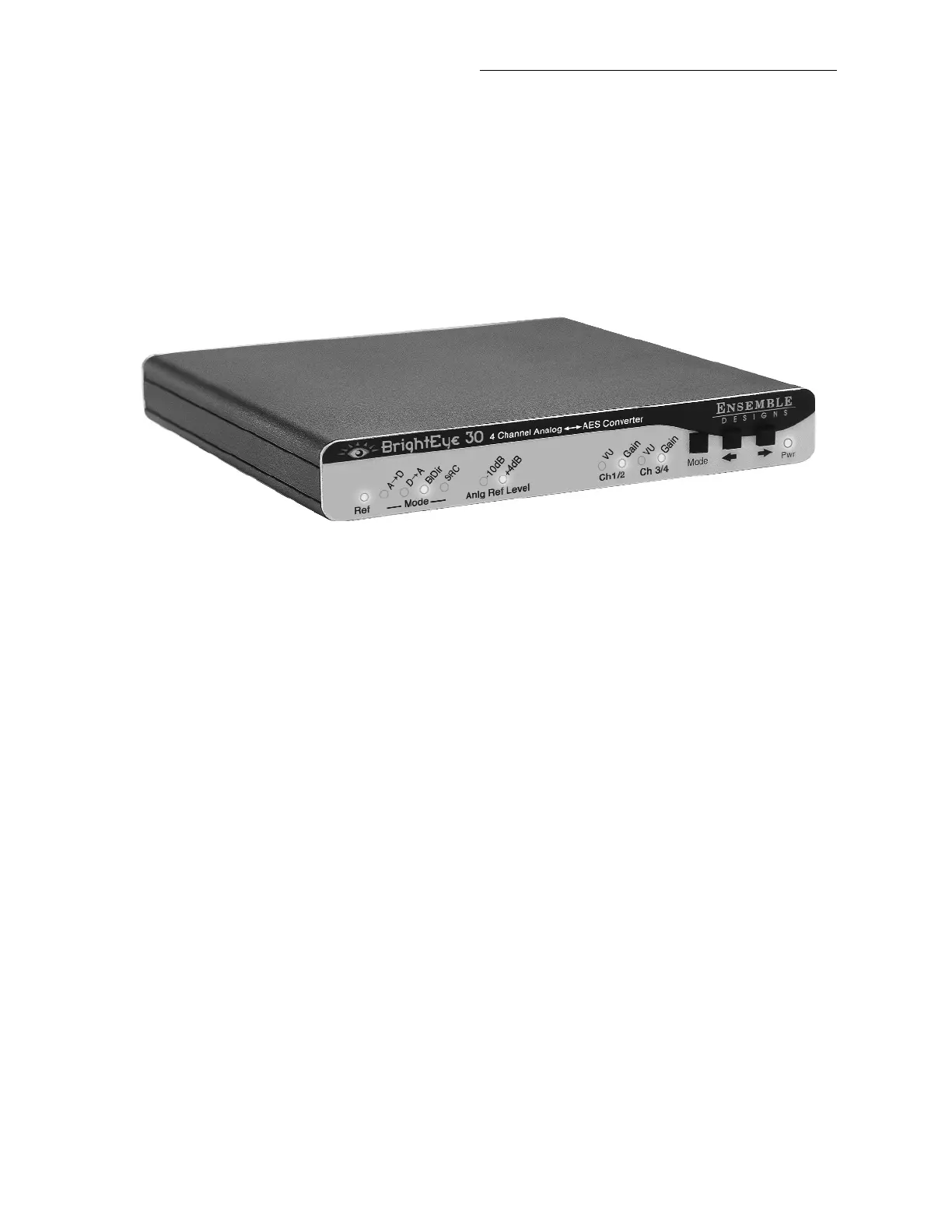

BrightEye 30 Front Panel

NOTE:
