BrightEye 11-HD

BrightEye-5

REAR CONNECTORS

All connections to the BrightEye 11-HD converter are made on the rear of the

unit. Refer to the illustration below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the

far left. Use the locking ring to secure it.

USB Connector

The USB connector is used to provide more comprehensive control, diagnostics,

and upgrades to the converter from a personal computer. Use the BrightEye PC

or Mac application included on CD-ROM to make adjustments as described in the

OPERATION section of this data pack.

Input/Output BNCS

There are five rear BNC connectors which are used as inputs and outputs as

follows:

HD/SD SDI In

This BNC input accepts a standard definition (SD) or high definition (HD) serial

digital component signal.

HD/SD SDI Out

The Serial Digital Component signal from the reclocking circuitry is presented on

this connector. This output conforms to the ITU-R 601 standard for serial digital

video, with SMPTE 259M serialization at 270 Mb/s for standard definition; or

SMPTE 274M or 296M for high definition.

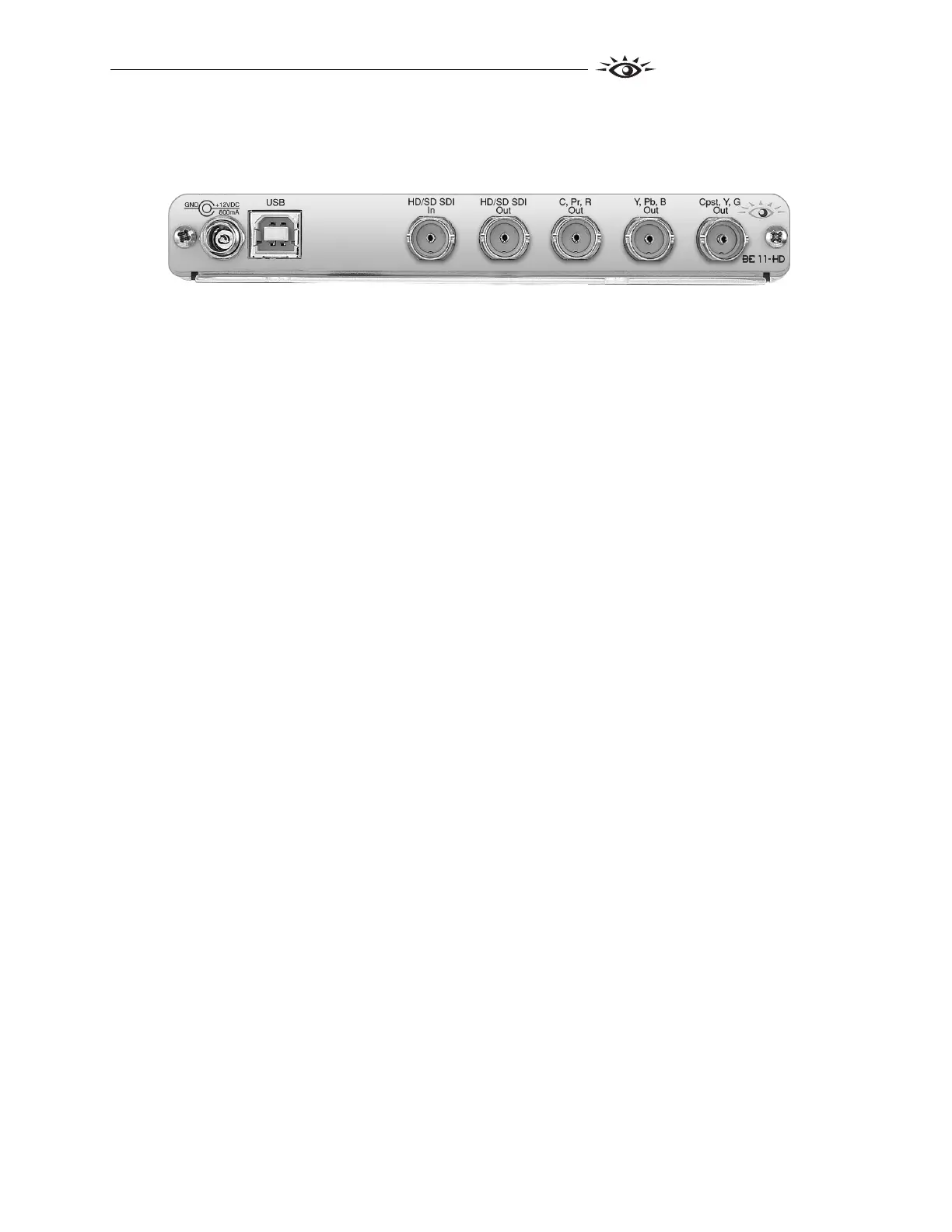

BrightEye 11-HD Rear Connectors
