BrightEye 10

BrightEye-7

OPERATION

Control and operation of the BrightEye 10 converter is performed from the front

panel or with the BrightEye Control application.

Some control settings are only available with BrightEye PC or Mac. These parameters

cannot be monitored or controlled with the front panel.

Front Panel Controls and Indicators

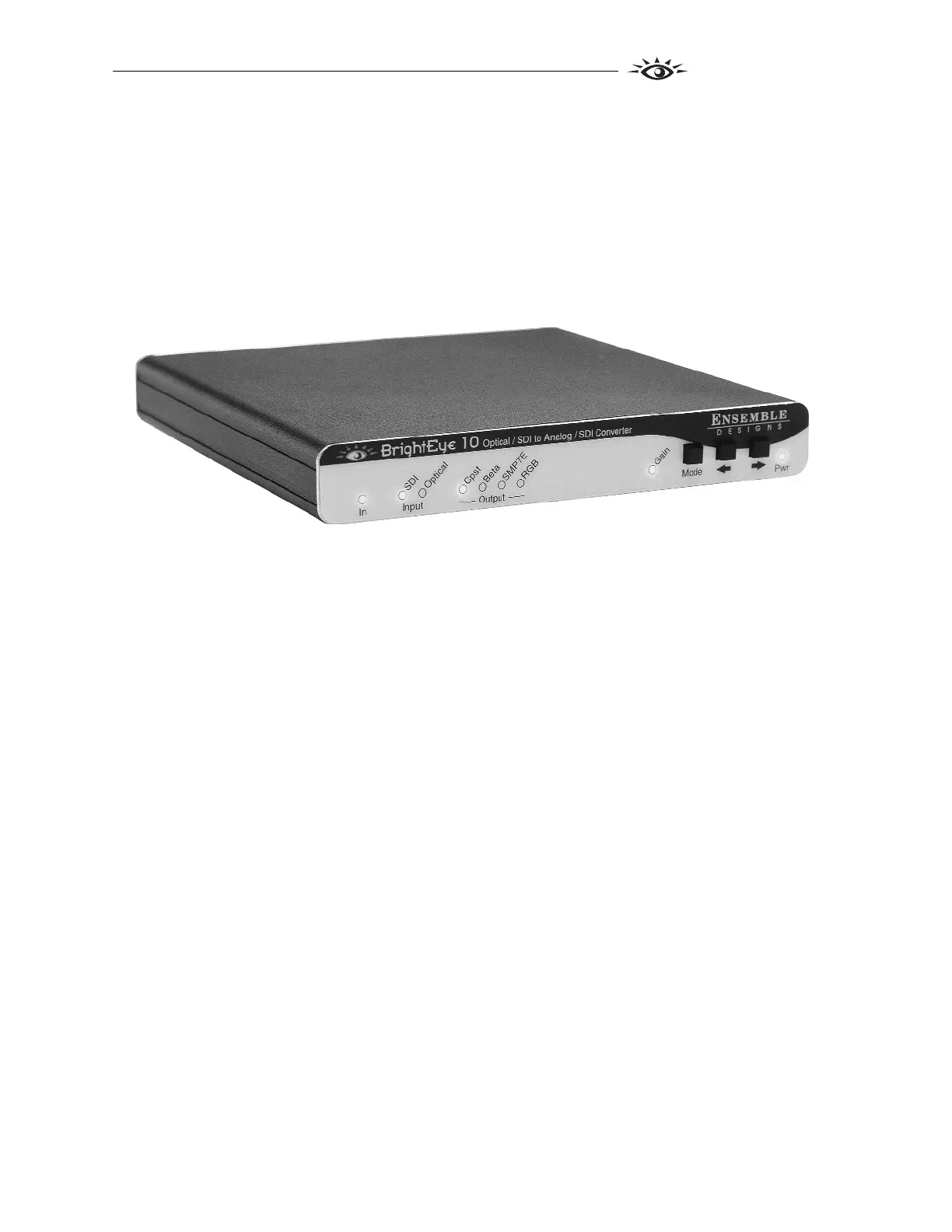

The front panel of the converter, shown in the figure below, provides status indi-

cators and control over video input and output selection, and gain.

Status Indicators

The following status indicators are provided on the front panel:

Illuminates green when an input for the currently selected video format is

detected on the input connector.

Input

The currently selected input type (SDI or Optical) will illuminate green.

Output

The currently selected output format (Cpst {S-Video}, Beta, SMPTE, or RGB)

will illuminate green.

Gain

Illuminates green when output gain is set to its nominal or unity value.

Illuminates red when gain is set higher or lower than nominal setting.

Pwr (Power)

Illuminates green when power is applied to the converter and the internal

voltage regulator is functioning correctly.

BrightEye 10 Front Panel

NOTE:
