Installing the Thermostat

2

3

1

4

Attention:

Before changing the thermostat, disconnect the heating system from the mains power in your at. This will

prevent potential injury by electric current.

Placement of the Thermostat

The placement of the thermostat signicantly aects its functioning. Choose a location where members of

the family spend most of their time, preferably on the inside wall where air circulates freely, with no direct

sunlight. Do not place the thermostat in the vicinity of heat sources (such as TV sets, radiators, fridges),

or close to a door (due to frequent shocks or vibrations). If you do not follow these recommendations, the

thermostat will not maintain room temperature correctly.

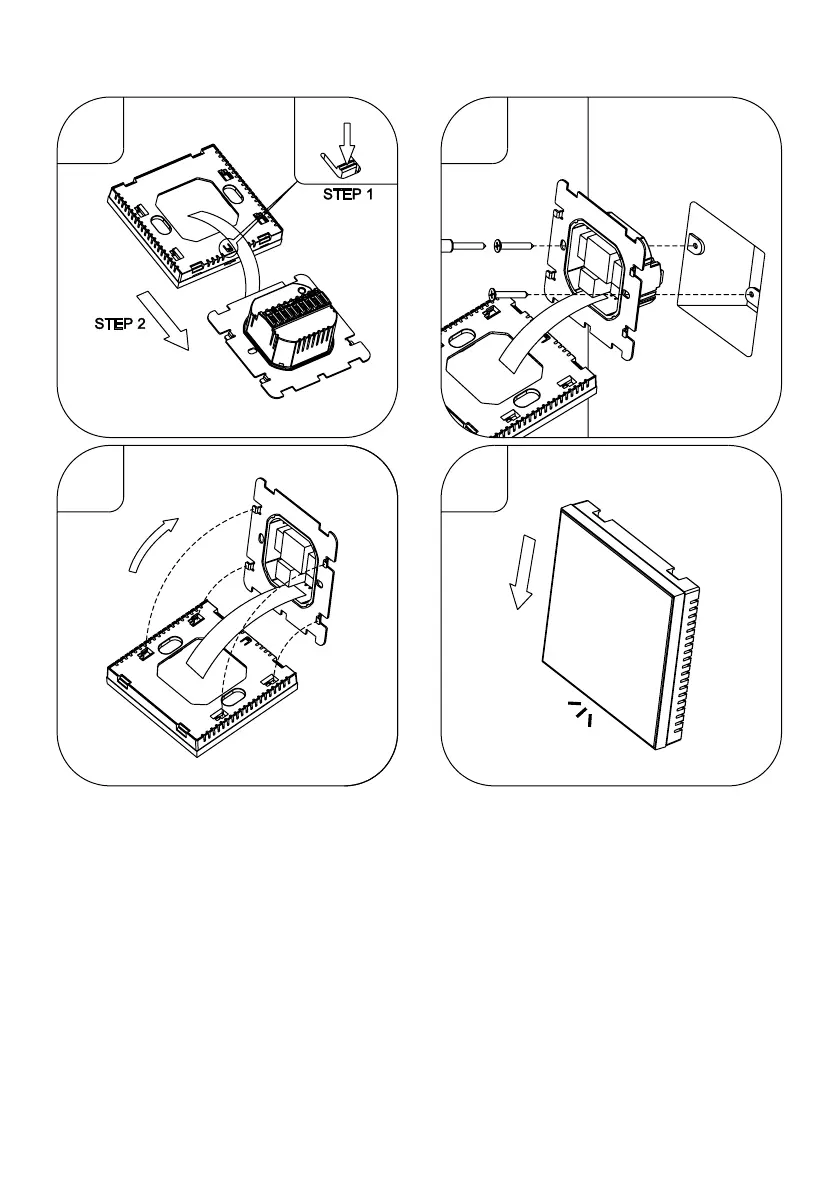

1. Use a screwdriver to press on the internal lock and slide out the metal frame. If necessary, carefully

disconnect the internal connector joining the two parts of the thermostat together.

2. Install the mounting plate onto a suitable junction box, e.g. KU 68.

3. Connect the wires leading out of the junction box to the marked terminals on the thermostat in accordance

with the wiring diagram. Reconnect the internal connector, t the thermostat back onto the mounting

plate and secure it with the metal frame.

4. Replace the front cover.
