13 Description
Display Corlo Touch KNX • Status: 30.08.2021 • Technical changes and errors reserved.
Connect KNX bus, auxiliary voltage und where required the connection line inputs to
the display unit.

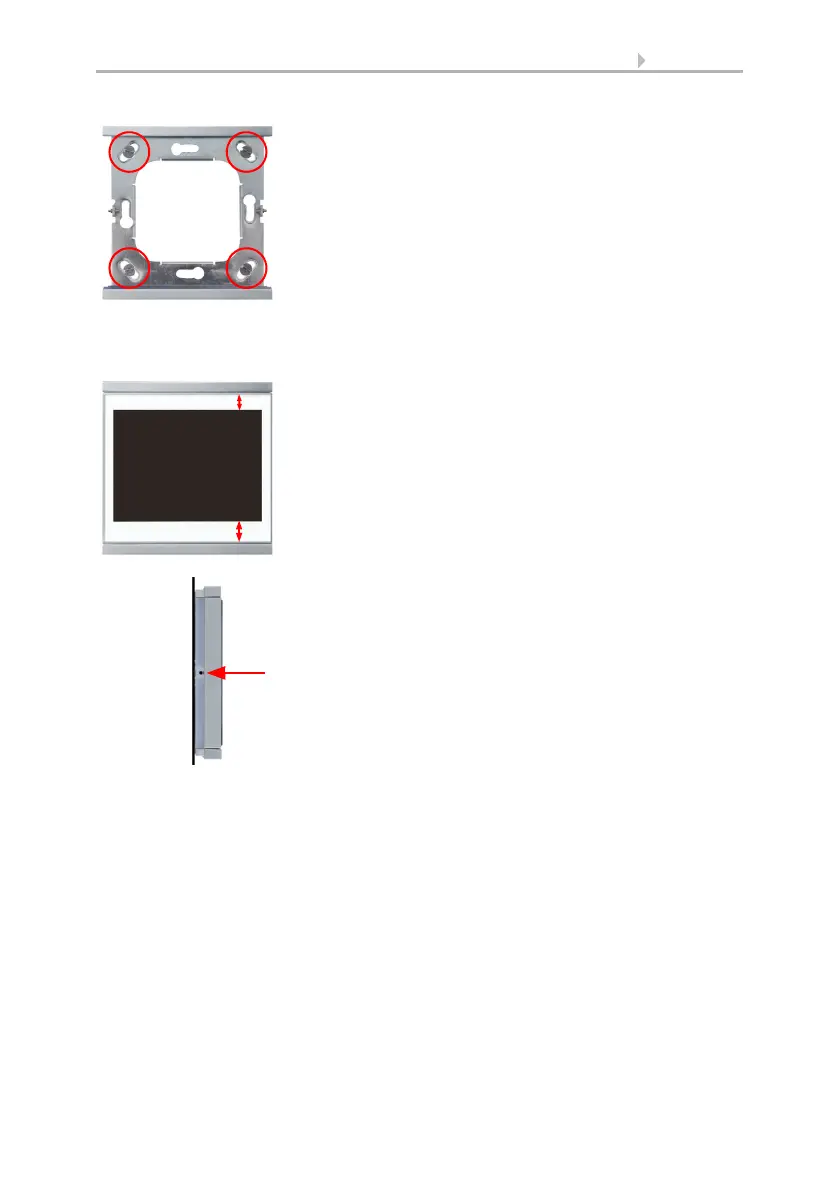

Fig. 4
If the screw domes of the box used are not covered with
the frame's longitudinal holes,
the frame can alternatively be bolted via the four outside
holes (e.g. for boxes from Swiss systems or other
installation systems).
Fig. 5
The display unit can now be put in place. The wider part
of the display edge must
be at the bottom.
The display unit engages on the right and left sides and
is also held by magnets.
Fig. 6
To remove the display unit from the frame, press one of
the snaplock connections on the side of the device with a
pointed instrument. You can now pull the device to the
front at the unlocked side und remove it.
