52 System settings via touch display

Display Corlo Touch KNX 5in • Status: 30.08.2021 • Technical changes and errors reserved.

Then use the Next key (bottom right) to skip to the next setting.

Confirm with OK to save and return to the previous menu selection.

Or cancel using the skip back arrow or the house button .

2.9. Alarm

The Display Corlo Touch KNX 5in may trigger a wake-up call with a sound alarm

and flashing display at a pre-set time. At the same time, the display shows the time

and a button to switch the alarm off.

If the alarm is not switched off manually, it stops by itself after the set alarm time is

reached. Alternatively, the wake-up call can be switched off via the bus. After the

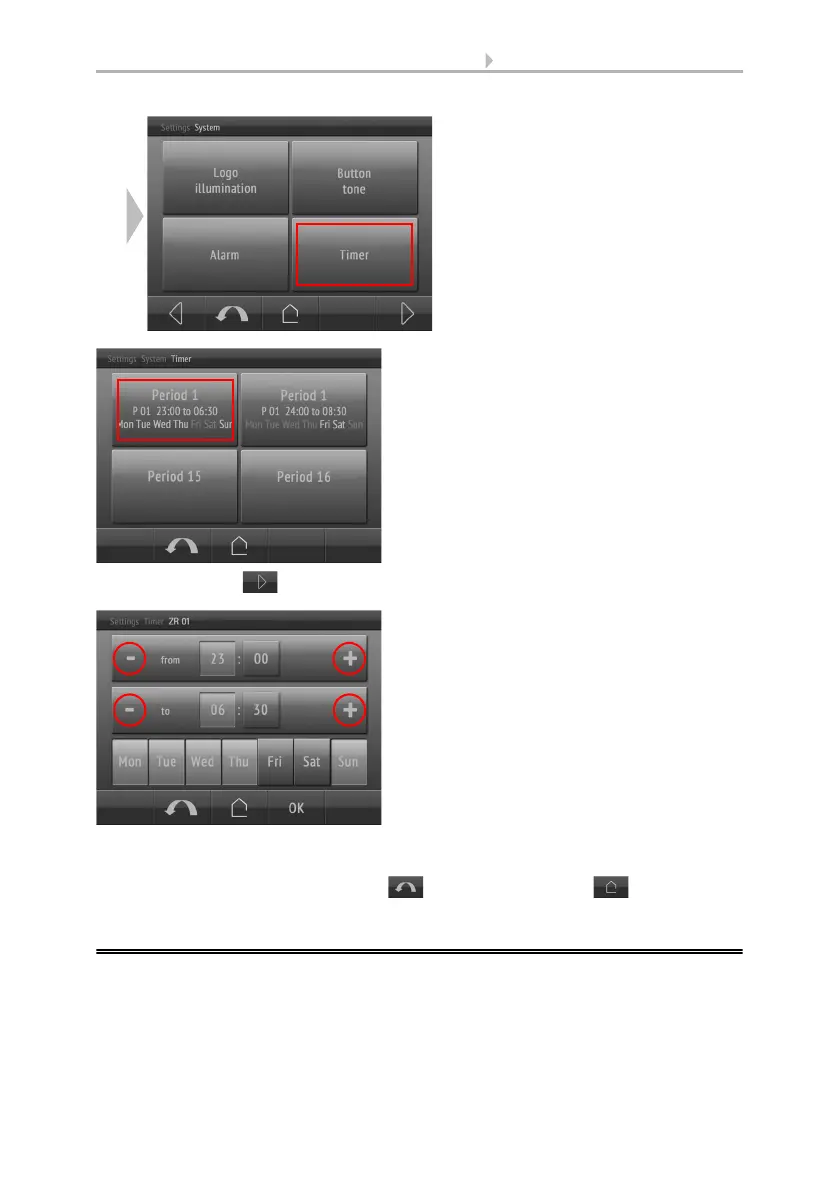

Select the period you wish to modify.

Only the periods preconfigured in the ETS

are displayed.

In the example, period 15 and 16 have been

configured as inputs in the ETS. The timer

information arrives via the bus, no

modification may be applied.

Set the start and end of the period

respectively. In order to do this, activate the

field for the hour and then for the minutes

and sue the +/- buttons on the rocker to

adjust the desired time.

Select the day of the week on which the time

period should be activated.

In the example, the period lasts from 07:00

to 09:30 and is active Sunday through

Thursday.
