28 Operating the device via the touch display
Room Controller Cala Touch KNX • Version: 13.07.2022 • Technical changes and errors excepted.
(1) name
(2) button for activating or deactivating the entire HCL control
(3) button for switching between manual and automatic
(4) button for the sequence setting menus
(5) currently running sequence and the current values
As long as no time is received via the bus, "No time available" is displayed. As long as
the current time is not covered by a sequence, "Time not in sequence" is displayed.
Function details can be set in the ETS.
HCL control, page 63
In HCL control, the day can be divided into up to 8 sequences. For each sequence, that
means each period, target values for color temperature and brightness in % are set. Be-
tween start value and end value (stop value), the controller calculates the course of the
values linearly. It can be defined in the ETS as of which change the values are sent to
the bus, thus how fine the gradations should be.
(2) The entire HCL control can be activated and deactivated with the On / Off button.
The button displays the current status.
(3) The status Automatic (A) or Manual (M) is displayed and can also be changed by
touching the button. Manual operation of the light via the bus or button will turn the
HCL control inactive until reset or switch to "A" with this button.
The automatic reset can be set in the ETS and takes place either through an object or
after the expiry of a time.
(4) Each sequence can be set and changed on the display of the Cala Touch KNX.
Touch the settings button to enter the sequence area.
1

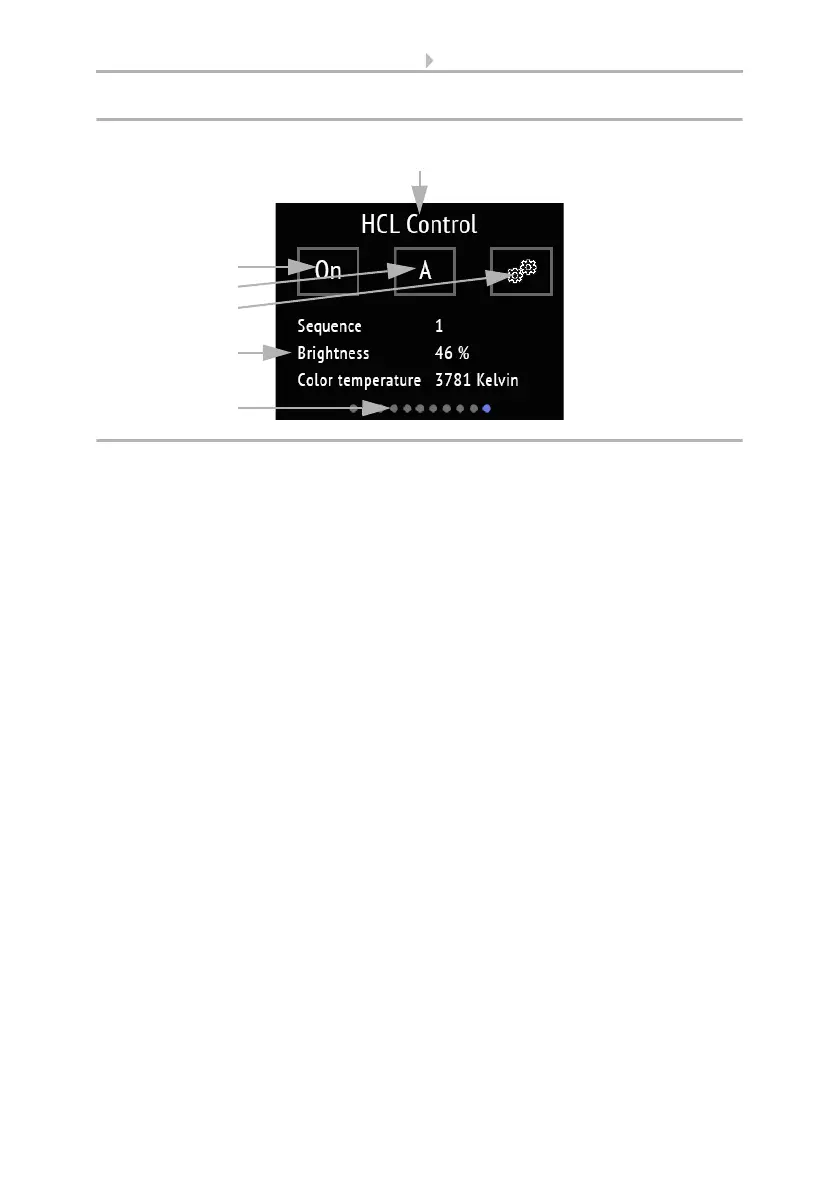

Fig. 21: Menü HCL control
4
6
2
3
5
