6 Installation and commissioning

Cala KNX T 201/202 Sunblind push button • Version: 04.10.2021 • Technical changes and errors excepted.

CAUTION!

Live voltage!

There are unprotected live components inside the device.

• Inspect the device for damage before installation. Only put undamaged

devices into operation.

• Comply with the locally applicable directives, regulations and provisions for

electrical installation.

• Immediately take the device or system out of service and secure it against

unintentional switch-on if risk-free operation is no longer guaranteed.

Use the device exclusively for building automation and observe the operating

instructions. Improper use, modifications to the device or failure to observe the

operating instructions will invalidate any warranty or guarantee claims.

Operate the device only as a fixed-site installation, i.e. only in assembled condition and

after conclusion of all installation and operational start-up tasks, and only in the

surroundings designated for it.

Elsner Elektronik is not liable for any changes in norms and standards which may occur

after publication of these operating instructions.

2.1. Installation position

The Cala KNX T 201/202 Sunblind push button is installed on a device socket.

May be installed and operated in dry interior rooms only.

When selecting an installation location, ensure that the measurement results are

affected as little as possible by external influences. Possible sources of interference

include:

• Direct sunlight

• Drafts from windows and doors

• Draft from ducts which lead from other rooms or from the outside to the

junction box in which the sensor is mounted

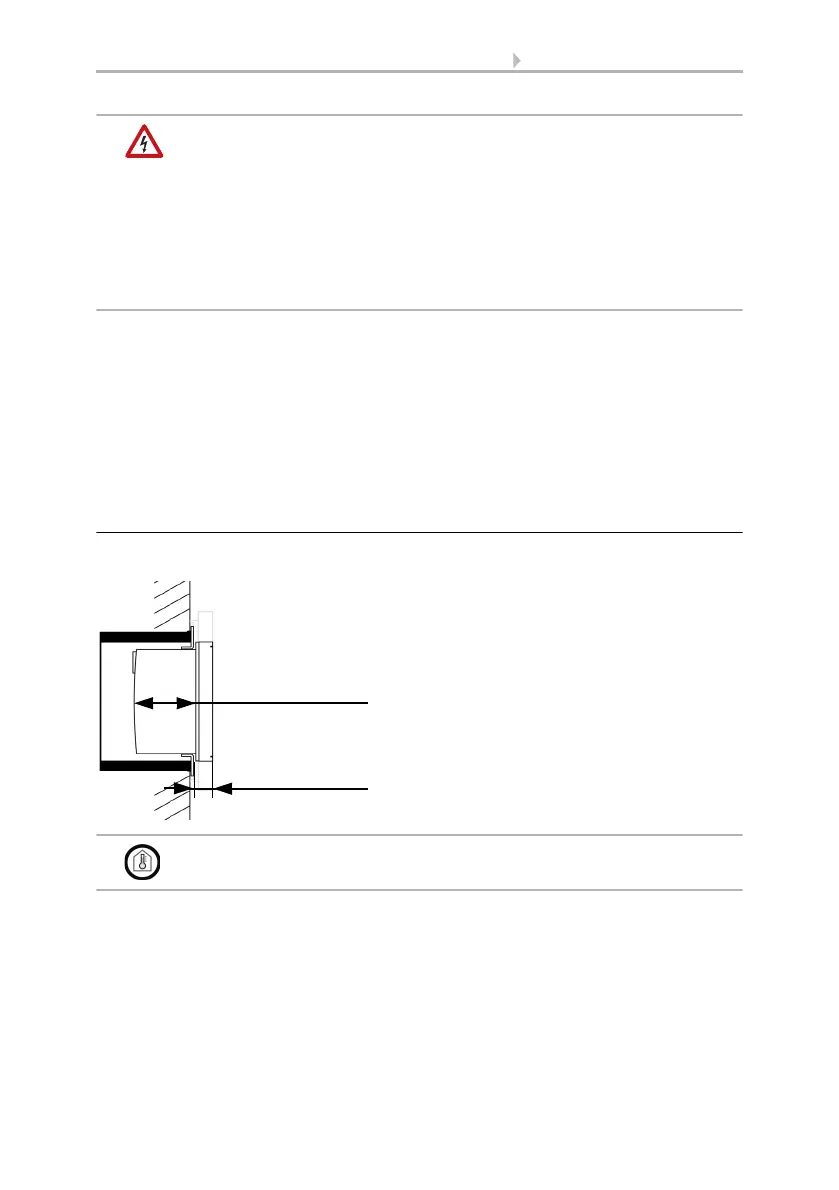

Fig. 2: Sectional drawing.

The Cala KNX T 201/202 Sunblind push

button fits in a standard connector socket (Ø

60 mm, depth 42 mm).

The frame is not included in the delivery!

Installation depth

27 mm

Construction depth

10 mm
