Changing Needle
Turn off the power switch and unplug the machine.
Raise the needle to its highest position.
Then loosen the left or right needle clamp screw for the needle
you are going to remove.
q
Needle clamp screw on the left
w
Needle clamp screw on the right
*UseHA-1SP#14Needleor#11.
8
9HPZPUNVY3V^LYPUN[OL7YLZZLY-VV[
By raising or lowering the presser foot lifter, the
presser foot goes up or down.
:KLOHLQRSHUDWLRQNHHSWKHSUHVVHUIRRWORZHUHG
except when threading the machine or test-
running without threads.
Presser foot
Presser foot lifter
*OHUNPUN5LLKSL
Turn off the power switch and unplug the machine.
Raise the needle to its highest position.
Then loosen the left or right needle clamp screw for the
needle you are going to remove.
Needle clamp screw on the left
Needle clamp screw on the right
Use HA-1SP #14 Needle or #11.
To attach the needle on the right :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the stopper pin, then tighten the needle
clamp screw on the right.
To attach the needle on the left :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the edge of the needle bar, then tighten the
needle clamp screw on the left.
:KHQWKHQHHGOHVDUHVHWFRUUHFWO\WKHOHIW
QHHGOHLVKLJKHUWKDQWKHULJKWRQH
'RQRWXVHDQ\QHHGOHZKLFKLVEHQWRUEOXQW
Needle clamp
Needle
Needle stopper pin
Edge of needle bar
Needle clamp screws
Flat side to the back
8VH+$631HHGOHRU
q
w
e
r
t
y
q
w
r
y
8
9HPZPUNVY3V^LYPUN[OL7YLZZLY-VV[
By raising or lowering the presser foot lifter, the
presser foot goes up or down.
:KLOHLQRSHUDWLRQNHHSWKHSUHVVHUIRRWORZHUHG
except when threading the machine or test-
running without threads.
Presser foot
Presser foot lifter
*OHUNPUN5LLKSL
Turn off the power switch and unplug the machine.
Raise the needle to its highest position.
Then loosen the left or right needle clamp screw for the
needle you are going to remove.
Needle clamp screw on the left
Needle clamp screw on the right
Use HA-1SP #14 Needle or #11.
To attach the needle on the right :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the stopper pin, then tighten the needle
clamp screw on the right.
To attach the needle on the left :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the edge of the needle bar, then tighten the
needle clamp screw on the left.
:KHQWKHQHHGOHVDUHVHWFRUUHFWO\WKHOHIW
QHHGOHLVKLJKHUWKDQWKHULJKWRQH
'RQRWXVHDQ\QHHGOHZKLFKLVEHQWRUEOXQW
Needle clamp
Needle
Needle stopper pin
Edge of needle bar
Needle clamp screws
Flat side to the back
8VH+$631HHGOHRU
q
w
e
r
t
y
q
w
r
y
8
9HPZPUNVY3V^LYPUN[OL7YLZZLY-VV[
By raising or lowering the presser foot lifter, the
presser foot goes up or down.
:KLOHLQRSHUDWLRQNHHSWKHSUHVVHUIRRWORZHUHG
except when threading the machine or test-
running without threads.
Presser foot
Presser foot lifter
*OHUNPUN5LLKSL
Turn off the power switch and unplug the machine.
Raise the needle to its highest position.
Then loosen the left or right needle clamp screw for the
needle you are going to remove.
Needle clamp screw on the left
Needle clamp screw on the right
Use HA-1SP #14 Needle or #11.
To attach the needle on the right :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the stopper pin, then tighten the needle
clamp screw on the right.
To attach the needle on the left :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the edge of the needle bar, then tighten the
needle clamp screw on the left.
:KHQWKHQHHGOHVDUHVHWFRUUHFWO\WKHOHIW
QHHGOHLVKLJKHUWKDQWKHULJKWRQH
'RQRWXVHDQ\QHHGOHZKLFKLVEHQWRUEOXQW
Needle clamp
Needle
Needle stopper pin
Edge of needle bar
Needle clamp screws
Flat side to the back
8VH+$631HHGOHRU
q
w
e
r
t
y
q
w
r
y
8
9HPZPUNVY3V^LYPUN[OL7YLZZLY-VV[
By raising or lowering the presser foot lifter, the
presser foot goes up or down.
:KLOHLQRSHUDWLRQNHHSWKHSUHVVHUIRRWORZHUHG
except when threading the machine or test-
running without threads.
Presser foot
Presser foot lifter
*OHUNPUN5LLKSL
Turn off the power switch and unplug the machine.
Raise the needle to its highest position.
Then loosen the left or right needle clamp screw for the
needle you are going to remove.
Needle clamp screw on the left
Needle clamp screw on the right
Use HA-1SP #14 Needle or #11.
To attach the needle on the right :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the stopper pin, then tighten the needle
clamp screw on the right.
To attach the needle on the left :
Insert a new needle into the needle clamp with the
flat side to the back until the top of the needle
touches the edge of the needle bar, then tighten the
needle clamp screw on the left.
:KHQWKHQHHGOHVDUHVHWFRUUHFWO\WKHOHIW
QHHGOHLVKLJKHUWKDQWKHULJKWRQH
'RQRWXVHDQ\QHHGOHZKLFKLVEHQWRUEOXQW
Needle clamp
Needle
Needle stopper pin
Edge of needle bar
Needle clamp screws
Flat side to the back
8VH+$631HHGOHRU
q
w
e
r
t
y
q
w
r
y

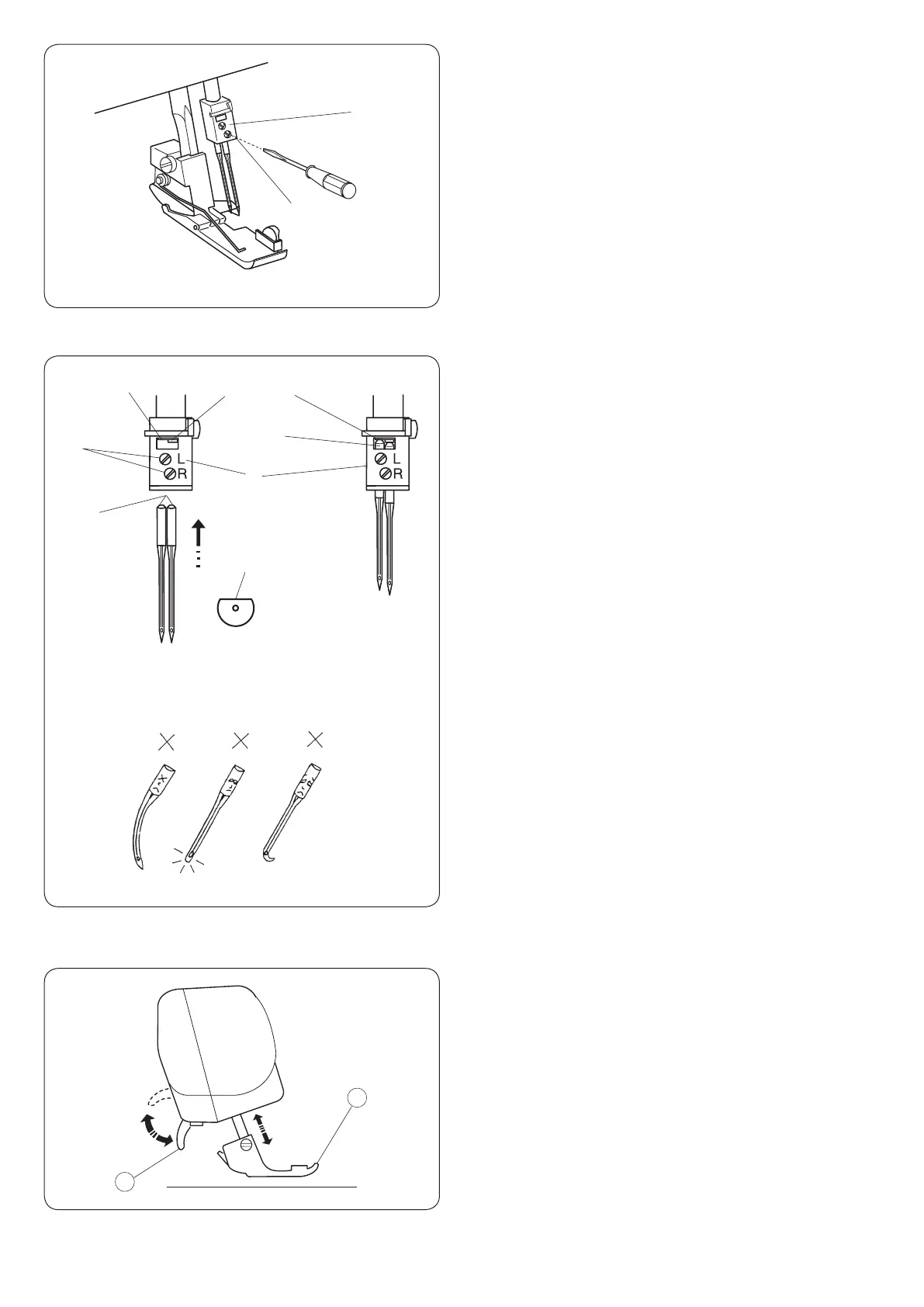

To attach the needle on the right :
Insertanewneedleintotheneedleclampwiththeatsideto
the back until the top of the needle touches the stopper pin,
then tighten the needle clamp screw on the right.
To attach the needle on the left :
Insertanewneedleintotheneedleclampwiththeatsideto
the back until the top of the needle touches the edge of the
needle bar, then tighten the needle clamp screw on the left.
* When the needles are set correctly, the left needle is
higher than the right one.
*UseHA-1SP#14Needleor#11.
q
Needle clamp
w
Needle
e
Needle stopper pin
r
Edge of needle bar
t
Needle clamp screws
y
Flat side to the back
* Do not use any needle which is bent or blunt.
Raising or Lowering the Presser Foot
By raising or lowering the presser foot lifter, the presser foot
goes up or down.
* While in operation, keep the presser foot lowered except
when threading the machine or testrunning without
threads.
q
Presser foot
w
Presser foot lifter
