DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication

between intelligent xtures and controllers. A DMX controller sends DMX data instructions from the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the DATA

“IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when

linking several DMX xtures. The order in which xtures are connected in a DMX line does not inuence

the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed anywhere in

a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is assigned a DMX

address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter

where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via DMX-

512 protocol and features 3 selectable DMX modes. Please refer to the DMX Traits section of this

manual for detailed information. The DMX address can be set using the controls on the rear panel of

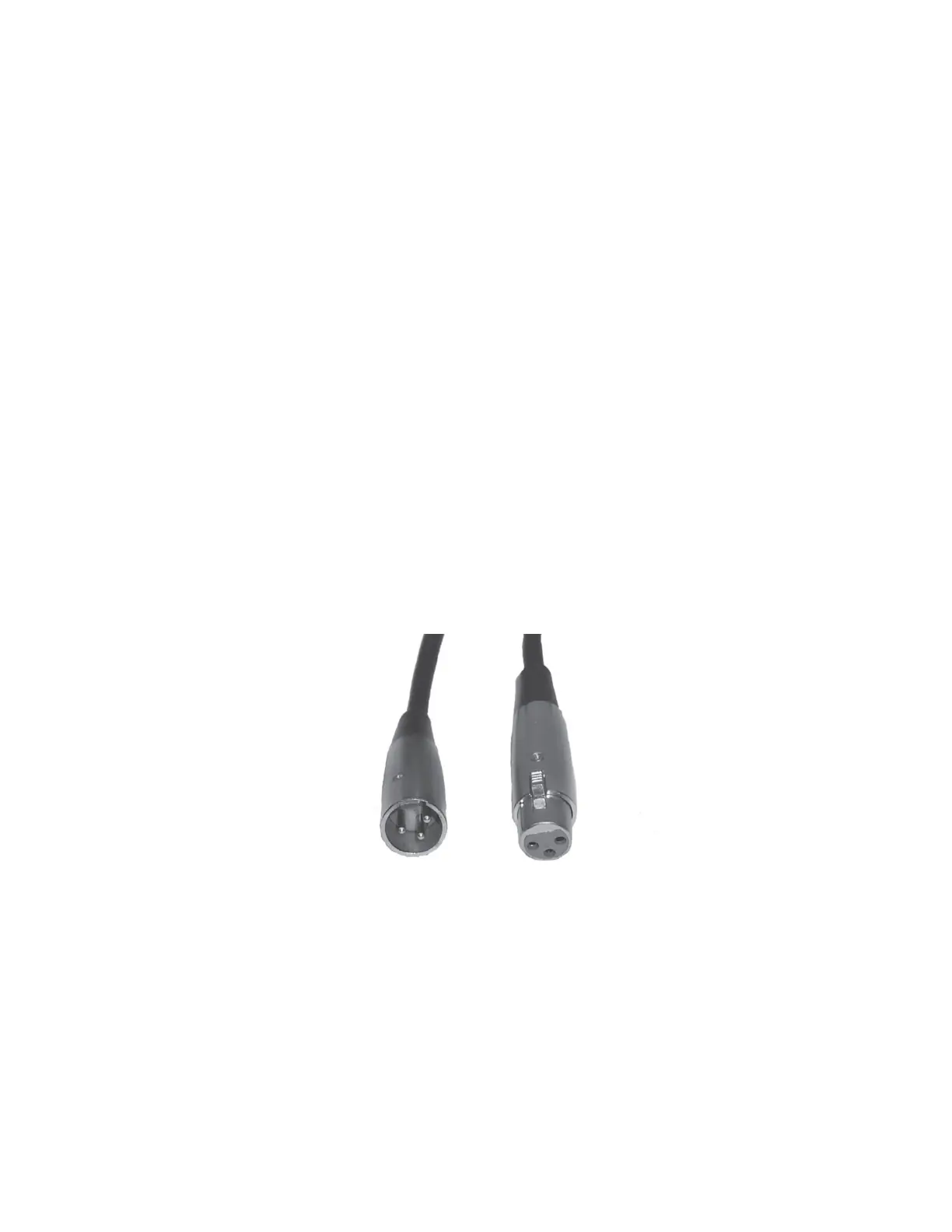

the unit. Your unit and your DMX controller require a 3-pin XLR connector for data input/output. We

recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-

120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables

should be made with a male XLR connector on one end and a female XLR connector on the other. Also

remember that DMX cable must be daisy chained and cannot be split.
