A torch will be required to now inspect the dark turbine area.

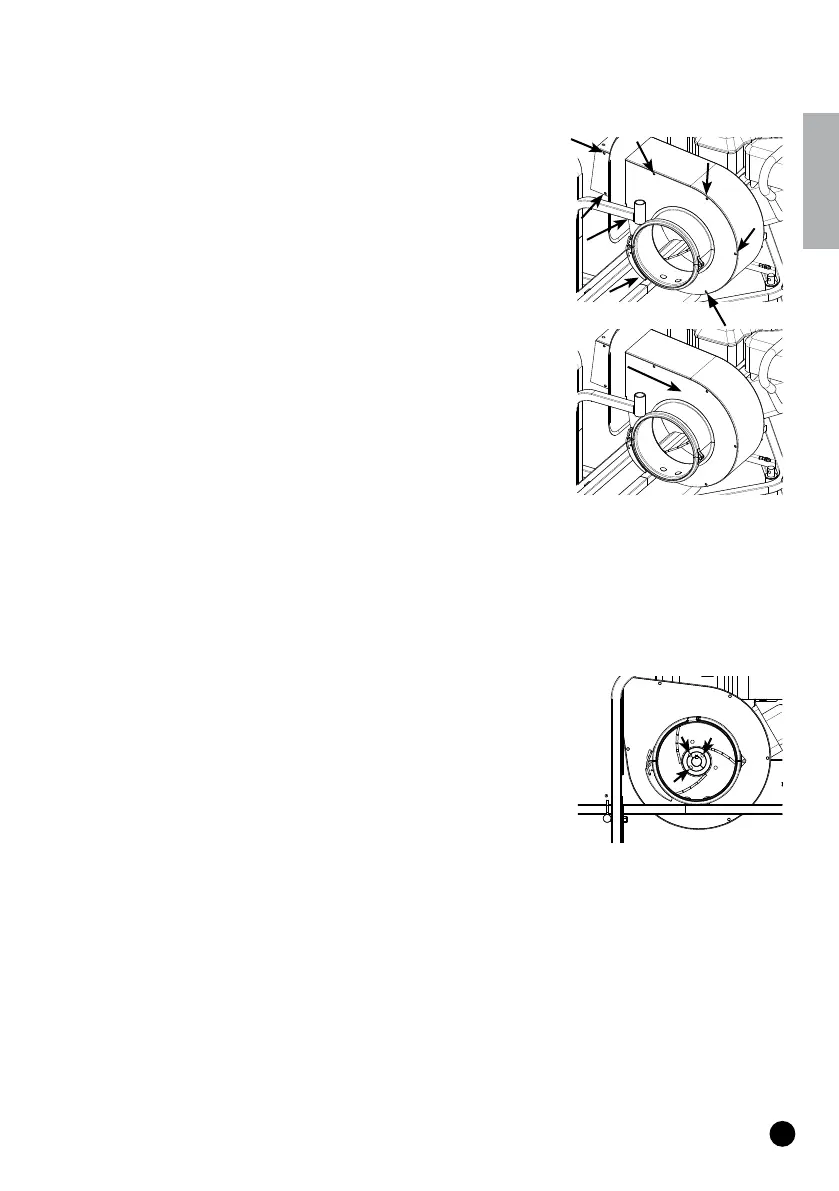

• In order to demount the propeller, the full front plate of the suction unit must be detached.
• To do this, loosen the 9 M6 bolts on the front plate.
• Now slide the front plate to the right for easy removal.
• The front plate removed, we now have easy access to the propel-
ler. It is mounted directly onto the crankshaft. The propeller
attachment is hidden behind a propeller hood.
How to detach the propeller hood?
• At the heart of the propeller is a conic drill socket. There are three holes, two of which carry a
socket-head screw.
• One of the screws should be loosened completely, the other only
half.
• The fully loosened screw is then screwed into the hole that was
initially empty. After screwing it in, secure it tightly. While securing
it, the two parts of the socket head will come apart.
• The entire propeller can now be slid from the crankshaft.
• Make sure not to lose the wedge that is in the crankshaft while
demounting the socket head.
