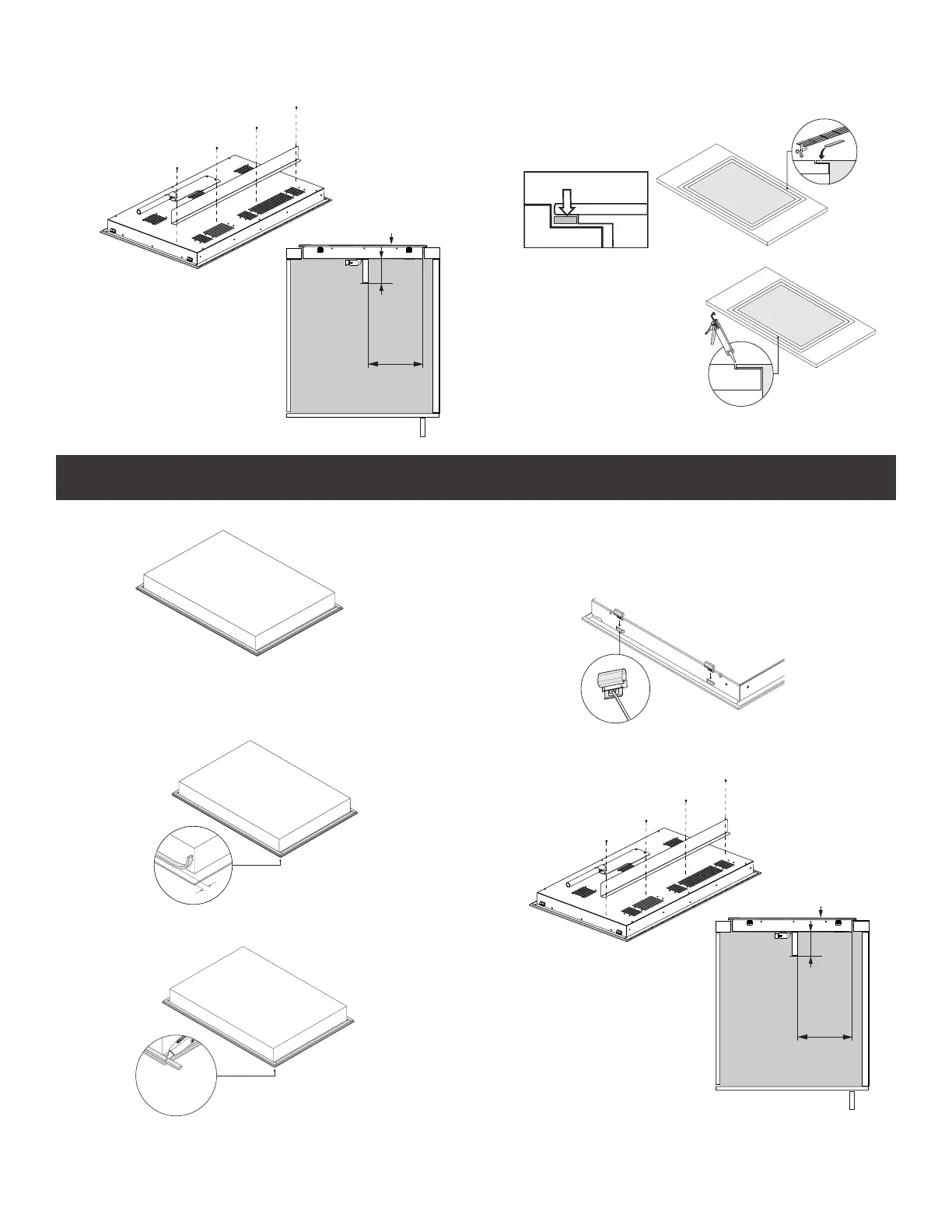

TOP INSTALLATION
1. Turn the cooktop upside down on a protective cover.
2. Apply adhesive foam seal around the glass overhang,
5mm from the edge of the glass. Ensure the adhesive
side facing is down to form a continuous seal around the
cooktop.
5mm
3. Trim the excess sealing material using a sharp cutter or
trimmer knife. Take care not to damage the benchtop.
4. Attach the four side clips to the cooktop chassis. Make
sure the clips are oriented correctly, press the center tab
with a flat screwdriver to pass the clip through and secure
against the plate.
5. The included baffle should be installed with four
screws of 3.4 x 5 mm as shown, to ensure that the
cooling and hot air exhaust ports are separated.
76.2 mm
(3")
150 mm
(5-29/32”)
Front of
the cooktop
6. Lift the cooktop and place it in the center by dropping
carefully both sides of the grill at the same time.
7. Clean the cooktop carefully with glass cleaner and a
cloth.
5. The included baffle should be installed with four
screws of 3.4 x 5 mm as shown, to ensure that the
cooling and hot air exhaust ports are separated.
76.2 mm
(3")
150 mm
(5-29/32”)
Front of
the cooktop
6. Lift the cooktop and place it in the center by dropping
carefully both sides of the grill at the same time.
7. If necessary, spacers should be installed to adjust the hei-
ght of the grill with respect to the countertop.
8. Apply silicone in the gap between countertop and cook-
top. Wipe o any excess silicone.
9. Clean the cooktop carefully with glass cleaner and a cloth.
