3. PANEL LAYOUT

14

3. PANEL LAYOUT

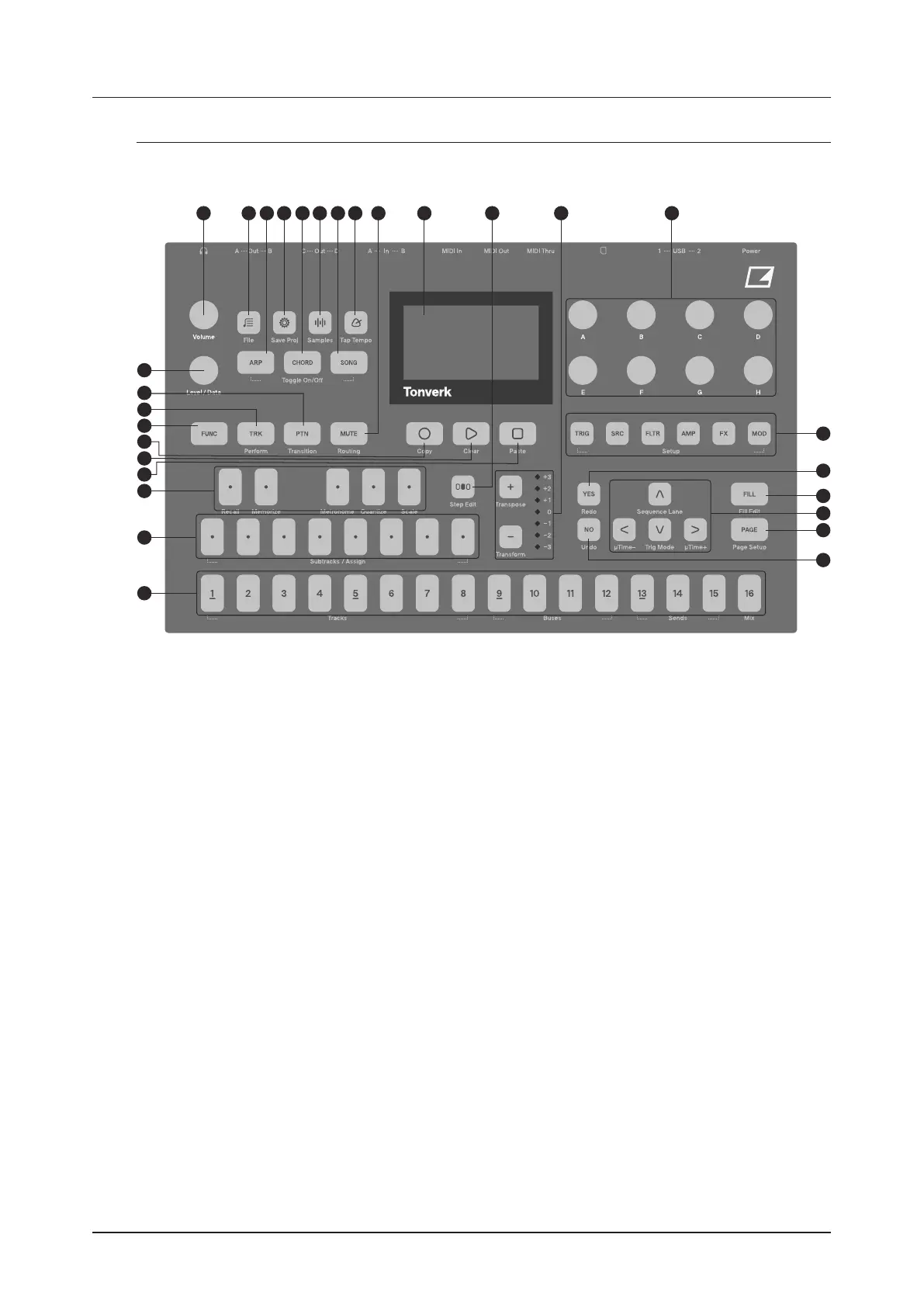

3.1 FRONT PANEL

29

25

24

23

22

21

20

2 4 6

8 9 11 13

1

14

17

16

15

19

3 5

7

18

28

27

26

1210

1. MAIN VOLUME sets the volume for the A/B outputs and the Headphones outputs.

2. [PRESET] opens the LOAD PRESET section of the FILE menu. The secondary function opens the

FILE menu.

3. [ARPEGGIATOR] opens the ARPEGGIATOR menu. The secondary function toggles the arpeggiator

on/o.

4. [SETTINGS] opens the SETTINGS menu, which contains project management, MIDI configuration, and

system settings. The secondary function saves the active project.

5. [CHORD] opens the CHORD/SCALE SETUP menu. The secondary function toggles the CHORD mode

on/o.

6. [SAMPLING] opens the SAMPLING menu, which contains tools for recording audio. The secondary

function opens the SAMPLE BROWSER.

7. [SONG] opens the Song selection screen. The secondary function toggles the SONG mode on/o.

8. [TEMPO] opens the TEMPO menu, where you can adjust the tempo and swing. Here, you also set pa-

rameters related to the metronome. The secondary function enables tapping the tempo.

9. [MUTE] accesses the track mute functionality. The secondary function accesses the ROUTING menu.

10. Screen.

11. [STEP EDIT] accesses the Step Edit functionality.

12. [+]/[-] are used for transposing the [KEYBOARD]. The <KEYBOARD OCTAVE> LEDs shows the cur-

rently selected octave. The secondary functions access the sequencer track transpose and open the

TRANSFORM menu, respectively.

13. DATA ENTRY knobs A-H. Used for setting parameter values. Press and turn the knobs to change values

in larger increments.

14. [PARAMETER PAGE] keys access the PARAMETER pages of the active track. The secondary functions

access dierent sections of the TRACK SETUP menu.
