INSTALLATION
MANUAL
6
6
1004
D0290
D0034
P
F
IMPORTANT
Adjustments should be made by qualified personnel only.
The gas outlet pressure of the
electrovalve is adjusted at the factory. If
you have to make another adjustment,
proced as follows.

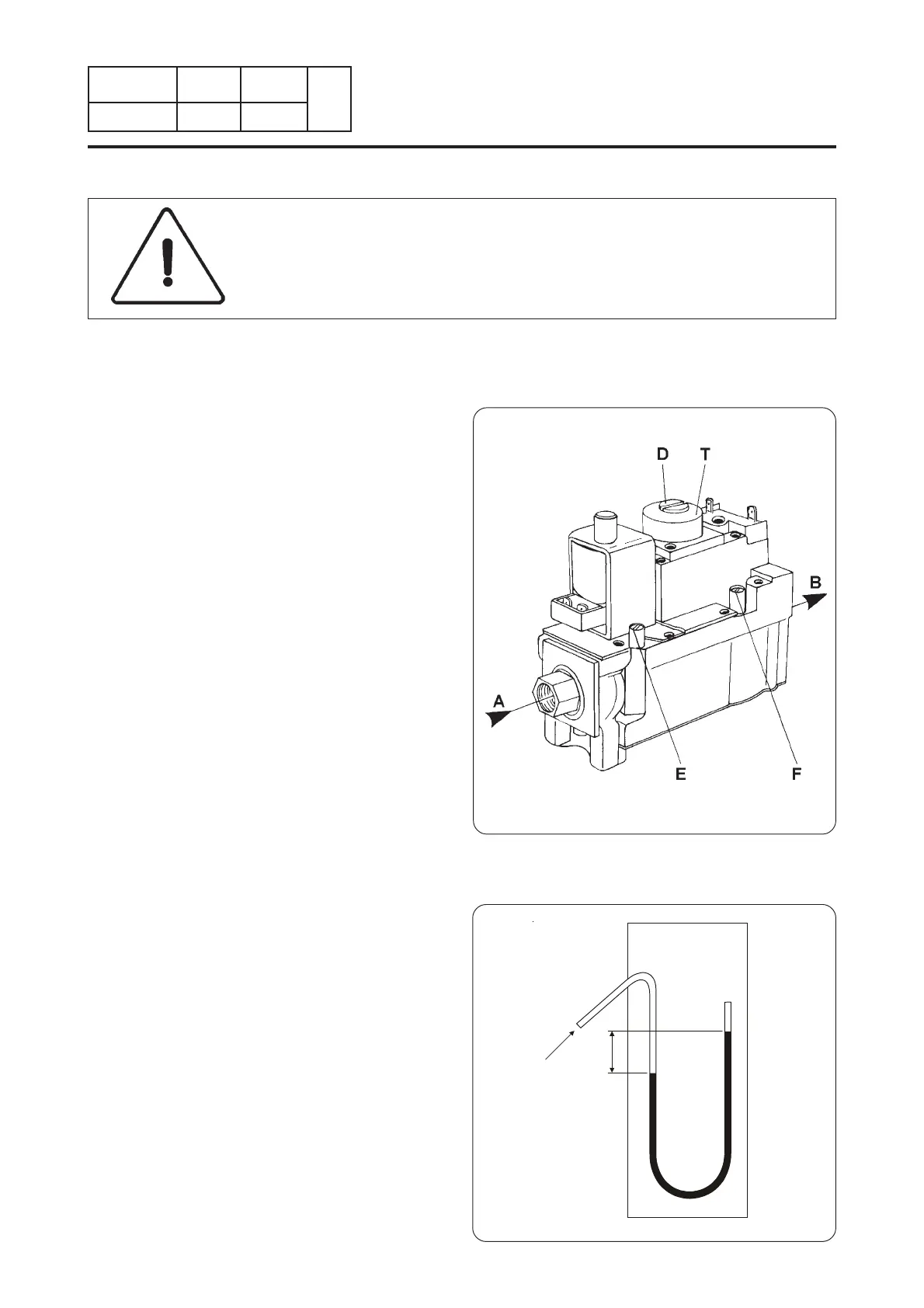

A Inlet
B Outlet
D Outlet pressure regulator
adjustment screw plug
E Inlet pressure tapping
F Outlet pressure tapping
T Regulation head
1- Close the gas inlet and remove the
binding screw from the pressure tapping
(F) and connect the manometer tube.
2- The electricity supply must be ener-
gized otherwise gas will not be supplied
to the burner.
3- Open and check the gas inlet main
burner using the manometer on the
pressure tapping (F).
4- Remove the pressure regulator cap
(D).
5- Using a screwdriver, slowly turn the
adjustment screw until the required
pressure (P) is indicated on manometer
(see tables on the following pages).
Turn the adjustment screw clockwise to
increase and counter-clockwise to
decrease gas pressure.
6- Reset the pressure regulator cap,
close off the gas inlet, remove the
manometer tube and put the binding
screw back in (F).
Adjustement and chesking of the outlet pressure
6. Installation/
Putting into service
