Installation manual
25
7 Drain connection
Connect a 75 mm / 3 inch (50 mm / 1 15/16 inch for models EUD-615, EUD-618, EUD-625) pipe or rubber hose to
the machine’s drain pipe, ensuring a downward flow from the machine. Avoid sharp bends which may prevent proper
draining.
The machine may drain in to a drainage through or into a closed drain system. In either case, be sure to comply with
all applicable national and local plumbing code provisions.

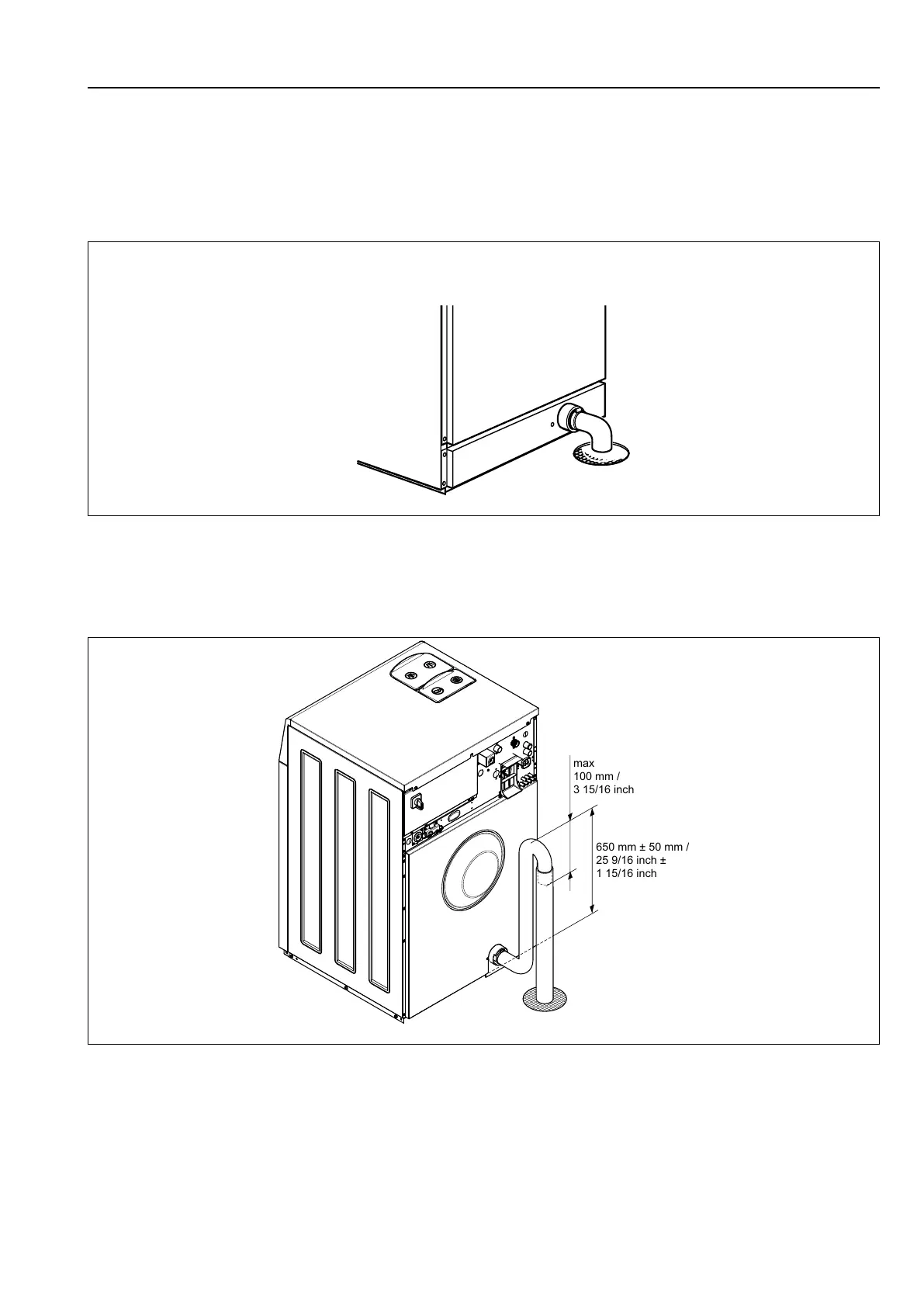

fig.5330
Drain pump (for models EUD-615, EUD-618, EUD-625)
The drainage pipe should be located over a floor drain, drainage channel or the like.
The highest part of the drain hose shall be positioned according to the figure.
Make sure there is no kinks in the hose.
max
100 mm /
3 15/16 inch
650 mm ± 50 mm /
25 9/16 inch ±
1 15/16 inch
fig.X02458
