Installation manual

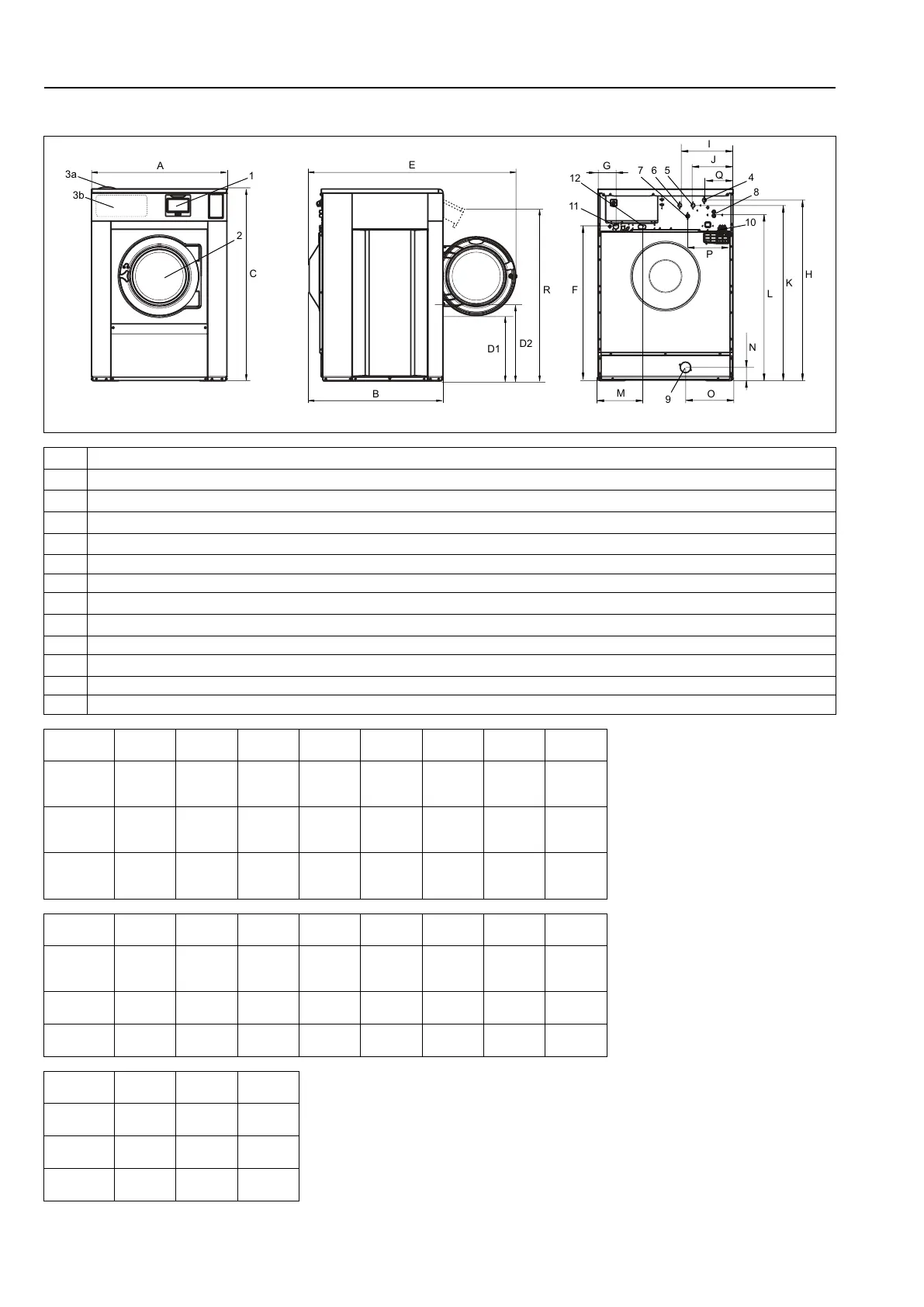

3.1.3 EUD-645CV, EUD-660CV, EUD-680CV
A
C
1
2
3b
3a
B
E
D2
D1
R
I
J
G
8
4
N
H
L
K
11
12
F
9
M
O
10
6
Q
7
P
5
fig.X01115
1 Display
2 Door opening, EUD-645CV, EUD-660CV, EUD-680CV: ā 435 mm / 17 1/8 inch
3a Detergent container
3b Detergent container (option)
4 Cold/Hot water (Detergent container)
5
Cold water
6 Hot water
7
Cold/Hot water or Re-used water with network pressure (option)
8 Re-used water from tank/pump or Liquid detergent supply
9 Drain
10 Liquid detergent supply
11 Electrical connection
12 Steam connection
mm
inch
A B C D1 D2 E F G
EUD-
645CV
970
38 3/16
945
37 3/16
1415
55 11/
16
470
18 1/2
555
21 7/8
1480
58 1/4
1135
44 11/
16
150
5 7/8
EUD-
660CV
1020
40 3/16
990
39
1450
57 1/16
500
19 11/
16
580
22 13/
16
1525
60 1/16
1170
46 1/16
135
5 5/16
EUD-
680CV
1020
40 3/16
1135
44 11/
16
1450
57 1/16
500
19 11/
16
580
22 13/
16
1665
65 9/16
1170
46 1/16
135
5 5/16
mm
inch
H I J K L M N O
EUD-
645CV
1330
52 3/8
400
15 3/4
300
11 13/16
1290
50 13/
16
1210
47 5/8
350
13 3/4
105
4 1/8
335
13 3/16
EUD-
660CV
1365
53 3/4
400
15 3/4
300
11 13/16
1325
52 3/16
1245
49
335
13 3/16
105
4 1/8
360
14 3/16
EUD-
680CV
1365
53 3/4
400
15 3/4
300
11 13/16
1325
52 3/16
1245
49
335
13 3/16
105
4 1/8
360
14 3/16
mm
inch
P Q R
EUD-
645CV
330
13
215
8 7/16
1300
51 3/16
EUD-
660CV
340
13 3/8
215
8 7/16
1335
52 9/16
EUD-
680CV
340
13 3/8
215
8 7/16
1335
52 9/16
