ZLX-G2 Full-range loudspeaker Amplifier DSP | en 21

Bosch Security Systems, LLC

User manual

2024-03 | 02 |

3. Input selection soft keys - Press the soft key to select the input and access the DSP

control menu for the channel. Press the softkey a second time to deselect the channel

and return to the main DSP.

4. INPUT 1 - Balanced INPUT for the connection of signal sources like mixing consoles,

instruments, or microphones. Connections can be established using ¼-inch TRS or XLR

connectors. The XLR connector is switchable for 24V phantom power.

5. INPUT 2 - Balanced INPUT for the connection of signal sources like mixing consoles,

instruments, or microphones. Connections can be established using ¼-inch TRS or XLR

connectors

6. MIX OUT - XLR output sends either the mix of all input signals or the stereo L or stereo

R signal to another loudspeaker or subwoofer.

7. Hi-Z - High impedance connection to connect an instrument or high impedance

microphone via a ¼-inch TS cable. Shared with INPUT2.

8. MAINS IN – AC connection is established via an IEC-connector.

9. POWER - Switch for power ON or OFF of the loudspeaker. The LCD screen lights up

when the power is turned ON, after approximately three seconds.

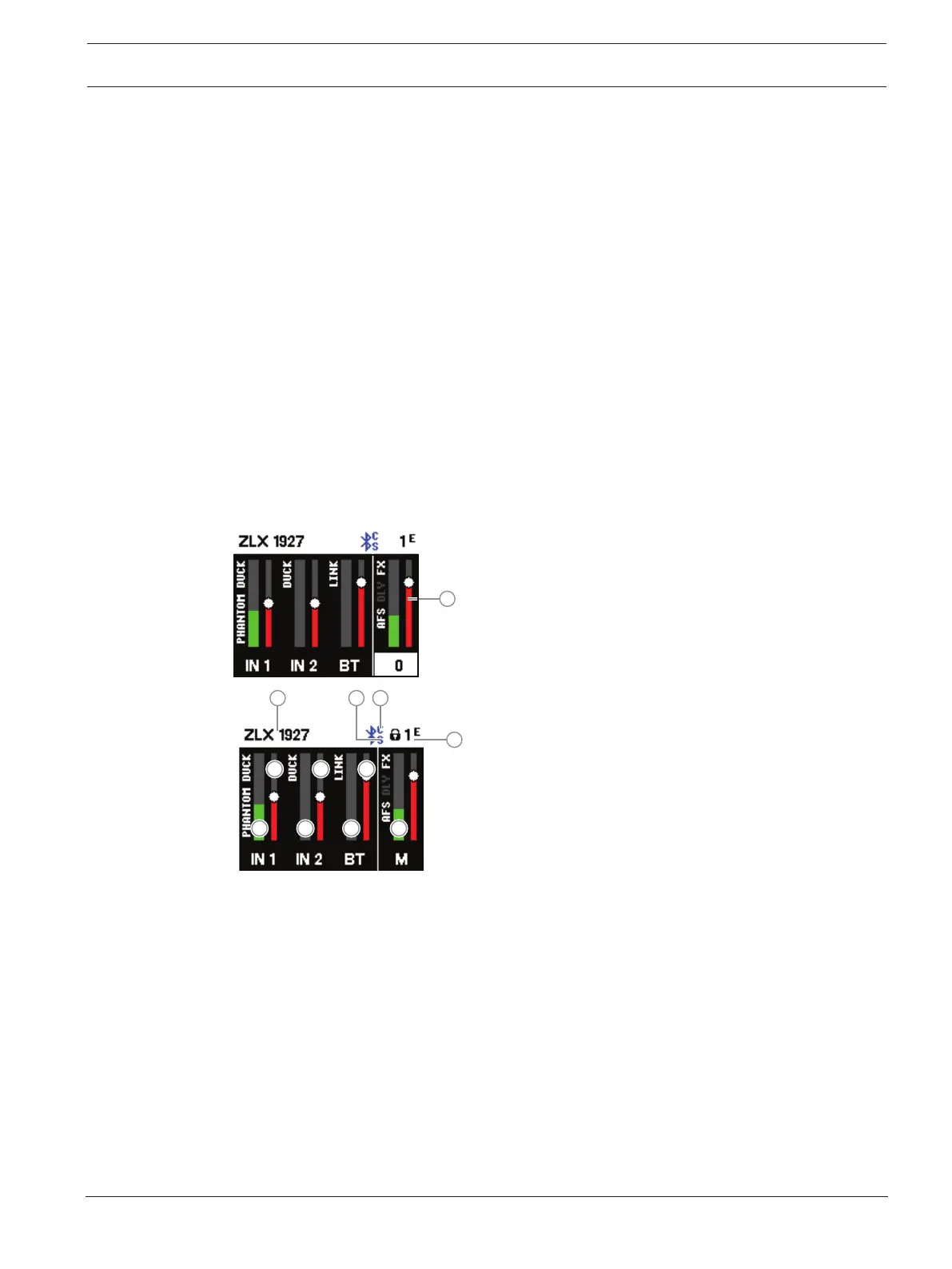

7.2 System status

Normal

1

11

10

12

9

2

3

4

5

6

7

8

1. Indicates the master gain of the system in dB. The range is from -80dB to +10dB, in

1dB increments.

2. IN1 - VU meter displays the signal level of INPUT1 into the amplifier INPUT1

connector. The display of PHANTOM indicates 24V phantom power is switched on.

3. Input level control for IN1.

4. IN2 - VU meter displays the signal level of INPUT2 into the amplifier INPUT2

connector.

5. Input level control for IN2.

6. BT - VU meter displays the signal level of INPUTBT into the amplifier from Bluetooth®

streaming connection.

7. Input level control for BT.

8. M - VU meter displays the signal level of the MAIN output.
