Wiring
The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
- L +
- L +
- R +
- R +
from
amplifier
to speakers
Left 1 Right 1
Right 2
Left 2

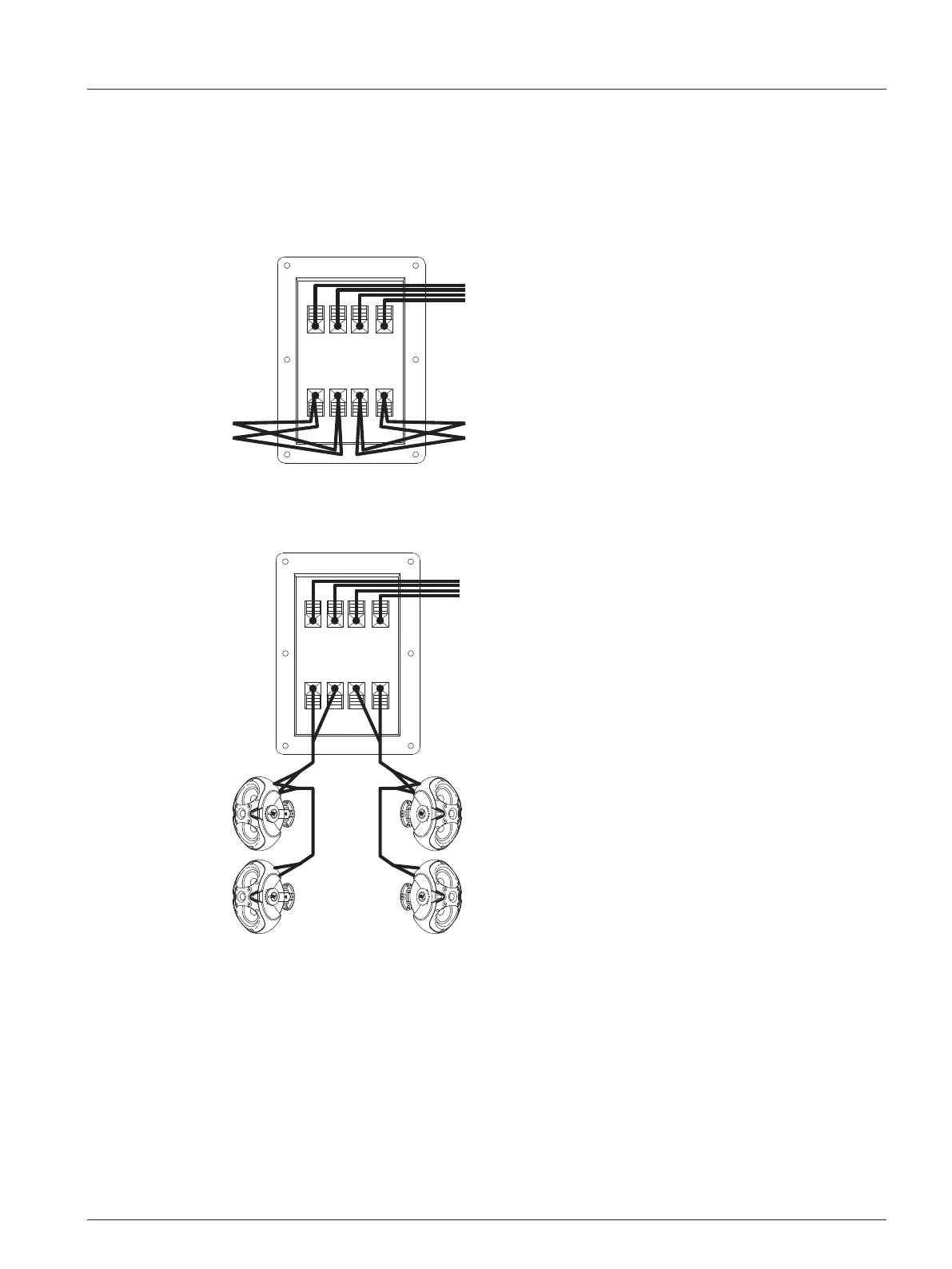

Figure 4.1: Direct wiring plan
– L +
– L +
– R +
– R +
from
amplifier
Left 1
–
+
–
+
–
+
Right 1
Right 2
Left 2
Figure 4.2: Daisy-Chain wiring plan
4
en 9
Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028
