9. While holding the subwoofer, insert the 3/8-16-thread Philips-head screws with the
mounting clip into the remaining mounting hole so that it engages the bottom bracket
rung (2, 3).
10. Finger tighten the screw.
11. Straighten the clip.
Release the subwoofer.
12. Securely tighten the bottom Philip-head screw using a #3 right-angle Philips screwdriver.

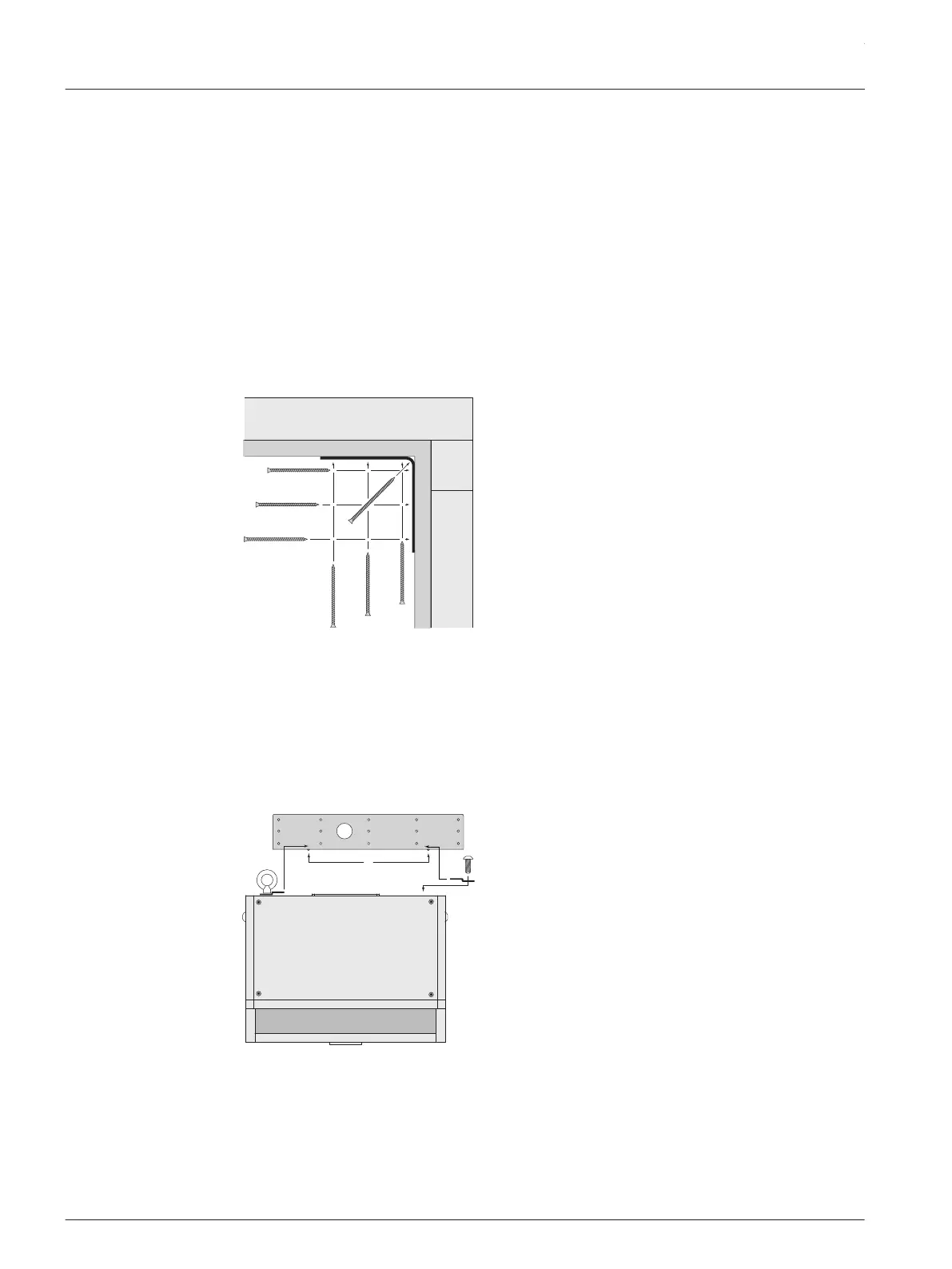

Installing the subwoofer to a corner
To install the subwoofer to a corner, do the following:
1. Attach the bracket to the wall.
Leave 1.5-inches (40 mm) between the bracket and the ceiling. Use a minimum of four
screws.
Stud
Wall
Ceiling Bracket
Joist
Top
plate
2. Wire the speaker, as shown in the wiring section.
3. Remove the two Philip-head screws on the rear of the subwoofer.
4. Mount one mounting clip to the top of the speaker using the eyebolt (supplied).
5. Attach the four rubber feet to the front side edges.
6. Lift the enclosure and center it back into the corner until it touches the bracket rungs.
7. Carefully lower the enclosure so the top mounting clip hooks over the top bracket rung
(1).
A: Rungs; B: This side towards wall
1
3
2
A
B
8. Insert one of the 3/8-16-thread Philips-head screws through the remaining mounting clip
(2, 3).
9. Finger tighten the screw.
10. Straighten the clip.
Release the subwoofer.
11. Securely tighten the bottom Philip-head screw using a #3 right-angle Philips screwdriver.
EVID-S Surface Mount 12” Subwoofers
2017.08 | 01 | F.01U.347.028 Installation manual Electro-Voice
