7.3 Assembling and flying an array
Each end of an EVA module has a pair of upper and lower connection points. These
connections points accept the supplied M10 flathead bolts and are used to:
– Attach the side arms of an EVA grid to the top of the upper array module.
– Attach the tie plates supplied with each module, so that the modules are attached to
each other.
– Attach an EVA-SG2 grid to the bottom module for use as a pull-up point.
A
B
C

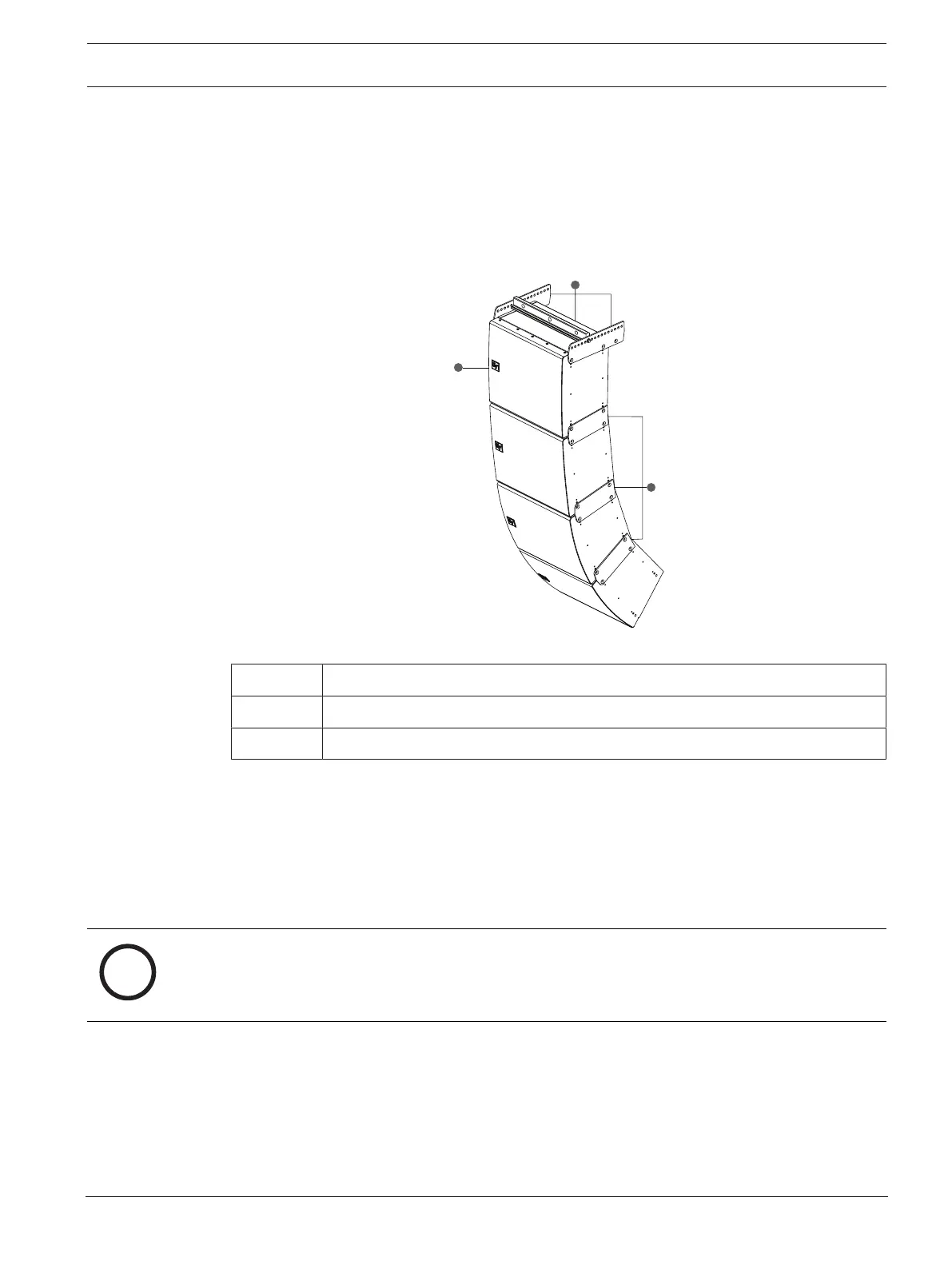

Figure7.10: Typical EVA flying system (cosmetic end panels not shown)
A EVA grid
B EVA modules
C Tie plates (2 supplied with each EVA module)
To assemble the EVA grid:
1. Using the supplied M10 bolts, attach the two side arms of the grid to the upper array
module and tighten securely.
2. Attach a single spreader bar to the side-arm holes shown in PREVIEW Loudspeaker
Software.
These holes provide the required aiming angle of the array.
i
Notice!
When using two spreader bars, attach the spreader bars to the extreme front and back
positions on the side arms. This provides maximum control over the vertical aiming angle of
the array.
3. Attach a chain hoist(s) or other lifting device(s) to the assembled grid and the upper EVA
module.
To assemble the EVA array:
1. Lift the assembly to the point where the second EVA module is slipped under the
suspended partial array.
