ELCO GmbH | 29
Assembly
Operation manual 50.0 | Status 10.2021
5.3.10 Connecting the control cabinet
D WARNING!
Risk of injury from electric shock!
The cables must be deenergised during assembly.
A Deenergise the cables.
A Ensure that the cables remain deenergised during
installation.
D ATTENTION!
Risk of damage caused by the incorrect matching
of connectors!
Having the wrong polarity on the connection terminals
can seriously damage the control mechanism.
A Pay attention to the correct polarity on the
connection terminals and to a right-rotating field.

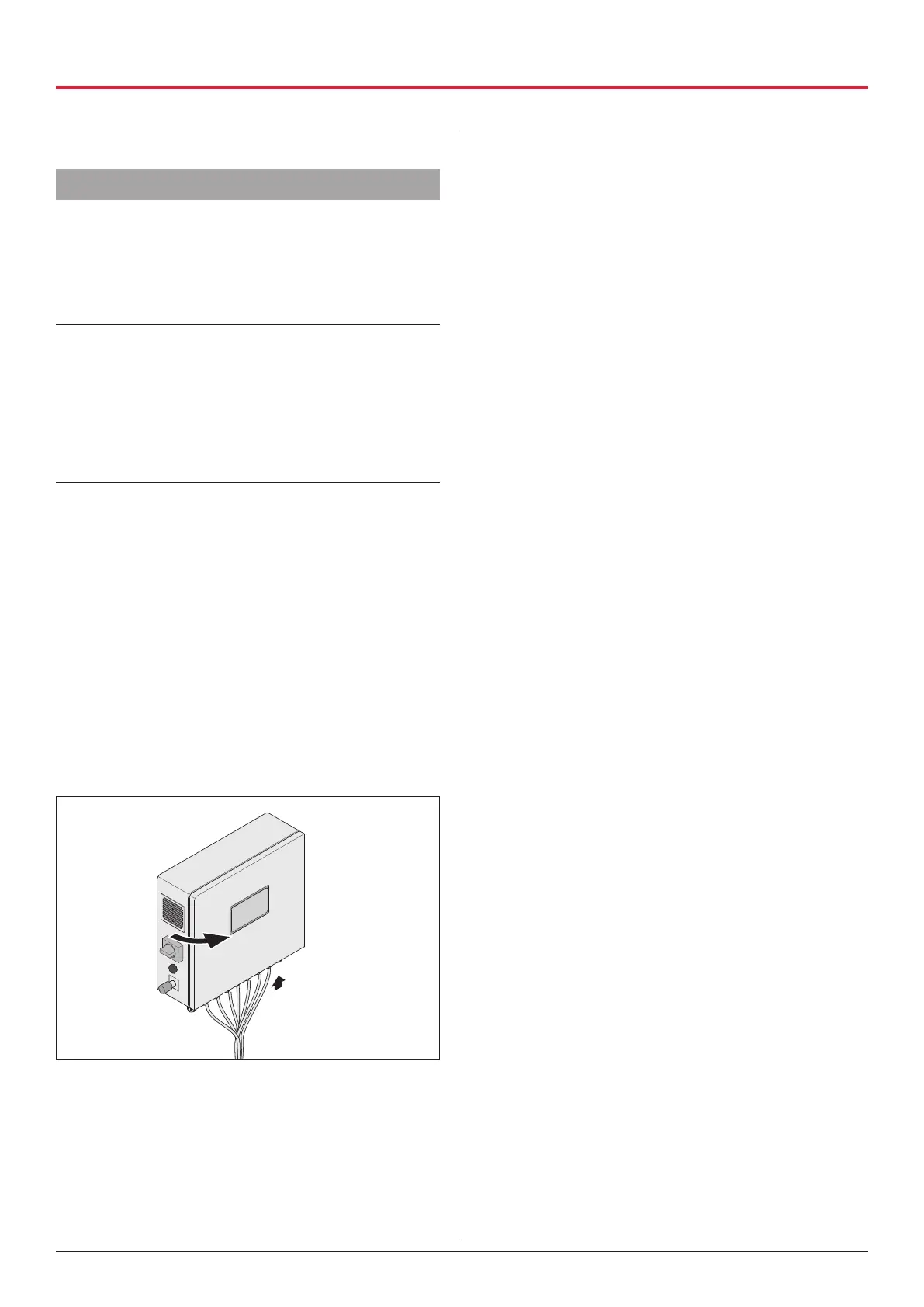

All cables must be fed into the control cabinet through
the cable connections from underneath.
Use the enclosed wiring diagrams to identify the
connection terminals.
Wiring diagrams (on the inside of the control cabinet
door).
Please refer to the technical data for the permissible
cross-sectional areas of the supply lines.
Technical data.
It is necessary to observe the valid regulations (e.g. in
Germany the VDE directives).
A Open the control cabinet.
A Connect the temperature sensors (T1-T5).
A Connect the modem.
A Connect the batteries.
The connection of additional components depends on
the heating system.
D
“12.2 Hydraulic diagrams” (page 38).
A Connect any additional components (e.g. peak load
boiler, equipment of the building control technology)
to the control mechanism.
Once all components have been connected:
A Make sure that the mains connection is
de-energised.
A Connect the supply voltage to the control cabinet.
A Close the control cabinet.
