GRILL BURNER
• Gently unlock, from the burner, the safety valve probe “V” and the ignition electrode
“E” (as indicated in g. 2.5a). Take care not to damage the probe and the ignition
electrode.
• Unscrew and remove the burner securing screw “A” (g. 2.5a).
• Withdraw the burner as shown in gure 2.5b.
• Using a 7 mm box spanner, unscrew the injector (indicated by the arrow in g. 2.5b)
and replace it with a new one selected in accordance with the “Table for the choice of
the injectors”.
• Regulate the air supply to the grill burner as indicated in the section “REGULATION
OF AIR SUPPLY TO OVEN AND GRILL BURNERS”; then replace the burner and the
other components repeating the above steps in reverse order.
IMPORTANT: Pay special attention to replace correctly the safety valve probe
“V” and the ignition electrode “E” as per gure 2.5a. Check the correct operation
of the safety valve and the ignition electrode.
E
V
A
Anchorage
clip
Anchorage
clip
E
V

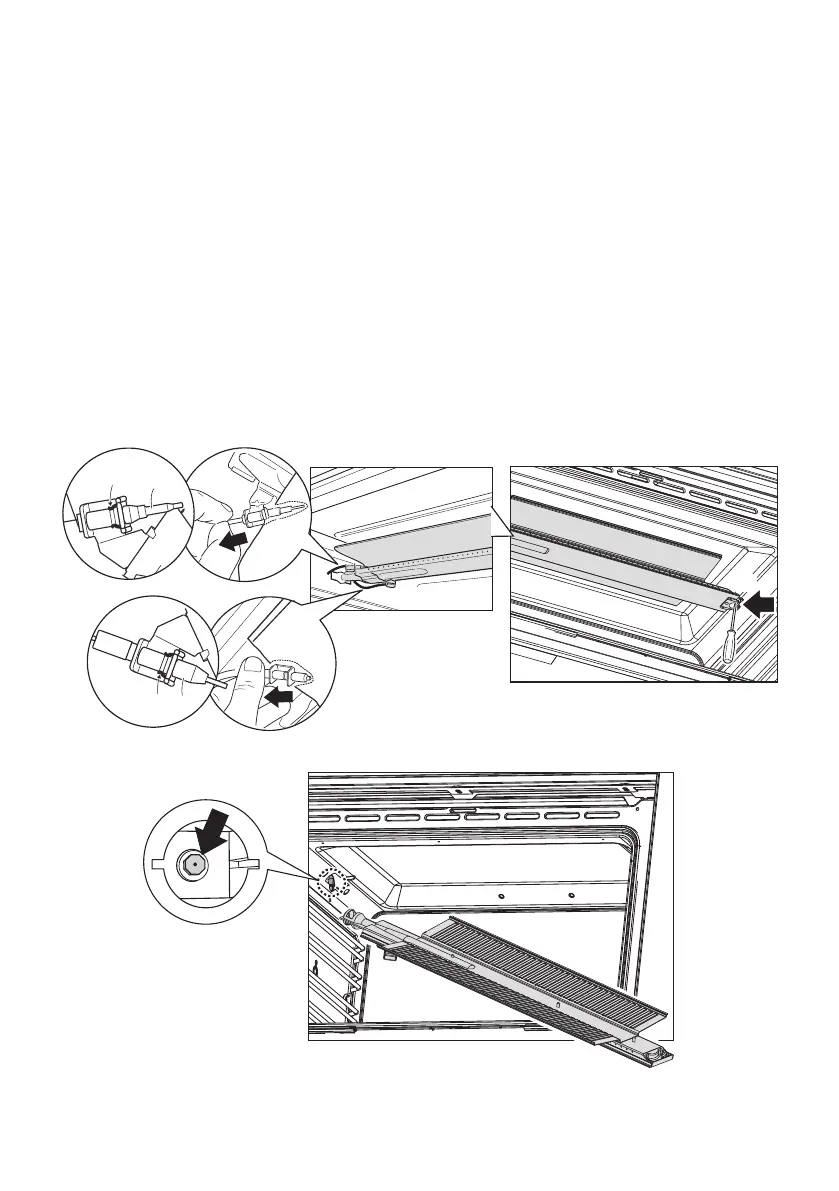

Fig. 2.5a
Fig. 2.5b
