©Elation Professional® - www.elationlighting.com - Waterfall 250™Instruction Manual Page 9
1 2
43 5 6
MASTER - HEAD 1
7 8 9
10
ON
1 2
43 5 6
HEAD 2
7 8 9
10
ON
1 2
43 5 6
HEAD 3
7 8 9
10
ON
1 2
43 5 6
HEAD 4
7 8 9
10
ON

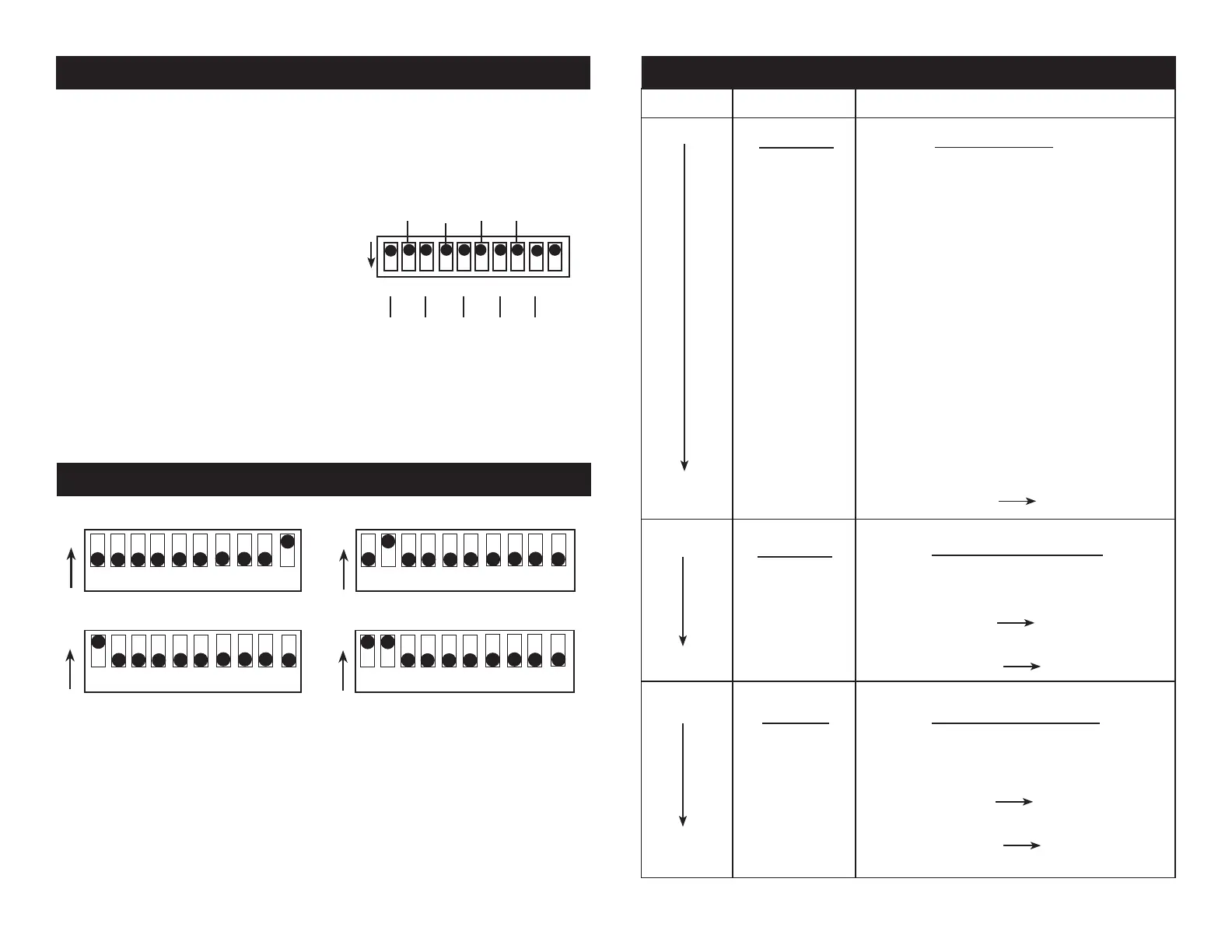

Waterfall 250™ Master/Slave Settings
©Elation Professional® - www.elationlighting.com - Waterfall 250™Instruction Manual Page 10
DMX stands for Digital Multiplex. This is a universal binary language
used as a form of communication between intelligent fixtures. Each
dipswitch represents a binary value.
Dipswitch 1 address equals 1
Dipswitch 2 address equals 2
Dipswitch 3 address equals 4
Dipswitch 4 address equals 8
Dipswitch 5 address equals 16
Dipswitch 6 address equals 32
Dipswitch 7 address equals 64
Dipswitch 8 address equals 128
Dipswitch 9 address equals 256
Dipswitch 10 is used to control the Master/Slave operation. Turning
dipswitch 10 on will activate that unit as a “Master Unit.”
Waterfall 250™ DMX Addressing
DMX CHANNEL
1 2 3 54 7 9 1086
ON
1 4 16 64 256
2 8 32 128
Waterfall 250™ DMX Traits
Channel Value Function
1 0 - 255 COLOR
0 BLACKOUT
1 - 40 WHITE
42 - 49 WHITE/RED
50 - 52 RED
53 - 69 RED/BLUE
70 - 82 BLUE
83 - 96 BLUE/GREEN
97 - 106 GREEN
107 - 121 GREEN/YELLOW
122 - 132 YELLOW
133 - 146 YELLOW/ORANGE
147 - 152 ORANGE
153 - 170 ORANGE/PURPLE
171 - 175 PURPLE
176 - 255 COLOR ROTATION
SLOW FAST
2 0 - 255 TEXTURE GLASS 1
0 NO ROTATION
1 - 129 COUNTER CLOCKWISE ROTATION
FAST SLOW
130 - 255 CLOCKWISE ROTATION
SLOW FAST
3 0 - 255 TEXTURE GLASS 2
0 NO ROTATION
1 - 129 COUNTER CLOCKWISE ROTATION
FAST SLOW
130 - 255 CLOCKWISE ROTATION
SLOW FAST
