LIGHTING CONSOLE PATCHING GUIDELINES
The PROTEUS RAYZOR 1960 is a versatile luminaire which combines two xtures into one
housing, allowing it to produce multiple unique lighting eects typically not found in a single
lighting xture. The DMX layout is designed to oer a variety of options for controlling each
xture eciently.
The main xture contains 19 x 60W RGBW pixel cells, while the SparkLED xture contains
76 x 2W white LEDs. For ease of use the DMX layout is arranged to allow lighting consoles
to separate the xture into multiple segments or parts. It is especially important to arrange
the xture in such segments or parts when using the xture in the full extended 176 channel
DMX mode. For simpler programming, reduced DMX channel modes can be used. However, for
easy recall of interesting pixel animations, both the RGBW and SparkLED xtures contain two
FX systems: one which controls the RGBW cells, and a second that is dedicated to the Spark
LEDs.

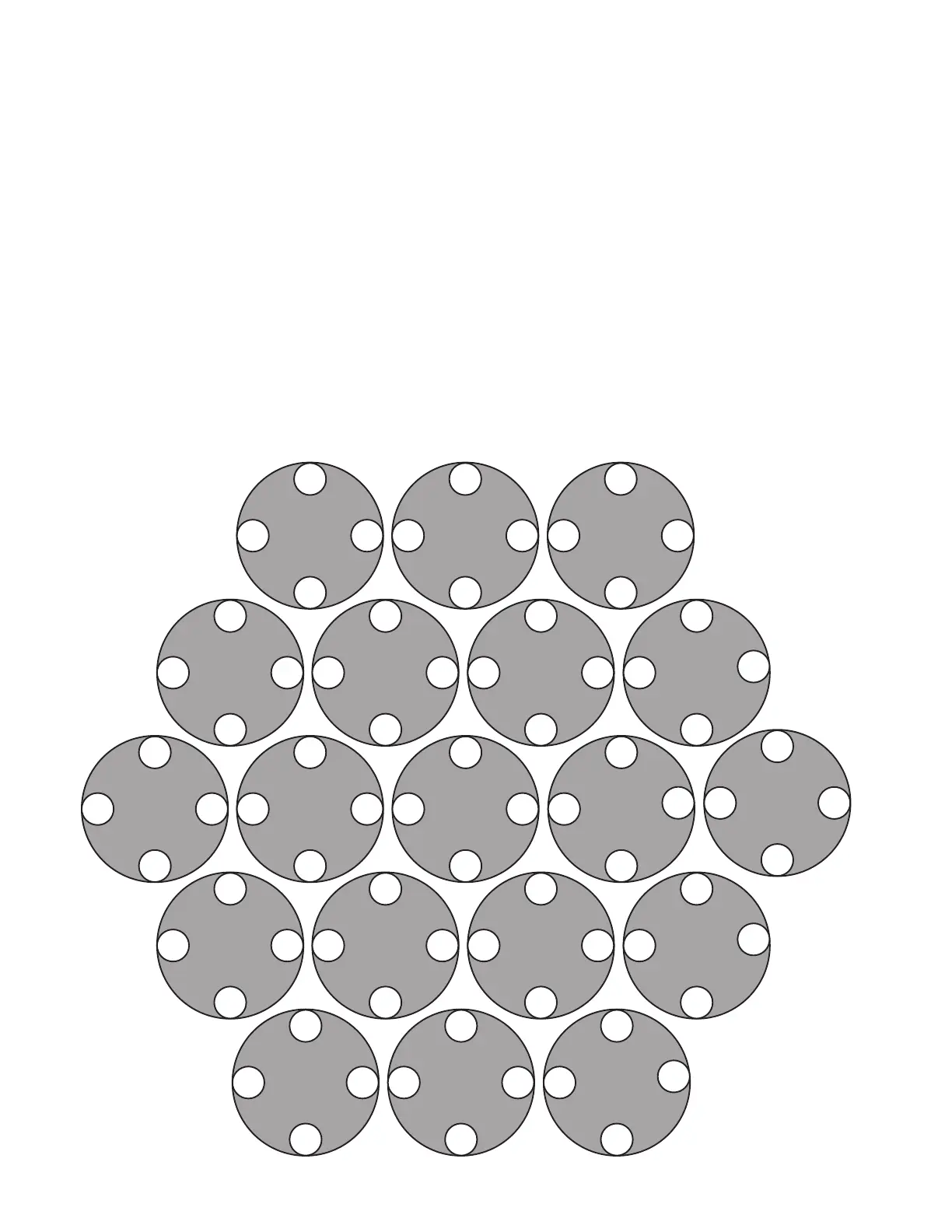

The pixels are arranged in a grid pattern as illustrated below. (RGBW 1-19 | SparkLED 1-76)
