13
INSTALLATION GUIDELINES
OMEGA BRACKET INSTALLATION

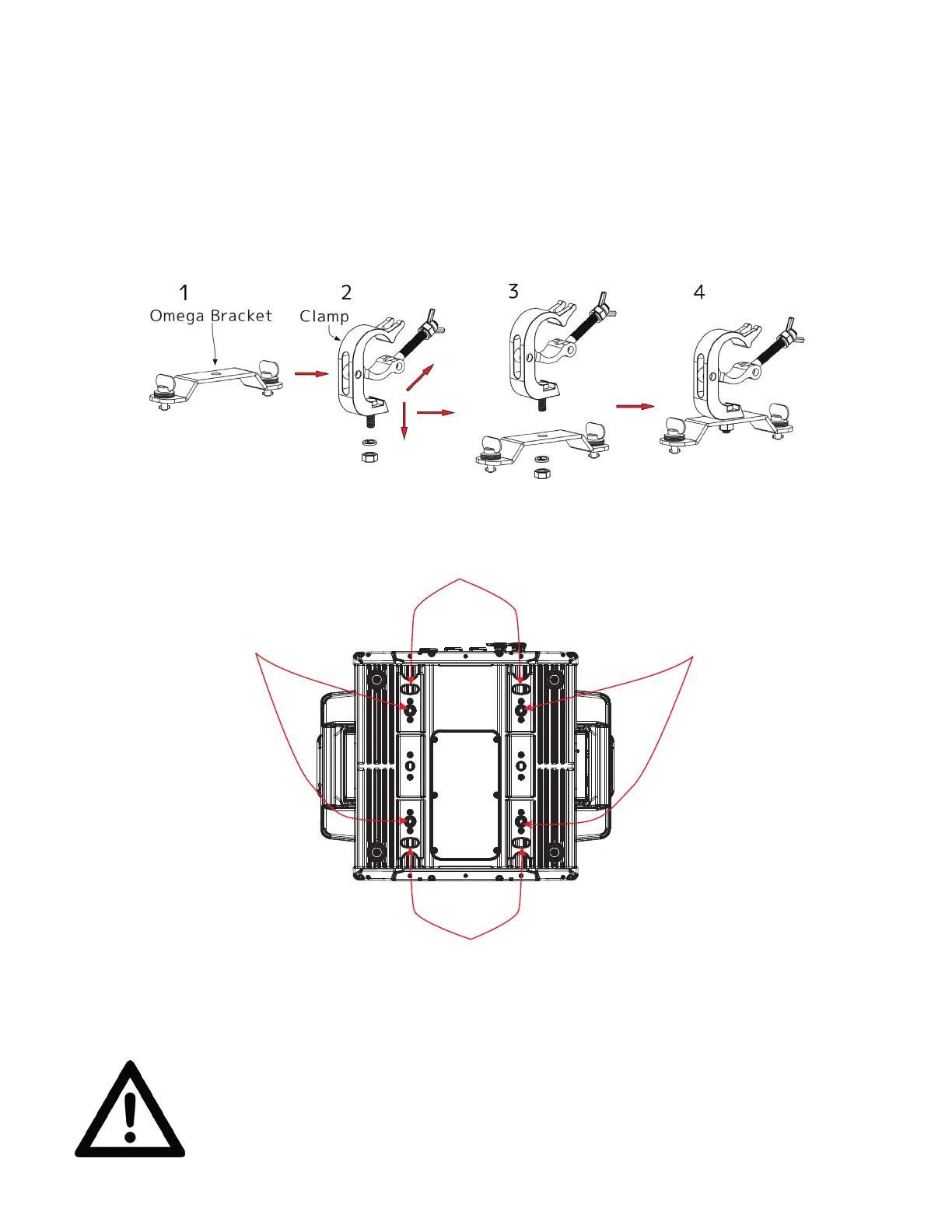

When mounting the fixture to a truss using Omega brackets, first attach a mounting clamp
to each Omega bracket using an M10 screw inserted through the center hole of each Omega
bracket (see top illustration). Then, insert the Omega Brackets into the outer mounting holes
on the underside of the fixture (see lower illustation). Secure the Omega Brackets to the fix-
ture by turning each quick-lock fastener ¼ turn clockwise. Always check to make sure that
each fastener is completely locked.
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE
IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL
NOT FALL IF THE CLAMP FAILS. ONLY USE DESIGNATED RIGGING POINTS
FOR SAFETY CABLE, AND NEVER ATTACH A SAFELY CABLE TO A CARRY-
ING HANDLE.
Safety
Cable
Loops
Insert Omega
Bracket Twist
Locks Here
Insert Omega
Bracket Twist
Locks Here
Safety
Cable
Loops
