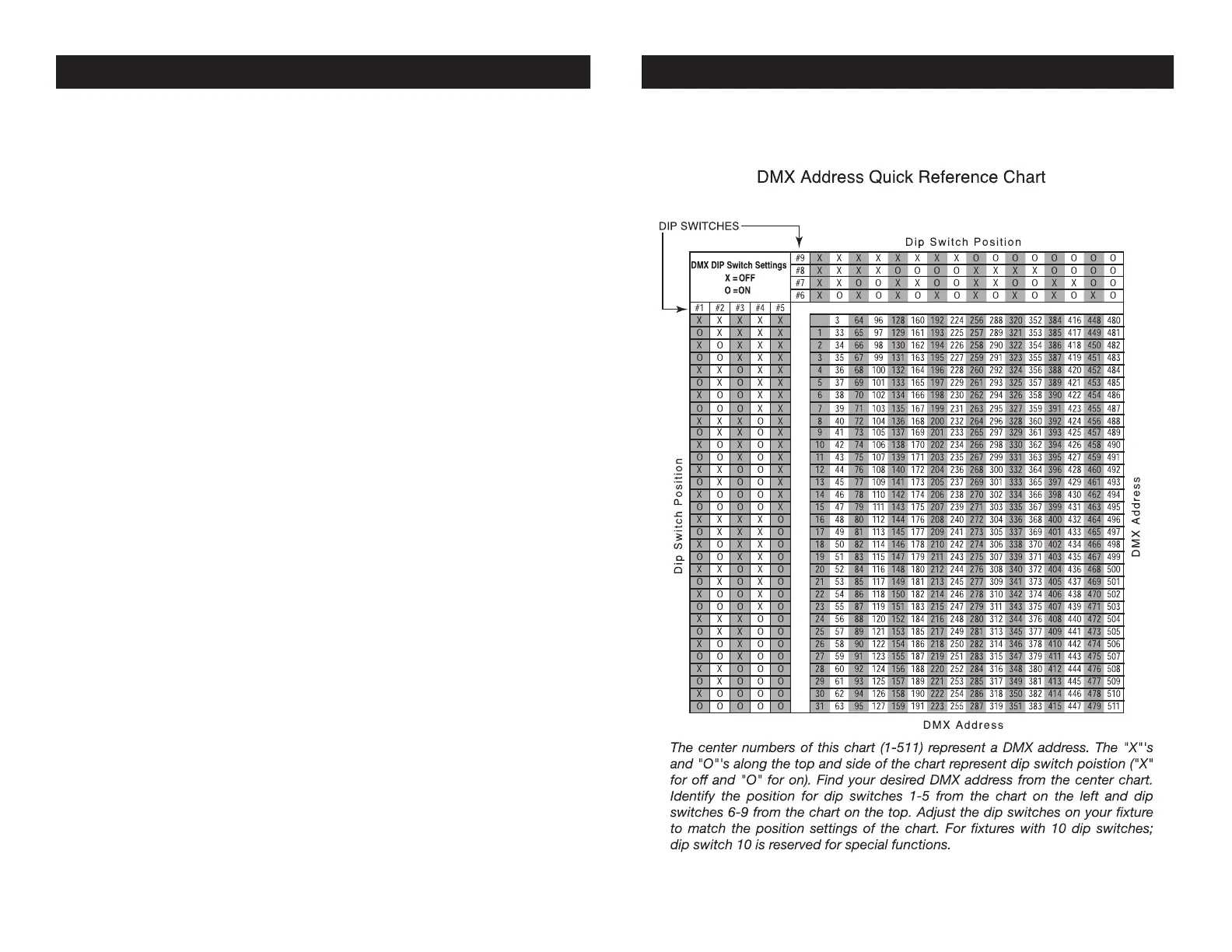

This chart list the DMX dipswitch setting for DMX address 1 through
511. Follow the instructions below to configure fixture dipswitches
with your desired DMX address.
Protron Star™ DMX Address Chart
©Elation Professional® - www.elationlighting.com - Protron Star™ Instruction Manual Page 12
3. Located on each side of the lamp are white ceramic wire con-
nection blocks.
4. The ceramic block on the left side has two lamp wires connected
to it, they are secured by one phillips screw each. On the right
side only one lamp wire is connected to a ceramic block.
5. NOTICE: When you disconnect the lamp wires to replace the
lamp, you will have to remember which wire went where. They
must be connected the same.
6. Replace the lamp with an exact match. Connect the three wires to
the ceramic blocks as they were when you disconnected them.
7. Reassemble in reverse order.
Protron Star™ Fuse and Lamp Replacement
©Elation Professional® - www.elationlighting.com - Protron Star™ Instruction Manual Page 11
