Signal Select
DMX/MIDI
Ch.1 Ch.2
D/S
Ch.3
Mode
Ch.4
Preset
MIDI
Master
DMX
Signal
Manual Dimmer
Manual Program
Auto Program
Hold Sound
Prog Sound
Auto Sound
Audio Sen.
MaxMin
1 2 3 4F
Stand By
3. Technical Specifications
Power Input ...................................................... AC 120V~50-60Hz
Channel Output ...................................................10A/CH., Total 20A
DMX In/Out .............................. 3 pin female & male XLR socket x1
MIDI In/Thru ..................................................... 5 pin multiple socket
Channel Fuse ..................................... F10A 250V 5x20mm (x4PCS)
Dimensions .............................................................. 1320x60x80mm
Weight(approx) ........................................................................ 4.3 kg
2.8 Link Up
2.9 Initialization
2. Operation Guide
Several units can be linked up using DMX cables. When linking, make sure only
one unit works in Master mode, and the other units will work depending on the
master unit.

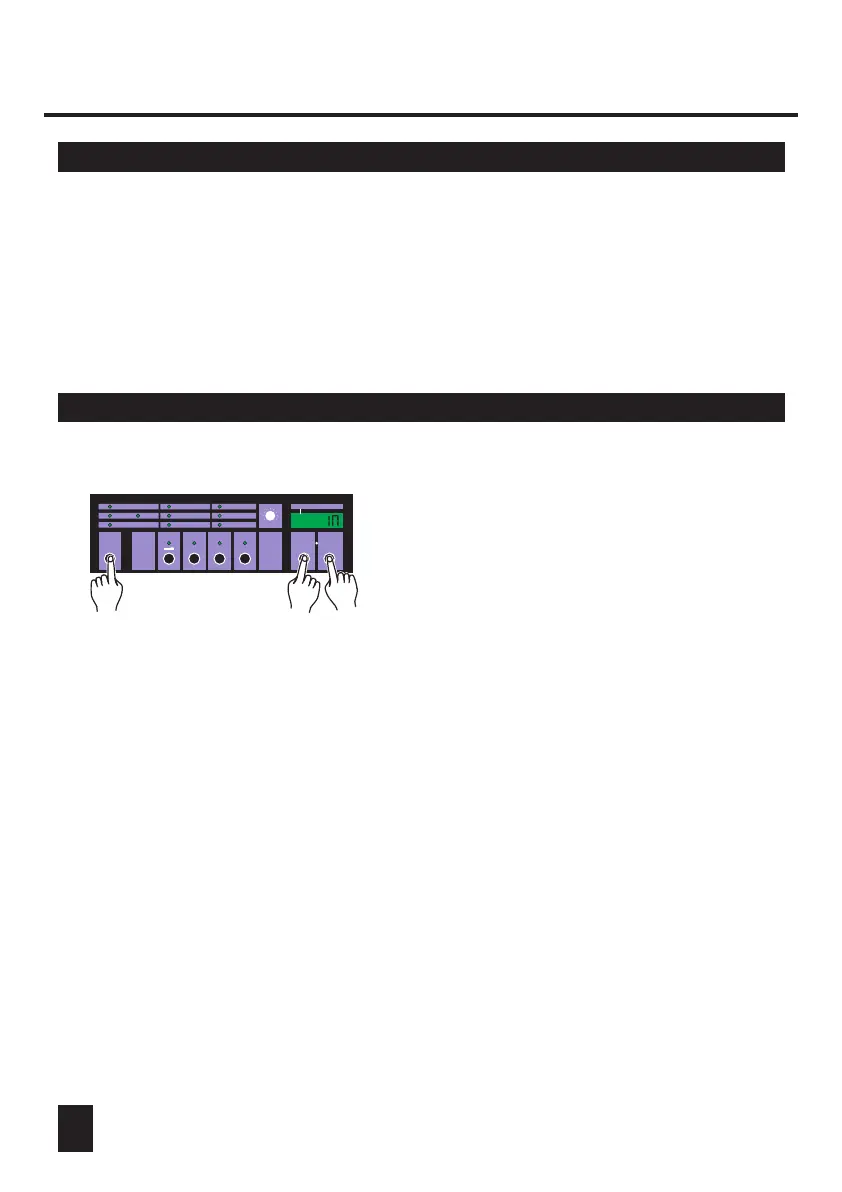

Press F, Signal Select and DMX/ MIDI buttons
at a time, this unit will initialize its memory, the
Segment Display goes out. Release all three
buttons, this unit will return to default setting, the
Segment Display shows "IN", and Manual Dimmer
LED is on.
11 12
