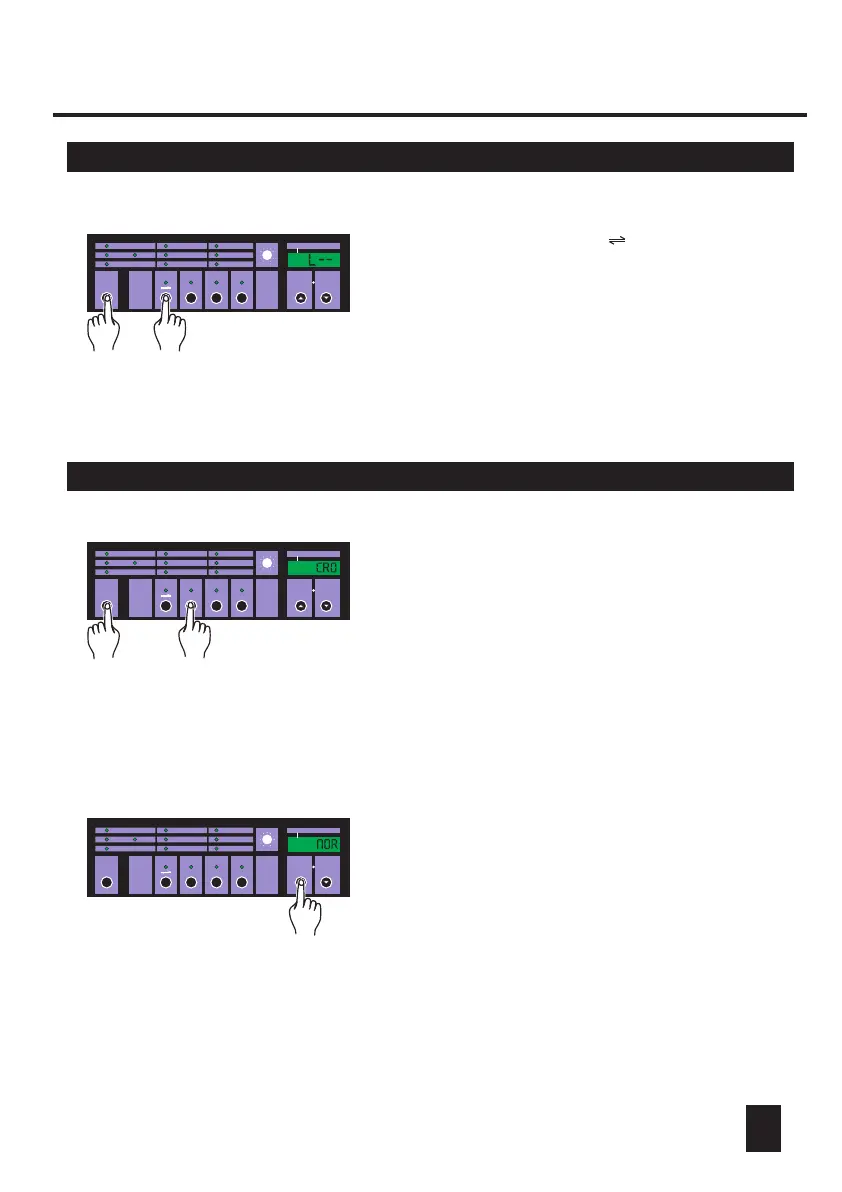

2.6 Chase Direction
2.7 Cross and Normal Dimmer
2. Operation Guide
Keep pressing F button, tap button to select
chase direction, the Segment Display shows
"L--" or "R--". "L--" indicates the programs will
chase from left to right, and "R--" indicates the
programs will chase from right to left.
Keep pressing F button, tap D/S button to select
dimmer mode from Cross / Normal dimmer.
The Segment Display shows "CRO" when cross
dimmer is active. In Cross mode, if channel intensity
is 50%(>50%) , the fixture will be fully on; if channel
intensity is less than 50%, the fixture will be fully off.
The Segment Display shows "NOR" when normal
dimmer is active. In Normal mode, you can adjust
the intensity using UP/DOWN button.
2. Operation Guide
2.5 Preset Functions
Master
Dimmer
or
Channel
Dimmer
Preheat
Program
Speed
MIDI
Channel
The Segment Display shows "d"
followed by three numbers 000-
100. Tap Up/Down button to
adjust intensity from fully off(000)
to fully on(100).
The Segment Display shows "E"
followed by two numbers 00-25.
Tap Up/Down button to adjust from
0% intensity to 25% intensity.
The Segment Display shows "CH"
followed by two numbers 01-16.
Tap Up/Down button to select
your desired MIDI Channel.
The Segment Display shows "P"
followed by two numbers 01-16.
Tap Up/Down button to select
desired chase program.
The Segment Display shows "SP"
followed by two numbers 01-99.
Tap Up/Down button to select
desired chase speed. 01 will give
a slowest speed, 99 will give a
fastest speed.
E:00
sp:0i
