21
EDIT PROGRAM – Record Controller – Working With Built-In Program [continued]
Example:
Program 2 includes scenes: 10, 11, 12, & 13
Program 4 includes scenes: 8, 9, & 10
Program 6 includes scenes: 12, 13, 14, & 15
Auto Pro Part 1 is Program 2
Auto Pro Part 2 is Program 3
Auto Pro Part 3 is Program 6

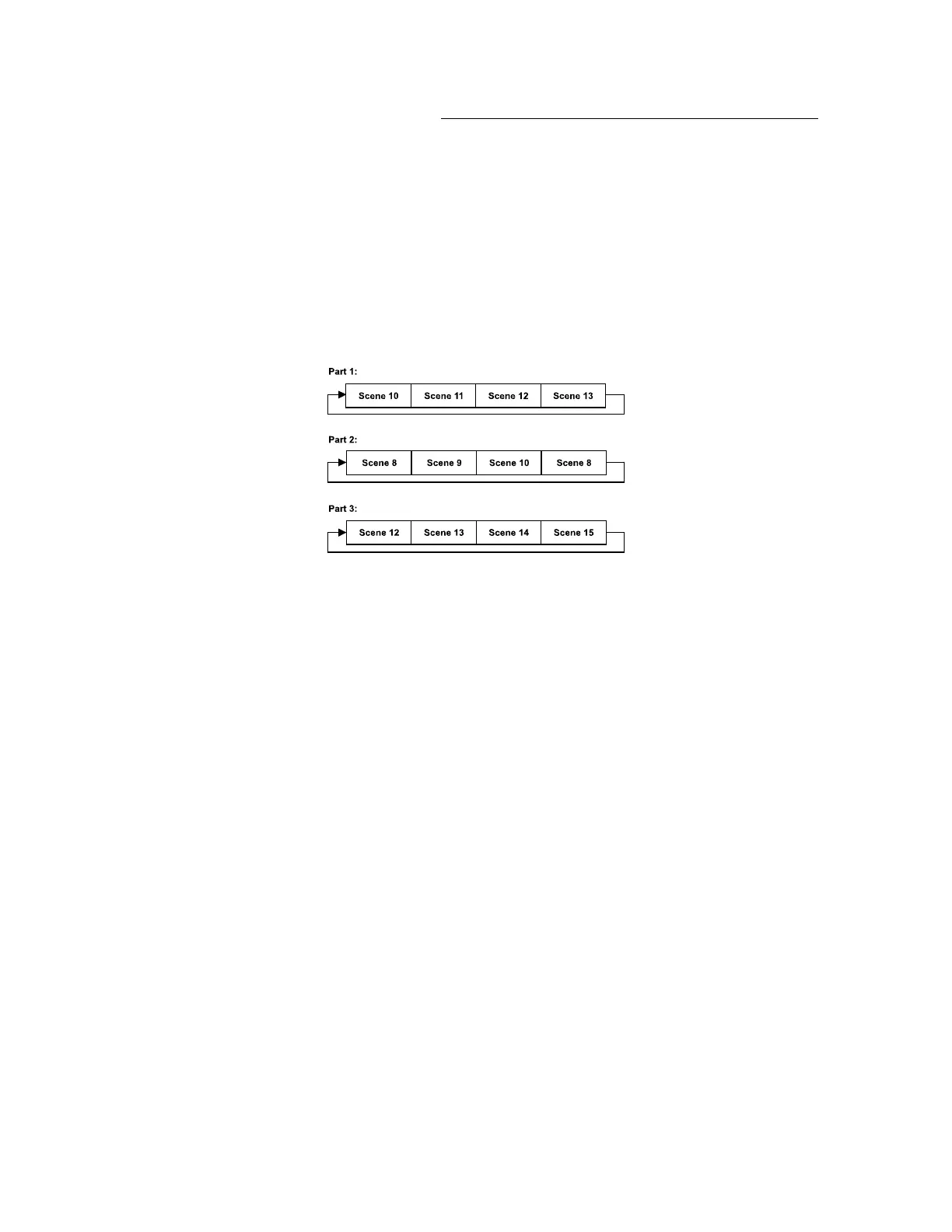

The 3 secondary groups run the Auto Program in certain time segments. (See diagram below)
WHITE BALANCE SETTING
This feature provides the ability to individually adjust the maximum dimmer intensity for
each LED color (Red, Green, Blue, White, Amber, Cyan, U.V.) and store these values as a
White Balance preset. This can be a useful tool when the output intensity of a group of
same model fixtures with varying usage times, needs to be calibrated to match as much as
possible. Once a new White Balance preset is saved to the fixture, the maximum dimmer
intensity values cannot be changed until the White Balance preset is updated, erased or
restored to the factory default setting.
1. Make sure all channels are set to zero (0), then set the EDIT and SAVE WHITE
BALANCE ENABLED channel (CH24 in Basic Mode, CH31 in Stand Mode, CH40 in
Extend Mode) to DMX value of (91-93).
2. Set the EDIT a New WHITE BALANCE Setting channel (CH22 in Basic Mode, CH29 in
Stand Mode, CH38 in Extend Mode) to DMX value of (190-254).
3. Adjust each LED color channel to the desired intensity level (0-255).
4. Set the SAVE a New WHITE BALANCE channel (CH22 in Basic Mode, CH29 in Stand
Mode, CH38 in Extend Mode) to DMX value of (255) to save the new preset.
5. To save a new White Balance preset, repeat steps 1-4 above.
