17
EDIT PROGRAM – Record Controller
The fixture features an integrated DMX-recorder by which you can transmit the
programmed scenes from your DMX-controller to the moving head. Adjust the
desired scene numbers via the encoder (from – to). When you call up the scenes at
your controller, they will automatically be transmitted to the moving head.
EDIT PROGRAM – Record Controller – Working With Built In Programs

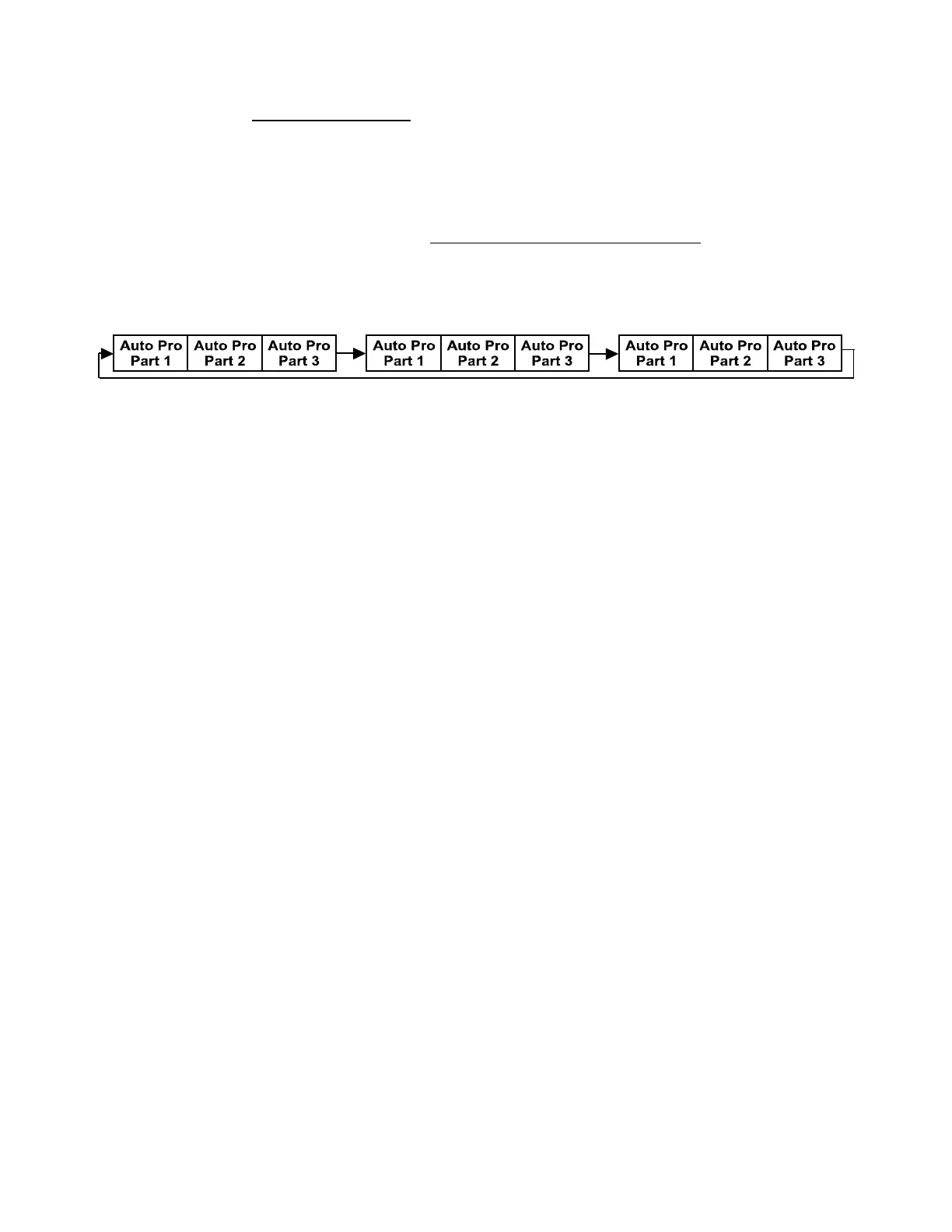

A Primary unit can send up to 3 different data groups to the Secondary units, i.e. a
Primary unit can start 3 different Secondary units, which run 3 different programs. The
Primary unit sends the 3 program parts in a continuous loop.
The Secondary unit receives data from the Primary unit according to the group
which the Secondary unit was assigned to. If e.g. a Secondary unit is set to
“Secondary 1” in the menu “Set to Secondary”, the Primary unit sends “Auto
Program Part 1” to the Secondary unit. If set to “Secondary 2”, the Secondary unit
receives “Auto Program Part 2”.
To start an Auto Program proceed as follows:
1. Secondary Setting
• Select “Function Mode”.
• Press ENTER to confirm.
• Select “Set to Secondary”.
• Press ENTER to confirm.
• Select “Secondary 1”, “Secondary 2” or “Secondary 3”.
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.
2. Automatic Program Run
• Select “Function Mode”.
• Press ENTER to confirm.
• Select “Auto Program”.
• Press ENTER to confirm.
• Select “Primary” or “Alone”.
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.
