AR-32 User Manual
16 Elation Professional ®
6.1 AR-32C Controls & Connections

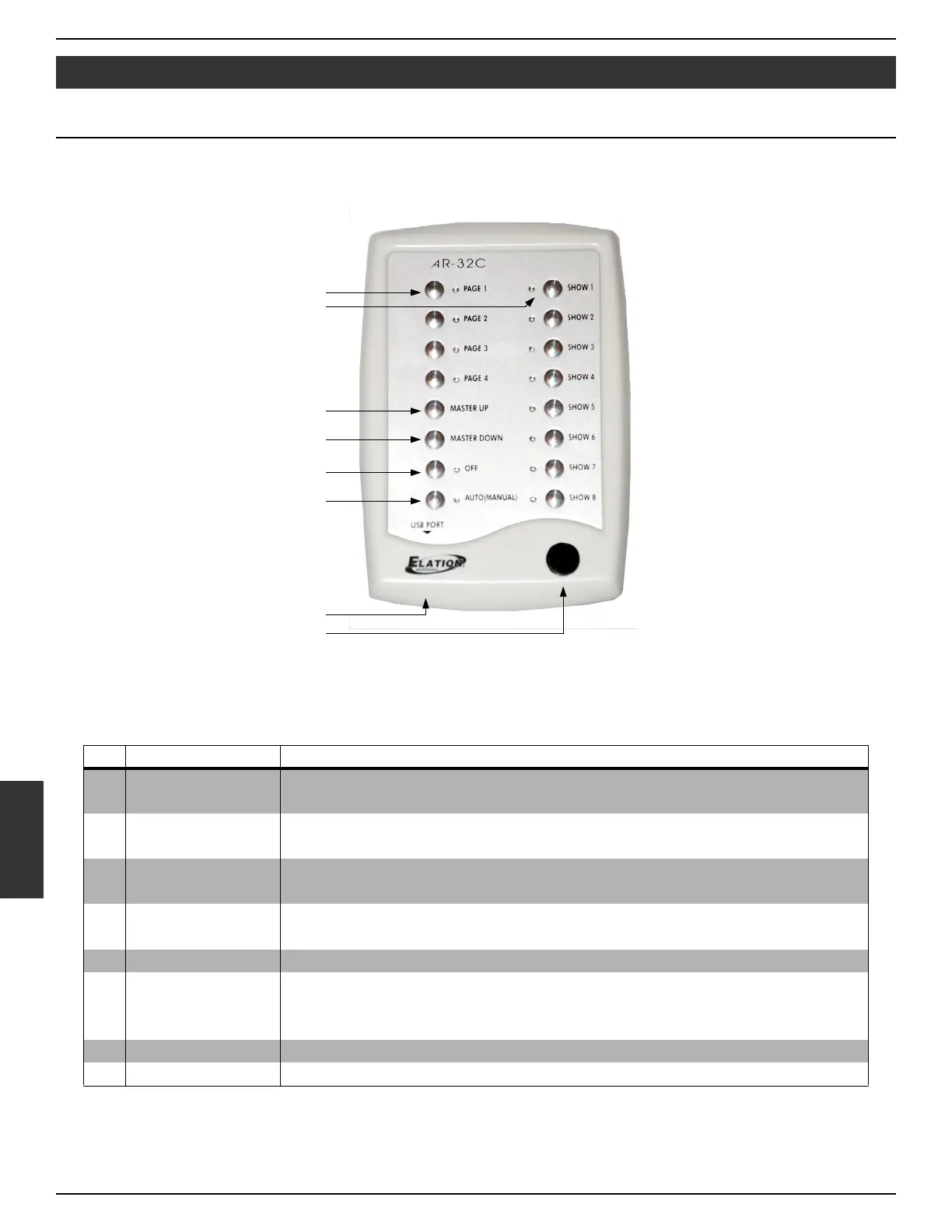

The AR-32C Controller (Figure 8) has the following controls and connections. Each is described in Table 1.
Figure 8
Table 1
No. Name Description
1 [PAGE] [PAGE] buttons (1-4) allow user to select from four pages (banks) of shows.
Indicator (blue LED) shows selected page
2 [SHOW] [SHOW] buttons (1-8) allow user to select individual scenes within a selected page.
Indicator (blue LED) shows selected show.
3 [MASTER UP] [MASTER UP] button offers intensity control by increasing all 512 DMX channel
values from 0-255 or 0-100%.
4 [MASTER DOWN] [MASTER DOWN] button offers intensity control by decreasing all 512 DMX
channel values from 255-0 or 100-0%.
5 [OFF] [OFF] button turns the system off. Indicator (blue LED) shows system is off.
6 [AUTO/
MANUAL]
[AUTO/MANUAL] button toggles between Automatic and Manual operation
modes when held for 2 seconds. Indicator shows Automatic (red LED) or Manual
(blue LED) modes.
7 USB Port USB port allows connection to a PC with AR-32 software.
8 IR Sensor IR sensor receives signals from AR-32 IR remote.
