www.elationlighting.com 15
5.4 Setup Procedures
5.4.1 Software Installation
Install the AR-32 System Control Software as follows:
1. Insert the AR-32 System Control Software CD into a CD drive on PC.
2. Locate the AR-32 SetupRevX.XX.exe application (Figure 7) on the CD and double-click to begin
installation.

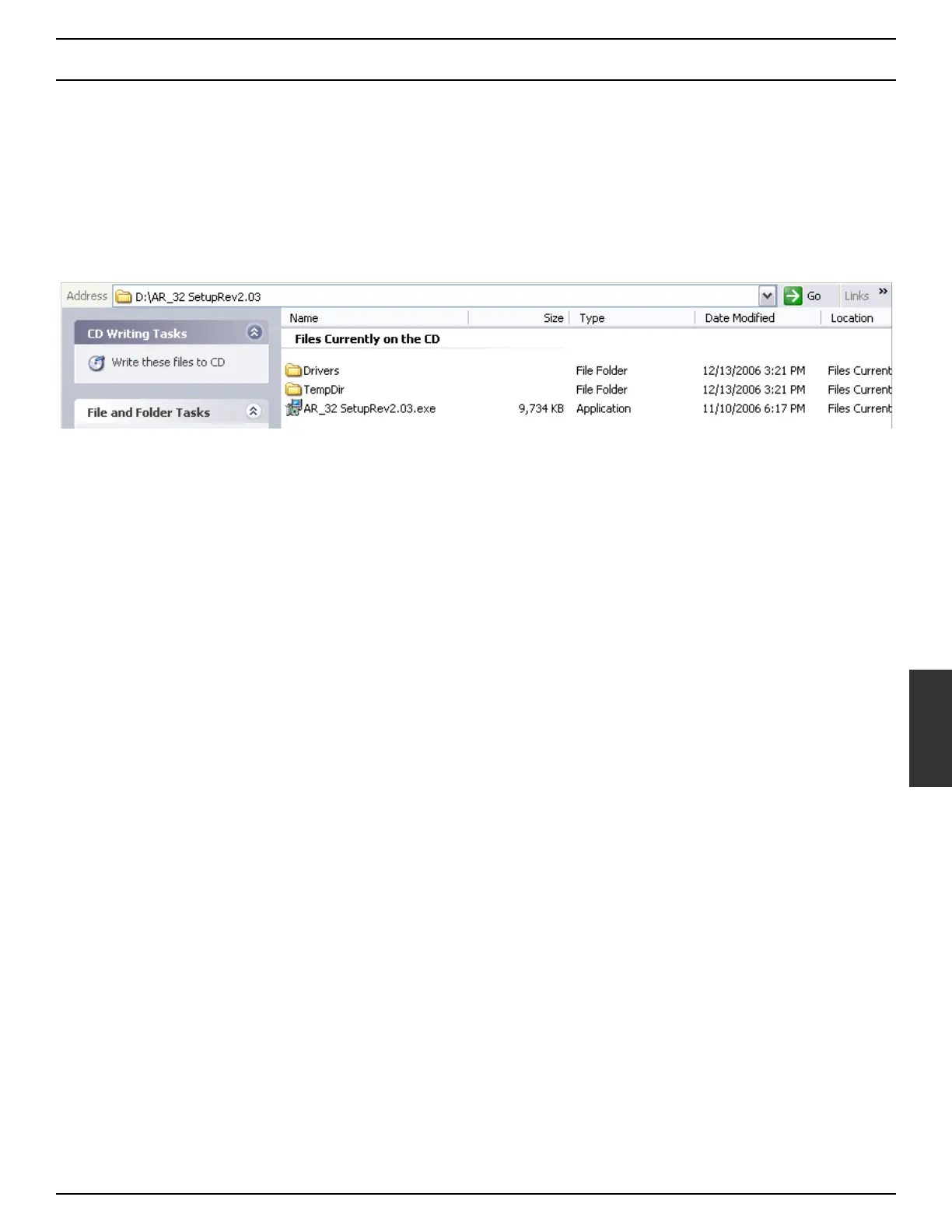

Figure 7
3. Follow the prompts to complete install.
5.4.2 System Connection
To set up the AR-32 Architectural Recorder System for operation, connect the system components together as
follows:
1. Connect the AR-32C Controller and AR-32P DMX Interface using Category 5 Ethernet LAN Cable.
2. Plug the AR-32P power cable into a 120VAC – 60Hz receptacle. Activate the [POWER] switch on the
front of the AR-32P.
3. Connect DMX source (such as a console or other controller) to the DMX IN on the AR-32P.
4. Connect DMX fixtures to the DMX OUT on the AR-32P.
5. Complete software installation before performing this step. To configure the AR-32 system, connect
the AR-32C to a PC using the USB link cable. Windows will prompt for driver installation.
5.4.3 Software Launch
Launch the AR-32 System Control Software as follows:
1. From the Windows desktop, select Start > Programs > Elation AR-32 > AR-32.
5
